Element diggs:AbstractObjectType / diggs:remark
Namespace http://diggsml.org/schema-dev
Annotations

Any comment or remark associated with this specific
feature, the person or organization making the comment, and the time
comment was made.Any comment or remark associated with this specific
feature, the person or organization making the comment, and the time
comment was made.

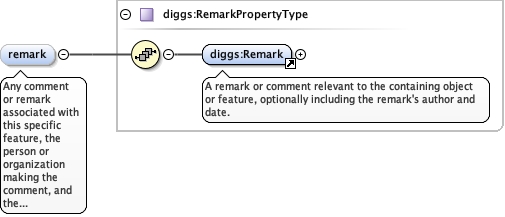

Diagram
DiagramKernel_xsd_Element_diggs_Remark.tmp#RemarkKernel_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Any comment or remark associated with this specific feature, the person or organization making the comment, and the time comment was made.Any comment or remark associated with this specific feature, the person or organization making the comment, and the time comment was made.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractObjectType
Namespace http://diggsml.org/schema-dev

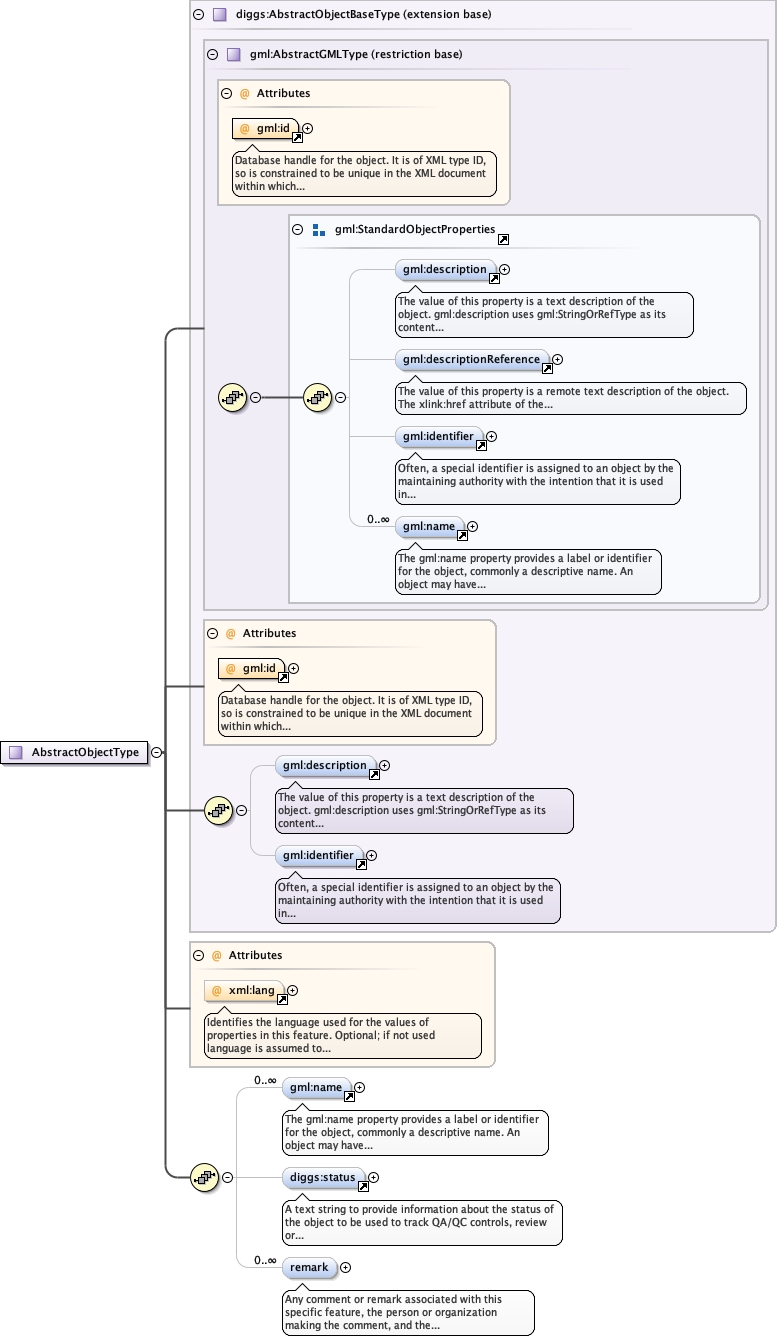

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remark
Type extension of diggs:AbstractObjectBaseType
Type hierarchy
Properties
abstract true
Used by
Complex Types diggs:AbstractEventType, diggs:AbstractProcedureTrialType, diggs:AdditionEventType, diggs:AdvancementType, diggs:BackfillLayerType, diggs:BackfillType, diggs:BoreholeDiameterType, diggs:BoundaryType, diggs:CasingAdvancementType, diggs:CasingType, diggs:ChainOfCustodyEventType, diggs:ChiselingType, diggs:ComponentLithologyType, diggs:ContainerType, diggs:ContinuousGroutInjectionPropType, diggs:ContinuousGroutingType, diggs:CushionType, diggs:DelayEventType, diggs:DetectorType, diggs:DriveRecordPropType, diggs:EnvironmentType, diggs:FilterInfoType, diggs:FlowReadingType, diggs:FluidAdditiveType, diggs:FlushType, diggs:FractureObservationType, diggs:FractureSpacingType, diggs:GP_DetectorType, diggs:GradingType, diggs:GroutConstructionSpecificationType, diggs:GroutInjectionPropType, diggs:GroutSpecimenConditionsType, diggs:GroutStageType, diggs:GroutingFluidType, diggs:HeatingCycleParametersType, diggs:HydrometerType, diggs:IntactSpecimenPreparationInfoType, diggs:LabCBRTestTrialType, diggs:LabCompactionTestTrialType, diggs:LimitType, diggs:LinkedWSReadingType, diggs:LocationUncertaintyType, diggs:LugeonStepDataPropType, diggs:LugeonStepType, diggs:MCVTestTrialType, diggs:MaterialTestResultType, diggs:MembraneInfoType, diggs:ObjectNoDescriptionType, diggs:OrientationType, diggs:PDARecordPropType, diggs:PanDataType, diggs:PlssType, diggs:PorePressureDissipationPropType, diggs:PorePressureElementType, diggs:PressuremeterTestTrialType, diggs:PumpingTestReadingType, diggs:ReadingType, diggs:ReceiverLocationsType, diggs:ReconstitutedSpecimenPreparationInfoType, diggs:SampleProducedType, diggs:SedimentationType, diggs:ShrinkageLimitTrialType, diggs:SieveAnalysisType, diggs:SizeFractionType, diggs:SourceLocationsType, diggs:SpecimenConditionsType, diggs:SyneresisPropType, diggs:TemperatureMeasurementType, diggs:TerminationCriteriaType, diggs:TimeIntervalType, diggs:TimeSeriesTrialType, diggs:UncertaintyType, diggs:VaneTestMeasurementDataType, diggs:WaterStrikeReadingType, diggs:WaterStrikeType, diggs:WellOpeningType, diggs_geo:FilterInfoType, diggs_geo:GradingType, diggs_geo:HeatingCycleParametersType, diggs_geo:HydrometerType, diggs_geo:LabCBRTestTrialType, diggs_geo:LabCompactionTestTrialType, diggs_geo:MembraneInfoType, diggs_geo:PanDataType, diggs_geo:PorePressureDissipationPropType, diggs_geo:PorePressureElementType, diggs_geo:SedimentationType, diggs_geo:ShrinkageLimitTrialType, diggs_geo:SieveAnalysisType, diggs_geo:VaneTestMeasurementDataType
Element diggs:AbstractObject
Model
Children diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractObjectType" abstract="true">
  <complexContent>
    <extension base="diggs:AbstractObjectBaseType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:name"/>
        <element minOccurs="0" ref="diggs:status">
          <annotation>
            <documentation>A text string to provide information about the status of the object to be used to track QA/QC controls, review or release status, etc. The values used are intended to come from a controlled list of terms maintained by an organization.</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>Any comment or remark associated with this specific feature, the person or organization making the comment, and the time comment was made.Any comment or remark associated with this specific feature, the person or organization making the comment, and the time comment was made.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute ref="xml:lang">
        <annotation>
          <documentation>Identifies the language used for the values of properties in this feature. Optional; if not used language is assumed to be English.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
