Showing:

Annotations
Attributes
Diagrams
Instances
Model
Properties
Source
Element diggs:AbstractObject
Namespace http://diggsml.org/schema-dev
Annotations

Base type for DIGGS objects - extension of gml:AbstractGML with status
and remark properties.

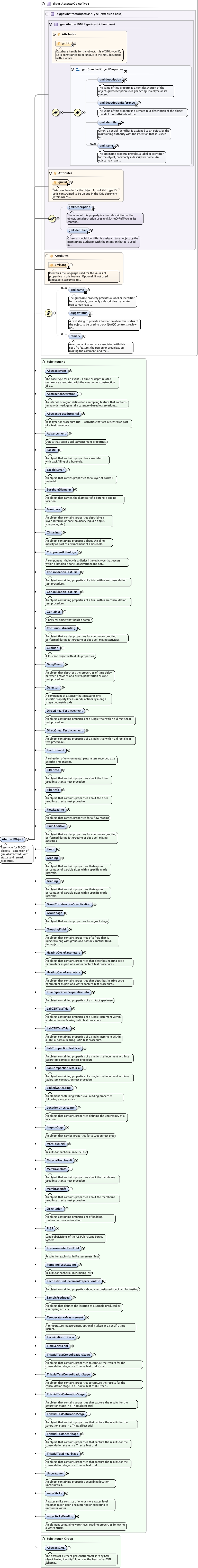

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Element_diggs_AbstractEvent.tmp#AbstractEventKernel_xsd_Element_diggs_AbstractObservation.tmp#AbstractObservationKernel_xsd_Element_diggs_AbstractProcedureTrial.tmp#AbstractProcedureTrialKernel_xsd_Element_diggs_Advancement.tmp#AdvancementKernel_xsd_Element_diggs_Backfill.tmp#BackfillKernel_xsd_Element_diggs_BackfillLayer.tmp#BackfillLayerKernel_xsd_Element_diggs_BoreholeDiameter.tmp#BoreholeDiameterKernel_xsd_Element_diggs_Boundary.tmp#BoundaryDeprecated_xsd_Element_diggs_Chiseling.tmp#ChiselingKernel_xsd_Element_diggs_ComponentLithology.tmp#ComponentLithologyDiggs_procedures_temp_xsd_Element_diggs_ConsolidationTestTrial.tmp#http___diggsml.org_schema-dev_ConsolidationTestTrialDiggs_geo_deprecated_xsd_Element_diggs_geo_ConsolidationTestTrial.tmp#ConsolidationTestTrialKernel_xsd_Element_diggs_Container.tmp#ContainerConstruction_xsd_Element_diggs_ContinuousGrouting.tmp#ContinuousGroutingPiling_xsd_Element_diggs_Cushion.tmp#CushionKernel_xsd_Element_diggs_DelayEvent.tmp#DelayEventKernel_xsd_Element_diggs_Detector.tmp#DetectorTestProcedures_xsd_Element_diggs_DirectShearTestIncrement.tmp#http___diggsml.org_schema-dev_DirectShearTestIncrementGeotechnical_xsd_Element_diggs_geo_DirectShearTestIncrement.tmp#DirectShearTestIncrementKernel_xsd_Element_diggs_Environment.tmp#EnvironmentDiggs_procedures_temp_xsd_Element_diggs_FilterInfo.tmp#http___diggsml.org_schema-dev_FilterInfoDiggs_geo_deprecated_xsd_Element_diggs_geo_FilterInfo.tmp#FilterInfoConstruction_xsd_Element_diggs_FlowReading.tmp#FlowReadingConstruction_xsd_Element_diggs_FluidAdditive.tmp#FluidAdditiveKernel_xsd_Element_diggs_Flush.tmp#FlushTestProcedures_xsd_Element_diggs_Grading.tmp#http___diggsml.org_schema-dev_GradingGeotechnical_xsd_Element_diggs_geo_Grading.tmp#GradingConstruction_xsd_Element_diggs_GroutConstructionSpecification.tmp#GroutConstructionSpecificationConstruction_xsd_Element_diggs_GroutStage.tmp#GroutStageConstruction_xsd_Element_diggs_GroutingFluid.tmp#GroutingFluidTestProcedures_xsd_Element_diggs_HeatingCycleParameters.tmp#http___diggsml.org_schema-dev_HeatingCycleParametersGeotechnical_xsd_Element_diggs_geo_HeatingCycleParameters.tmp#HeatingCycleParametersKernel_xsd_Element_diggs_IntactSpecimenPreparationInfo.tmp#IntactSpecimenPreparationInfoTestProcedures_xsd_Element_diggs_LabCBRTestTrial.tmp#http___diggsml.org_schema-dev_LabCBRTestTrialGeotechnical_xsd_Element_diggs_geo_LabCBRTestTrial.tmp#LabCBRTestTrialTestProcedures_xsd_Element_diggs_LabCompactionTestTrial.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialGeotechnical_xsd_Element_diggs_geo_LabCompactionTestTrial.tmp#LabCompactionTestTrialKernel_xsd_Element_diggs_LinkedWSReading.tmp#LinkedWSReadingKernel_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyConstruction_xsd_Element_diggs_LugeonStep.tmp#LugeonStepBetaProcedures_xsd_Element_diggs_MCVTestTrial.tmp#MCVTestTrialConstruction_xsd_Element_diggs_MaterialTestResult.tmp#MaterialTestResultDiggs_procedures_temp_xsd_Element_diggs_MembraneInfo.tmp#http___diggsml.org_schema-dev_MembraneInfoDiggs_geo_deprecated_xsd_Element_diggs_geo_MembraneInfo.tmp#MembraneInfoKernel_xsd_Element_diggs_Orientation.tmp#OrientationKernel_xsd_Element_diggs_PLSS.tmp#PLSSBetaProcedures_xsd_Element_diggs_PressuremeterTestTrial.tmp#PressuremeterTestTrialBetaProcedures_xsd_Element_diggs_PumpingTestReading.tmp#PumpingTestReadingKernel_xsd_Element_diggs_ReconstitutedSpecimenPreparationInfo.tmp#ReconstitutedSpecimenPreparationInfoKernel_xsd_Element_diggs_SampleProduced.tmp#SampleProducedKernel_xsd_Element_diggs_TemperatureMeasurement.tmp#TemperatureMeasurementConstruction_xsd_Element_diggs_TerminationCriteria.tmp#TerminationCriteriaConstruction_xsd_Element_diggs_TimeSeriesTrial.tmp#TimeSeriesTrialDiggs_procedures_temp_xsd_Element_diggs_TriaxialTestConsolidationStage.tmp#http___diggsml.org_schema-dev_TriaxialTestConsolidationStageDiggs_geo_deprecated_xsd_Element_diggs_geo_TriaxialTestConsolidationStage.tmp#TriaxialTestConsolidationStageDiggs_procedures_temp_xsd_Element_diggs_TriaxialTestSaturationStage.tmp#http___diggsml.org_schema-dev_TriaxialTestSaturationStageDiggs_geo_deprecated_xsd_Element_diggs_geo_TriaxialTestSaturationStage.tmp#TriaxialTestSaturationStageDiggs_procedures_temp_xsd_Element_diggs_TriaxialTestShearStage.tmp#http___diggsml.org_schema-dev_TriaxialTestShearStageDiggs_geo_deprecated_xsd_Element_diggs_geo_TriaxialTestShearStage.tmp#TriaxialTestShearStageKernel_xsd_Element_diggs_Uncertainty.tmp#UncertaintyKernel_xsd_Element_diggs_WaterStrike.tmp#WaterStrikeKernel_xsd_Element_diggs_WaterStrikeReading.tmp#WaterStrikeReadinggml3_2Profile_diggs_xsd_Element_gml_AbstractGML.tmp#AbstractGML
Type diggs:AbstractObjectType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Model
Children diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractObject gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
</diggs:AbstractObject>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element abstract="true" name="AbstractObject" substitutionGroup="gml:AbstractGML" type="diggs:AbstractObjectType">
  <annotation>
    <documentation>Base type for DIGGS objects - extension of gml:AbstractGML with status and remark properties.</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
