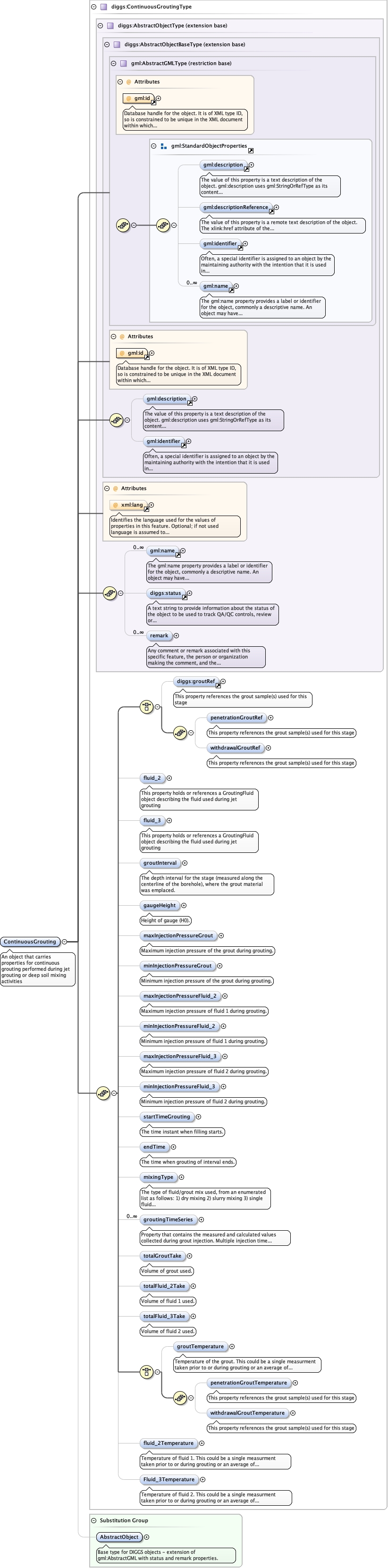

Schema documentation for component diggs:ContinuousGrouting

<diggs:ContinuousGrouting gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:groutRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:groutRef>
  <diggs:penetrationGroutRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:penetrationGroutRef>
  <diggs:withdrawalGroutRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:withdrawalGroutRef>
  <diggs:fluid_2 xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:fluid_2>
  <diggs:fluid_3 xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:fluid_3>
  <diggs:groutInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:groutInterval>
  <diggs:gaugeHeight uom="">{0,1}</diggs:gaugeHeight>
  <diggs:maxInjectionPressureGrout sensorLocation="" type="" uom="">{0,1}</diggs:maxInjectionPressureGrout>
  <diggs:minInjectionPressureGrout sensorLocation="" type="" uom="">{0,1}</diggs:minInjectionPressureGrout>
  <diggs:maxInjectionPressureFluid_2 sensorLocation="" type="" uom="">{0,1}</diggs:maxInjectionPressureFluid_2>
  <diggs:minInjectionPressureFluid_2 sensorLocation="" type="" uom="">{0,1}</diggs:minInjectionPressureFluid_2>
  <diggs:maxInjectionPressureFluid_3 sensorLocation="" type="" uom="">{0,1}</diggs:maxInjectionPressureFluid_3>
  <diggs:minInjectionPressureFluid_3 sensorLocation="" type="" uom="">{0,1}</diggs:minInjectionPressureFluid_3>
  <diggs:startTimeGrouting xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:startTimeGrouting>
  <diggs:endTime xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:endTime>
  <diggs:mixingType>{0,1}</diggs:mixingType>
  <diggs:groutingTimeSeries>{0,unbounded}</diggs:groutingTimeSeries>
  <diggs:totalGroutTake uom="">{0,1}</diggs:totalGroutTake>
  <diggs:totalFluid_2Take uom="">{0,1}</diggs:totalFluid_2Take>
  <diggs:totalFluid_3Take uom="">{0,1}</diggs:totalFluid_3Take>
  <diggs:groutTemperature uom="">{0,1}</diggs:groutTemperature>
  <diggs:penetrationGroutTemperature uom="">{0,1}</diggs:penetrationGroutTemperature>
  <diggs:withdrawalGroutTemperature uom="">{0,1}</diggs:withdrawalGroutTemperature>
  <diggs:fluid_2Temperature uom="">{0,1}</diggs:fluid_2Temperature>
  <diggs:Fluid_3Temperature uom="">{0,1}</diggs:Fluid_3Temperature>
</diggs:ContinuousGrouting>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element name="ContinuousGrouting" substitutionGroup="diggs:AbstractObject" type="diggs:ContinuousGroutingType"> <annotation> <documentation>An object that carries properties for continuous grouting performed during jet grouting or deep soil mixing activities</documentation> </annotation> </element>
