Schema documentation for component gml:AbstractGMLType

Showing:

Attributes

Diagrams

Model

Properties

Source

Used by

Complex Type gml:AbstractGMLType

Namespace

http://www.opengis.net/gml/3.2

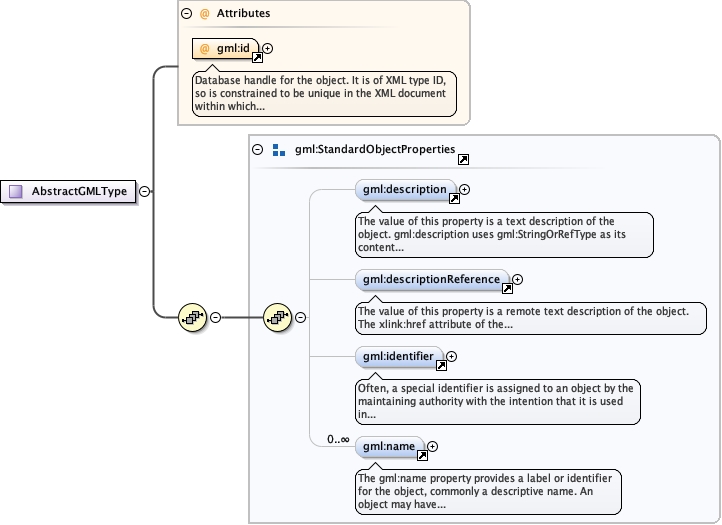

Diagram

Properties

abstract

true

Used by

Complex Types	diggs:AbstractObjectBaseType, glr:LinearReferencingMethodType, gml:AbstractFeatureType, gml:AbstractGeometryType, gml:AbstractTimeObjectType, gml:CompositeValueType, gml:DefinitionBaseType
Element	gml:AbstractGML

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*

Children

gml:description, gml:descriptionReference, gml:identifier, gml:name

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="AbstractGMLType" abstract="true">
  <sequence>
    <group ref="gml:StandardObjectProperties"/>
  </sequence>
  <attribute ref="gml:id" use="required"/>
</complexType>
