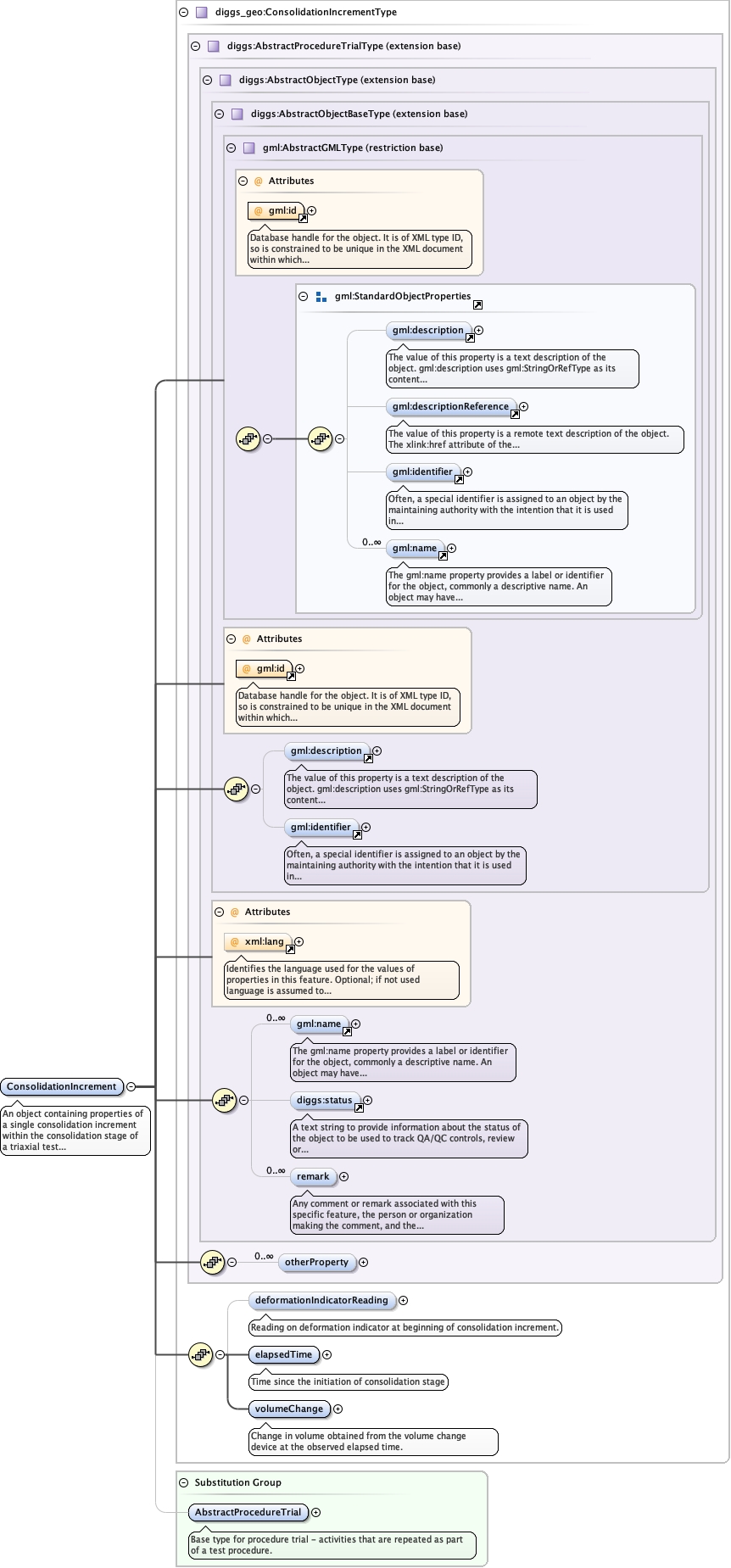

Schema documentation for component diggs_geo:ConsolidationIncrement

<diggs_geo:ConsolidationIncrement gml:id="" xml:lang="" xmlns:diggs_geo="http://diggsml.org/schema-dev/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schema-dev"> <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description> <gml:identifier codeSpace="">{0,1}</gml:identifier> <gml:name codeSpace="">{0,unbounded}</gml:name> <diggs:status codeSpace="">{0,1}</diggs:status> <diggs:remark>{0,unbounded}</diggs:remark> <diggs:otherProperty>{0,unbounded}</diggs:otherProperty> <diggs_geo:deformationIndicatorReading uom="">{0,1}</diggs_geo:deformationIndicatorReading> <diggs_geo:elapsedTime uom="">{1,1}</diggs_geo:elapsedTime> <diggs_geo:volumeChange uom="">{1,1}</diggs_geo:volumeChange> </diggs_geo:ConsolidationIncrement>

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

<element abstract="false" name="ConsolidationIncrement" substitutionGroup="diggs:AbstractProcedureTrial" type="diggs_geo:ConsolidationIncrementType"> <annotation> <documentation>An object containing properties of a single consolidation increment within the consolidation stage of a triaxial test procedure.</documentation> </annotation> </element>
