Complex Type diggs:AbstractObjectBaseType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for DIGGS objects that are not features: supporting information
such as methods, structures and metadata. Requires gml:id and carries an optional
description and identifier.

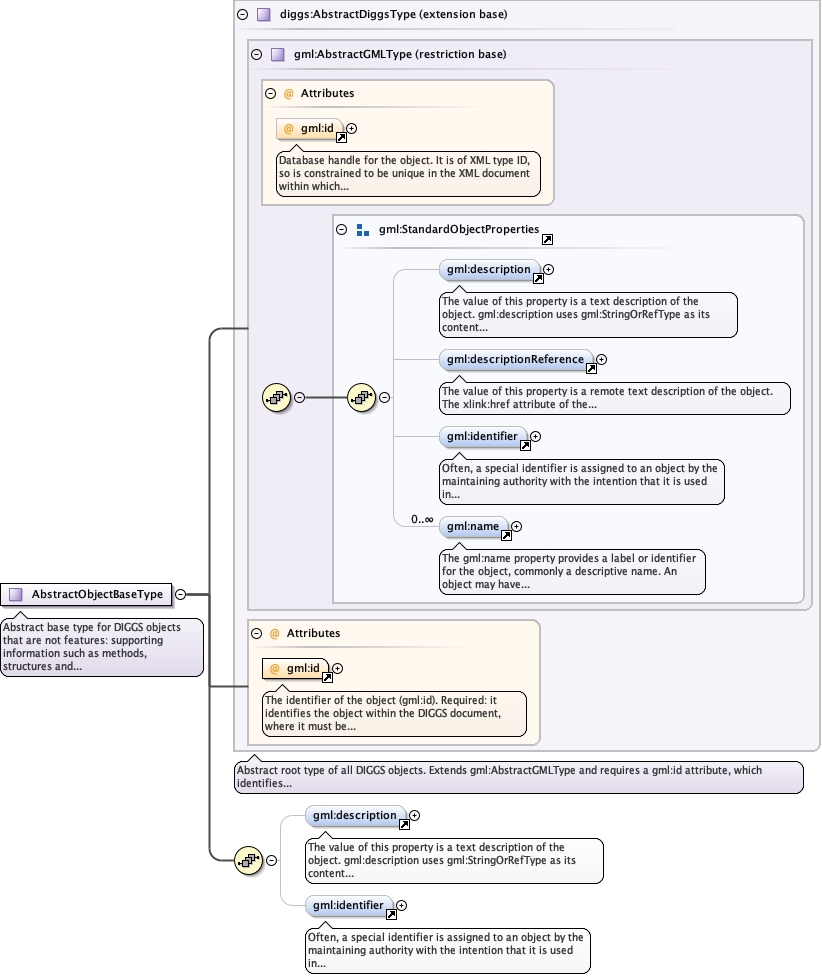

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifier
Type extension of diggs:AbstractDiggsType
Type hierarchy
Properties
abstract true
Used by
Model
Children gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractObjectBaseType" abstract="true">
  <annotation>
    <documentation>Abstract base type for DIGGS objects that are not features: supporting information such as methods, structures and metadata. Requires gml:id and carries an optional description and identifier.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractDiggsType">
      <sequence>
        <element ref="gml:description" minOccurs="0"/>
        <element minOccurs="0" ref="gml:identifier"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
