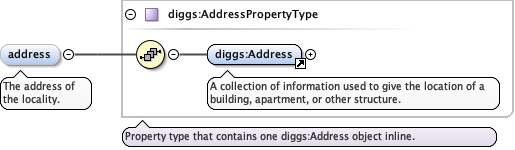

Element diggs:LocalityType / diggs:address
Namespace http://diggsml.org/schemas/3
Annotations

The address of the locality.
Diagram
DiagramCommon_xsd_Element_diggs_Address.tmp#AddressCommon_xsd_Complex_Type_diggs_AddressPropertyType.tmp#AddressPropertyType
Type diggs:AddressPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Address
Instance

<diggs:address xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Address gml:id="">{1,1}</diggs:Address>
</diggs:address>
Source

<element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The address of the locality.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:district
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a district.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="district" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of a territory of land classified as a district.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:division
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a division.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="division" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of a territory of land classified as a division.</documentation>
  </annotation>
</element>

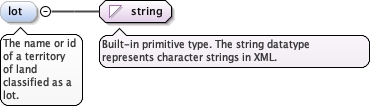

Element diggs:LocalityType / diggs:lot
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a lot.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="lot" type="string">
  <annotation>
    <documentation>The name or id of a territory of land classified as a lot.</documentation>
  </annotation>
</element>

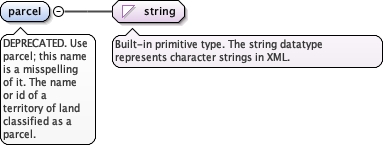

Element diggs:LocalityType / diggs:parceI
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use parcel; this name is a misspelling of it. The name
or id of a territory of land classified as a parcel.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="parceI" type="string">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" replacedBy="diggs:parcel"/>
    </appinfo>
    <documentation>DEPRECATED. Use parcel; this name is a misspelling of it. The name or id of a territory of land classified as a parcel.</documentation>
  </annotation>
</element>

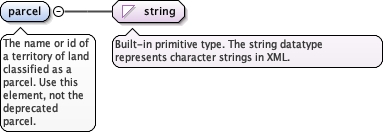

Element diggs:LocalityType / diggs:parcel
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a parcel. Use
this element, not the deprecated parceI.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="parcel" type="string">
  <annotation>
    <documentation>The name or id of a territory of land classified as a parcel. Use this element, not the deprecated parceI.</documentation>
  </annotation>
</element>

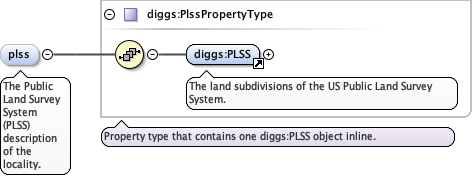

Element diggs:LocalityType / diggs:plss
Namespace http://diggsml.org/schemas/3
Annotations

The Public Land Survey System (PLSS) description of the locality.
Diagram
DiagramCommon_xsd_Element_diggs_PLSS.tmp#PLSSCommon_xsd_Complex_Type_diggs_PlssPropertyType.tmp#PlssPropertyType
Type diggs:PlssPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:PLSS
Instance

<diggs:plss xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PLSS gml:id="">{1,1}</diggs:PLSS>
</diggs:plss>
Source

<element name="plss" type="diggs:PlssPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The Public Land Survey System (PLSS) description of the locality.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:quadrangle
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a map
quadrangle.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="quadrangle" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of a territory of land classified as a map quadrangle.</documentation>
  </annotation>
</element>

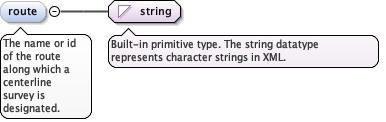

Element diggs:LocalityType / diggs:route
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of the route along which a centerline survey is
designated.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="route" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of the route along which a centerline survey is designated.</documentation>
  </annotation>
</element>

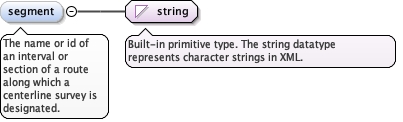

Element diggs:LocalityType / diggs:segment
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of an interval or section of a route along which a
centerline survey is designated.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="segment" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of an interval or section of a route along which a centerline survey is designated.</documentation>
  </annotation>
</element>

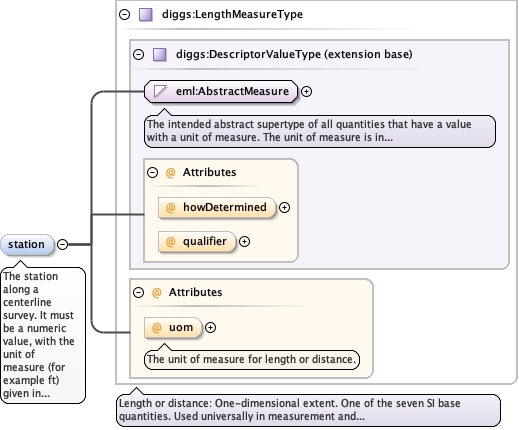

Element diggs:LocalityType / diggs:station
Namespace http://diggsml.org/schemas/3
Annotations

The station along a centerline survey. It must be a numeric value,
with the unit of measure (for example ft) given in the uom
attribute. Systems that store station values as a string with a plus
sign (+) must strip the plus sign and give the uom when encoding to
DIGGS.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="station" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The station along a centerline survey. It must be a numeric value, with the unit of measure (for example ft) given in the uom attribute. Systems that store station values as a string with a plus sign (+) must strip the plus sign and give the uom when encoding to DIGGS.</documentation>
  </annotation>
</element>

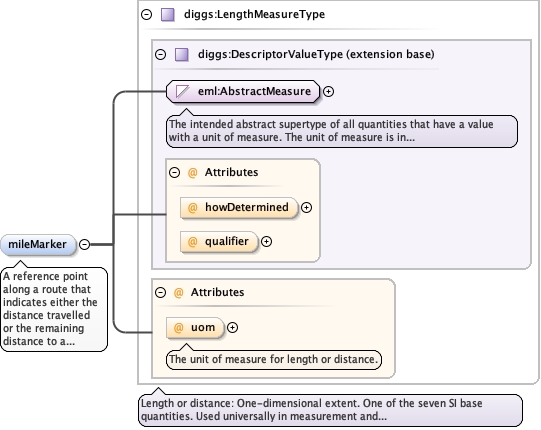

Element diggs:LocalityType / diggs:mileMarker
Namespace http://diggsml.org/schemas/3
Annotations

A reference point along a route that indicates either the distance
travelled or the remaining distance to a destination, also used by
maintenance engineers and emergency services to direct them to
specific points. The term is sometimes used for a location on a road
even where no physical sign is present. It is a numeric value and
can differ from the station used in route surveys.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="mileMarker" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A reference point along a route that indicates either the distance travelled or the remaining distance to a destination, also used by maintenance engineers and emergency services to direct them to specific points. The term is sometimes used for a location on a road even where no physical sign is present. It is a numeric value and can differ from the station used in route surveys.</documentation>
  </annotation>
</element>

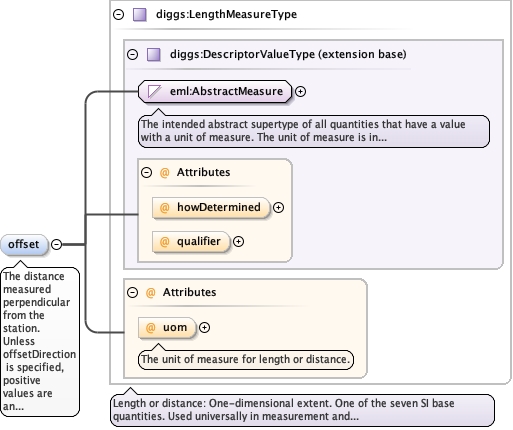

Element diggs:LocalityType / diggs:offset
Namespace http://diggsml.org/schemas/3
Annotations

The distance measured perpendicular from the station. Unless
offsetDirection is specified, positive values are an offset to the
right when facing the direction of increasing station value, and
negative values an offset to the left.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="offset" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1" form="qualified">
  <annotation>
    <documentation>The distance measured perpendicular from the station. Unless offsetDirection is specified, positive values are an offset to the right when facing the direction of increasing station value, and negative values an offset to the left.</documentation>
  </annotation>
</element>

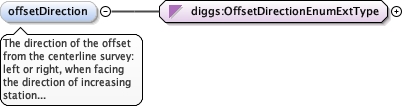

Element diggs:LocalityType / diggs:offsetDirection
Namespace http://diggsml.org/schemas/3
Annotations

The direction of the offset from the centerline survey: left or
right, when facing the direction of increasing station value. Values
come from the enumerated list, or "Other: xx", where xx is a
user-defined term whose meaning differs from every listed value (not
a synonym of one).
Diagram
DiagramCommon_xsd_Simple_Type_diggs_OffsetDirectionEnumExtType.tmp#OffsetDirectionEnumExtType
Type diggs:OffsetDirectionEnumExtType
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="offsetDirection" type="diggs:OffsetDirectionEnumExtType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The direction of the offset from the centerline survey: left or right, when facing the direction of increasing station value. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:tract
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a tract.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="tract" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of a territory of land classified as a tract.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:watershed
Namespace http://diggsml.org/schemas/3
Annotations

The name or id of a territory of land classified as a watershed.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="watershed" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name or id of a territory of land classified as a watershed.</documentation>
  </annotation>
</element>

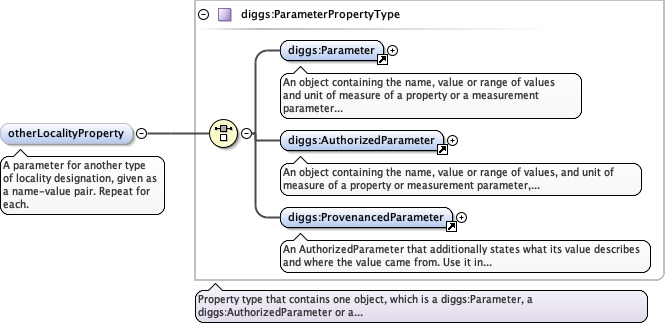

Element diggs:LocalityType / diggs:otherLocalityProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for another type of locality designation, given as a
name-value pair. Repeat for each.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherLocalityProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherLocalityProperty>
Source

<element name="otherLocalityProperty" type="diggs:ParameterPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A parameter for another type of locality designation, given as a name-value pair. Repeat for each.</documentation>
  </annotation>
</element>

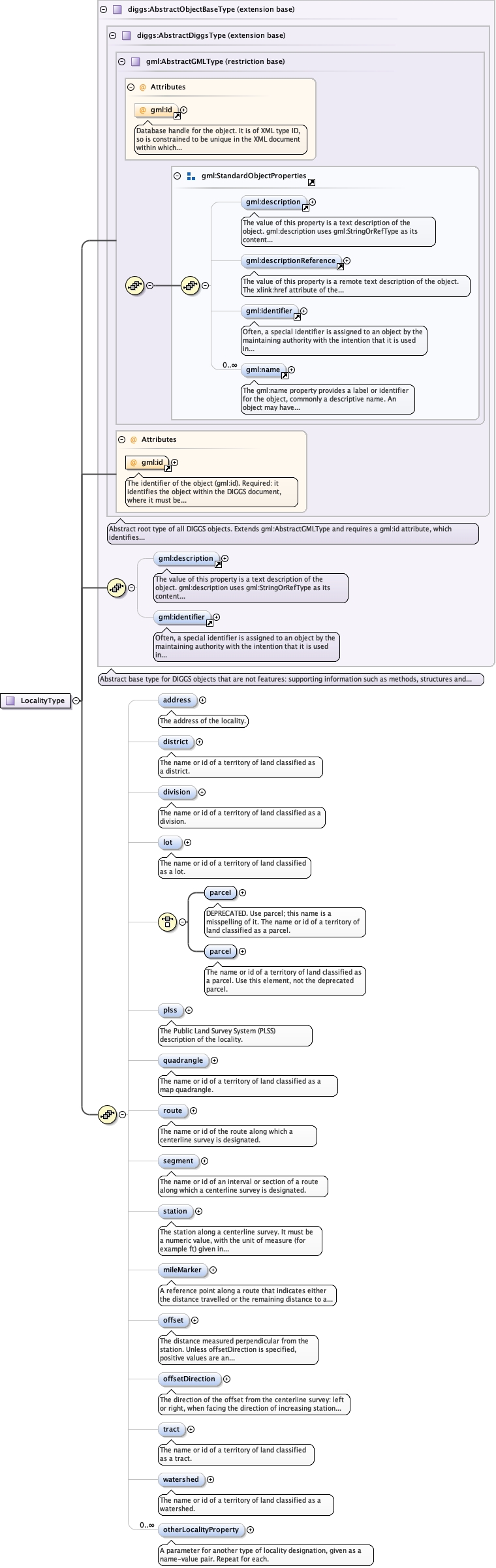

Complex Type diggs:LocalityType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypeCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_addressCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_districtCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_divisionCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_lotCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_parceICommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_parcelCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_plssCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_quadrangleCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_routeCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_segmentCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_stationCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_mileMarkerCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_offsetCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_offsetDirectionCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_tractCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_watershedCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_otherLocalityProperty
Type extension of diggs:AbstractObjectBaseType
Type hierarchy
Used by
Element diggs:Locality
Model
Children diggs:address, diggs:district, diggs:division, diggs:lot, diggs:mileMarker, diggs:offset, diggs:offsetDirection, diggs:otherLocalityProperty, diggs:parceI, diggs:parcel, diggs:plss, diggs:quadrangle, diggs:route, diggs:segment, diggs:station, diggs:tract, diggs:watershed, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LocalityType">
  <complexContent>
    <extension base="diggs:AbstractObjectBaseType">
      <sequence>
        <element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The address of the locality.</documentation>
          </annotation>
        </element>
        <element name="district" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of a territory of land classified as a district.</documentation>
          </annotation>
        </element>
        <element name="division" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of a territory of land classified as a division.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lot" type="string">
          <annotation>
            <documentation>The name or id of a territory of land classified as a lot.</documentation>
          </annotation>
        </element>
        <choice minOccurs="0" maxOccurs="1">
          <element name="parceI" type="string">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:parcel"/>
              </appinfo>
              <documentation>DEPRECATED. Use parcel; this name is a misspelling of it. The name or id of a territory of land classified as a parcel.</documentation>
            </annotation>
          </element>
          <element name="parcel" type="string">
            <annotation>
              <documentation>The name or id of a territory of land classified as a parcel. Use this element, not the deprecated parceI.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="plss" type="diggs:PlssPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The Public Land Survey System (PLSS) description of the locality.</documentation>
          </annotation>
        </element>
        <element name="quadrangle" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of a territory of land classified as a map quadrangle.</documentation>
          </annotation>
        </element>
        <element name="route" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of the route along which a centerline survey is designated.</documentation>
          </annotation>
        </element>
        <element name="segment" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of an interval or section of a route along which a centerline survey is designated.</documentation>
          </annotation>
        </element>
        <element name="station" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The station along a centerline survey. It must be a numeric value, with the unit of measure (for example ft) given in the uom attribute. Systems that store station values as a string with a plus sign (+) must strip the plus sign and give the uom when encoding to DIGGS.</documentation>
          </annotation>
        </element>
        <element name="mileMarker" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A reference point along a route that indicates either the distance travelled or the remaining distance to a destination, also used by maintenance engineers and emergency services to direct them to specific points. The term is sometimes used for a location on a road even where no physical sign is present. It is a numeric value and can differ from the station used in route surveys.</documentation>
          </annotation>
        </element>
        <element name="offset" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1" form="qualified">
          <annotation>
            <documentation>The distance measured perpendicular from the station. Unless offsetDirection is specified, positive values are an offset to the right when facing the direction of increasing station value, and negative values an offset to the left.</documentation>
          </annotation>
        </element>
        <element name="offsetDirection" type="diggs:OffsetDirectionEnumExtType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The direction of the offset from the centerline survey: left or right, when facing the direction of increasing station value. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element name="tract" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of a territory of land classified as a tract.</documentation>
          </annotation>
        </element>
        <element name="watershed" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name or id of a territory of land classified as a watershed.</documentation>
          </annotation>
        </element>
        <element name="otherLocalityProperty" type="diggs:ParameterPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A parameter for another type of locality designation, given as a name-value pair. Repeat for each.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
