Schema documentation for component diggs:ParameterPropertyType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type diggs:ParameterPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains one object, which is a diggs:Parameter, a
diggs:AuthorizedParameter or a diggs:ProvenancedParameter inline. Use
diggs:Parameter where the parameter name is uncontrolled free text;
diggs:AuthorizedParameter where the name is bound to a dictionary definition and the
data type of the value is declared; diggs:ProvenancedParameter where, in addition,
the subject and source of the value need stating.

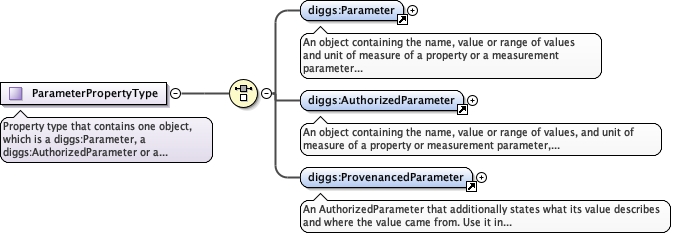

Diagram

Used by

Elements

diggs:AbstractConstructionActivityDesignType/diggs:otherDesignProperty, diggs:AbstractConstructionActivityType/diggs:otherConstructionActivityProperty, diggs:AbstractEquipmentType/diggs:otherEquipmentProperty, diggs:AbstractEventType/diggs:infoRecorded, diggs:AbstractMeasurementDesignType/diggs:otherDesignProperty, diggs:AbstractMeasurementType/diggs:otherMeasurementProperty, diggs:AbstractProcedureTrialType/diggs:otherProperty, diggs:AbstractProjectType/diggs:otherProjectProperty, diggs:AbstractSamplingActivityType/diggs:otherSamplingActivityProperty, diggs:AbstractSamplingDesignType/diggs:otherDesignProperty, diggs:AbstractSamplingFeatureDesignType/diggs:otherDesignProperty, diggs:AbstractSamplingFeatureType/diggs:otherSamplingFeatureProperty, diggs:AbstractSpecimenType/diggs:otherSpecimenProperty, diggs:AbstractTestProcedureType/diggs:otherTestProperty, diggs:AcceptanceCheckType/diggs:observedValue, diggs:ComponentPropertiesType/diggs:otherComponentProperty, diggs:DesignRIColumnType/diggs:otherProperty, diggs:DesignRILTPType/diggs:otherProperty, diggs:DesignVerificationType/diggs:capacity, diggs:DesignVerificationType/diggs:demand, diggs:EnvironmentType/diggs:otherEnvironmentalProperty, diggs:GeoUnitObservationType/diggs:characteristicProperty, diggs:GradingType/diggs:otherGradingProperty, diggs:GroutSpecimenConditionsType/diggs:otherConditionProperty, diggs:HydrometerType/diggs:otherHydrometerProperty, diggs:InputParameterType/diggs:parameter, diggs:LabCompactionTestTrialType/diggs:otherTrialProperty, diggs:LaboratoryTestEventType/diggs:infoRecorded, diggs:LithPropertiesType/diggs:otherLithProperty, diggs:LocalityType/diggs:otherLocalityProperty, diggs:OtherObservationType/diggs:property, diggs:PanDataType/diggs:otherGradingProperty, diggs:SampleType/diggs:otherSampleProperty, diggs:SieveAnalysisType/diggs:otherSieveAnalysisProperty, diggs:SpecificationType/diggs:otherSpecificationProperty, diggs:SpecimenConditionsType/diggs:otherConditionProperty, diggs:WirelineLogType/diggs:logParameter, diggs_geo:GradingType/diggs_geo:otherGradingProperty, diggs_geo:HydrometerType/diggs_geo:otherHydrometerProperty, diggs_geo:LabCompactionTestTrialType/diggs_geo:otherTrialProperty, diggs_geo:PanDataType/diggs_geo:otherGradingProperty, diggs_geo:SieveAnalysisType/diggs_geo:otherSieveAnalysisProperty, diggs_geo:WirelineLogType/diggs_geo:logParameter

Model

diggs:Parameter | diggs:AuthorizedParameter | diggs:ProvenancedParameter

Children

diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter

Source

<complexType name="ParameterPropertyType">
  <annotation>
    <documentation>Property type that contains one object, which is a diggs:Parameter, a diggs:AuthorizedParameter or a diggs:ProvenancedParameter inline. Use diggs:Parameter where the parameter name is uncontrolled free text; diggs:AuthorizedParameter where the name is bound to a dictionary definition and the data type of the value is declared; diggs:ProvenancedParameter where, in addition, the subject and source of the value need stating.</documentation>
  </annotation>
  <choice minOccurs="1" maxOccurs="1">
    <element ref="diggs:Parameter"/>
    <element ref="diggs:AuthorizedParameter"/>
    <element ref="diggs:ProvenancedParameter"/>
  </choice>
</complexType>
