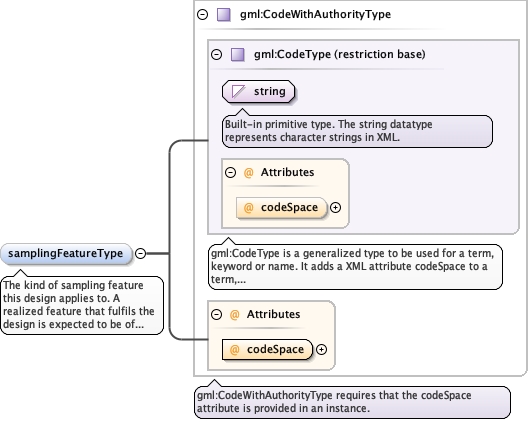

Element diggs:AbstractSamplingFeatureDesignType / diggs:samplingFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

The kind of sampling feature this design applies to. A realized
feature that fulfils the design is expected to be of this type.
Optional, like every other property here: an exception design
resolves anything it does not restate up its basedOnRef chain. Use
the DIGGS dictionary samplingFeatureTypes.xml for the list of
values.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeTypegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType
Type gml:CodeWithAuthorityType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI required
Source

<element minOccurs="0" name="samplingFeatureType" type="gml:CodeWithAuthorityType">
  <annotation>
    <documentation>The kind of sampling feature this design applies to. A realized feature that fulfils the design is expected to be of this type. Optional, like every other property here: an exception design resolves anything it does not restate up its basedOnRef chain. Use the DIGGS dictionary samplingFeatureTypes.xml for the list of values.</documentation>
  </annotation>
</element>

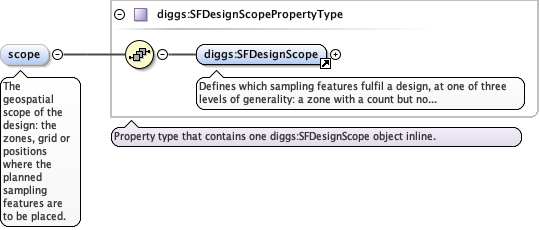

Element diggs:AbstractSamplingFeatureDesignType / diggs:scope
Namespace http://diggsml.org/schemas/3
Annotations

The geospatial scope of the design: the zones, grid or positions
where the planned sampling features are to be placed.
Diagram
DiagramCore_xsd_Element_diggs_SFDesignScope.tmp#SFDesignScopeCommon_xsd_Complex_Type_diggs_SFDesignScopePropertyType.tmp#SFDesignScopePropertyType
Type diggs:SFDesignScopePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:SFDesignScope
Instance

<diggs:scope xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:SFDesignScope gml:id="">{1,1}</diggs:SFDesignScope>
</diggs:scope>
Source

<element minOccurs="0" name="scope" type="diggs:SFDesignScopePropertyType">
  <annotation>
    <documentation>The geospatial scope of the design: the zones, grid or positions where the planned sampling features are to be placed.</documentation>
  </annotation>
</element>

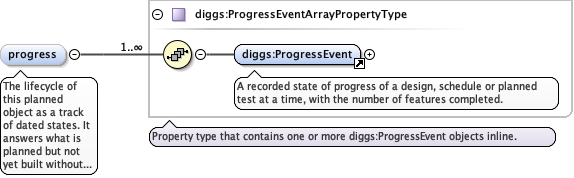

Element diggs:AbstractSamplingFeatureDesignType / diggs:progress
Namespace http://diggsml.org/schemas/3
Annotations

The lifecycle of this planned object as a track of dated states. It
answers what is planned but not yet built without any reference from
the plan to its realization: a design with no progress recorded, or
whose latest progressState has not reached completion, is not yet
fulfilled.
Diagram
DiagramCore_xsd_Element_diggs_ProgressEvent.tmp#ProgressEventCore_xsd_Complex_Type_diggs_ProgressEventArrayPropertyType.tmp#ProgressEventArrayPropertyType
Type diggs:ProgressEventArrayPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:ProgressEvent
Instance

<diggs:progress xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProgressEvent gml:id="">{1,1}</diggs:ProgressEvent>
</diggs:progress>
Source

<element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
  <annotation>
    <documentation>The lifecycle of this planned object as a track of dated states. It answers what is planned but not yet built without any reference from the plan to its realization: a design with no progress recorded, or whose latest progressState has not reached completion, is not yet fulfilled.</documentation>
  </annotation>
</element>

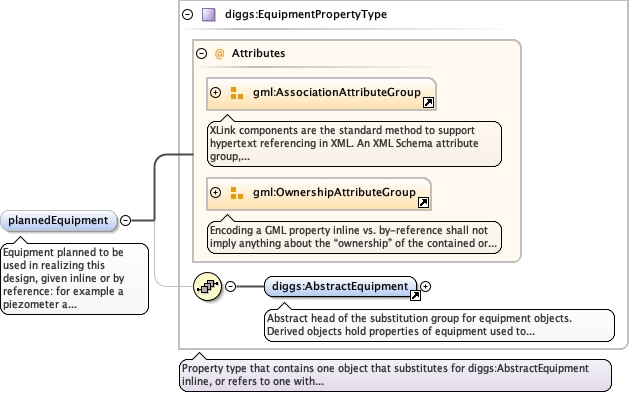

Element diggs:AbstractSamplingFeatureDesignType / diggs:plannedEquipment
Namespace http://diggsml.org/schemas/3
Annotations

Equipment planned to be used in realizing this design, given inline
or by reference: for example a piezometer a monitoring plan intends
to install, a sampler a collection plan intends to use, or a rig a
construction plan intends to bring. The kind of instrument is
carried on the equipment's own class property (see
equipmentClass.xml).
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:plannedEquipment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{1,1}</diggs:AbstractEquipment>
</diggs:plannedEquipment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
  <annotation>
    <documentation>Equipment planned to be used in realizing this design, given inline or by reference: for example a piezometer a monitoring plan intends to install, a sampler a collection plan intends to use, or a rig a construction plan intends to bring. The kind of instrument is carried on the equipment's own class property (see equipmentClass.xml).</documentation>
  </annotation>
</element>

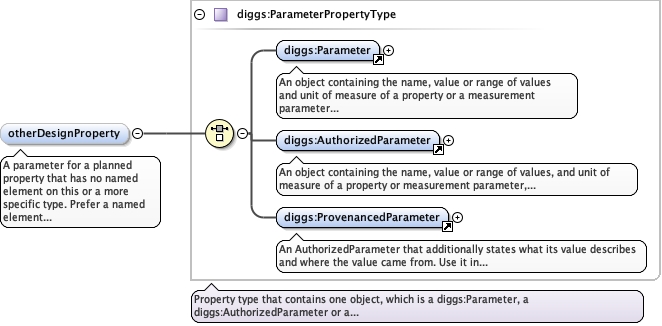

Element diggs:AbstractSamplingFeatureDesignType / diggs:otherDesignProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for a planned property that has no named element on this
or a more specific type. Prefer a named element wherever one exists.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherDesignProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherDesignProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
  </annotation>
</element>

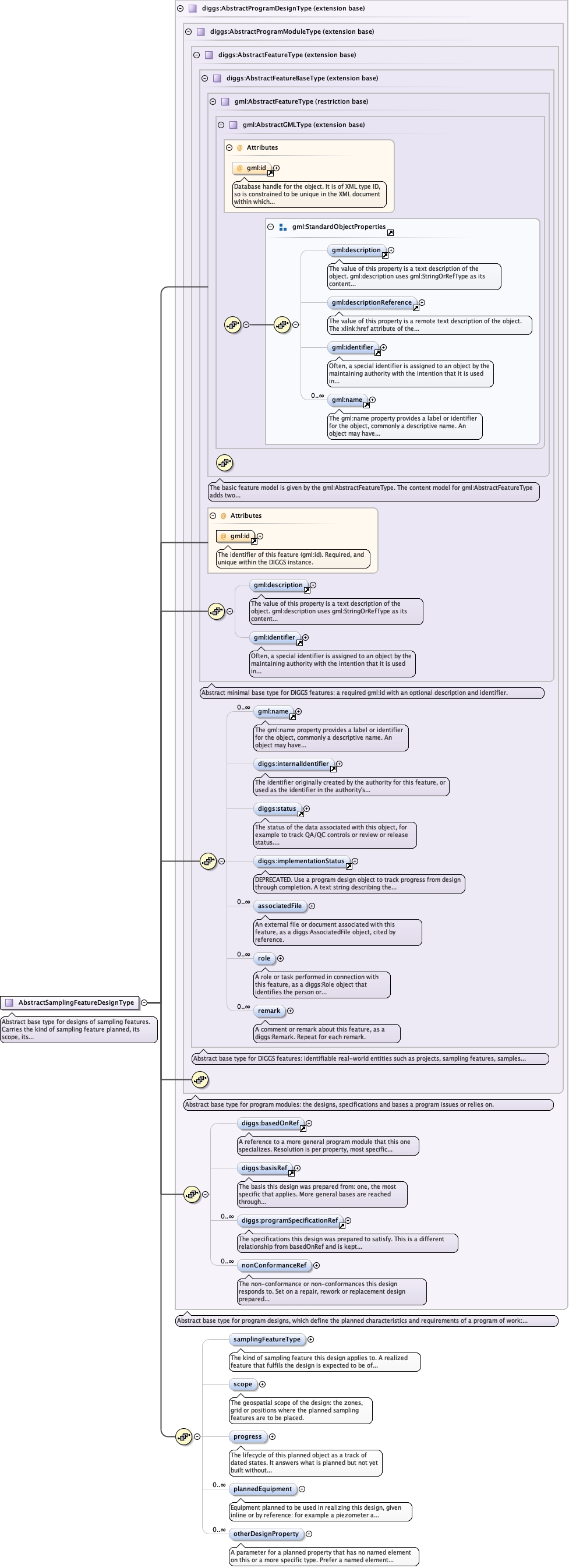

Complex Type diggs:AbstractSamplingFeatureDesignType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for designs of sampling features. Carries the kind of sampling
feature planned, its scope, its progress, planned equipment and other planned
properties.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_samplingFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_scopeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureDesignType.tmp#AbstractSamplingFeatureDesignType_otherDesignProperty
Type extension of diggs:AbstractProgramDesignType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:samplingFeatureType, diggs:scope, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractSamplingFeatureDesignType">
  <annotation>
    <documentation>Abstract base type for designs of sampling features. Carries the kind of sampling feature planned, its scope, its progress, planned equipment and other planned properties.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramDesignType">
      <sequence>
        <element minOccurs="0" name="samplingFeatureType" type="gml:CodeWithAuthorityType">
          <annotation>
            <documentation>The kind of sampling feature this design applies to. A realized feature that fulfils the design is expected to be of this type. Optional, like every other property here: an exception design resolves anything it does not restate up its basedOnRef chain. Use the DIGGS dictionary samplingFeatureTypes.xml for the list of values.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="scope" type="diggs:SFDesignScopePropertyType">
          <annotation>
            <documentation>The geospatial scope of the design: the zones, grid or positions where the planned sampling features are to be placed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
          <annotation>
            <documentation>The lifecycle of this planned object as a track of dated states. It answers what is planned but not yet built without any reference from the plan to its realization: a design with no progress recorded, or whose latest progressState has not reached completion, is not yet fulfilled.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
          <annotation>
            <documentation>Equipment planned to be used in realizing this design, given inline or by reference: for example a piezometer a monitoring plan intends to install, a sampler a collection plan intends to use, or a rig a construction plan intends to bring. The kind of instrument is carried on the equipment's own class property (see equipmentClass.xml).</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
