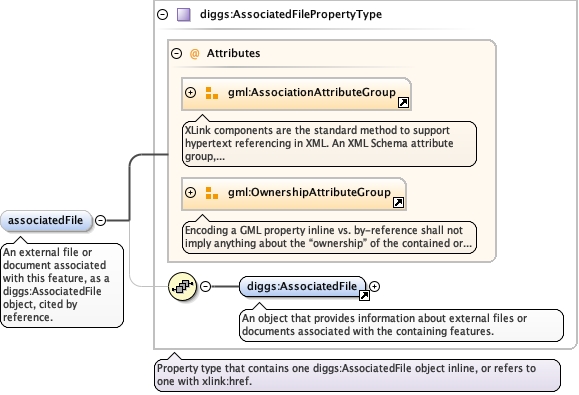

Schema documentation for component diggs:associatedFile

An external file or document associated with this feature, as a
diggs:AssociatedFile object, cited by reference.

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:associatedFile xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AssociatedFile gml:id="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

<element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
    <documentation>An external file or document associated with this feature, as a diggs:AssociatedFile object, cited by reference.</documentation>
  </annotation>
</element>

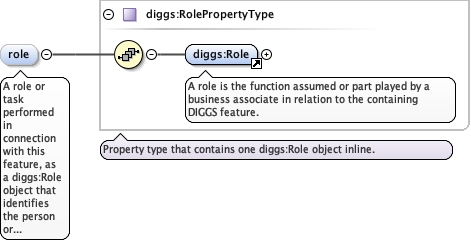

A role or task performed in connection with this feature, as a
diggs:Role object that identifies the person or organization that
performed it and the time frame, if applicable. Repeat for each
role.

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:role xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>

<element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A role or task performed in connection with this feature, as a diggs:Role object that identifies the person or organization that performed it and the time frame, if applicable. Repeat for each role.</documentation>
  </annotation>
</element>

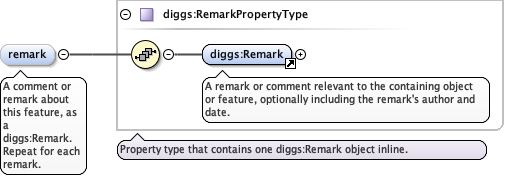

A comment or remark about this feature, as a diggs:Remark. Repeat
for each remark.

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A comment or remark about this feature, as a diggs:Remark. Repeat for each remark.</documentation>
  </annotation>
</element>

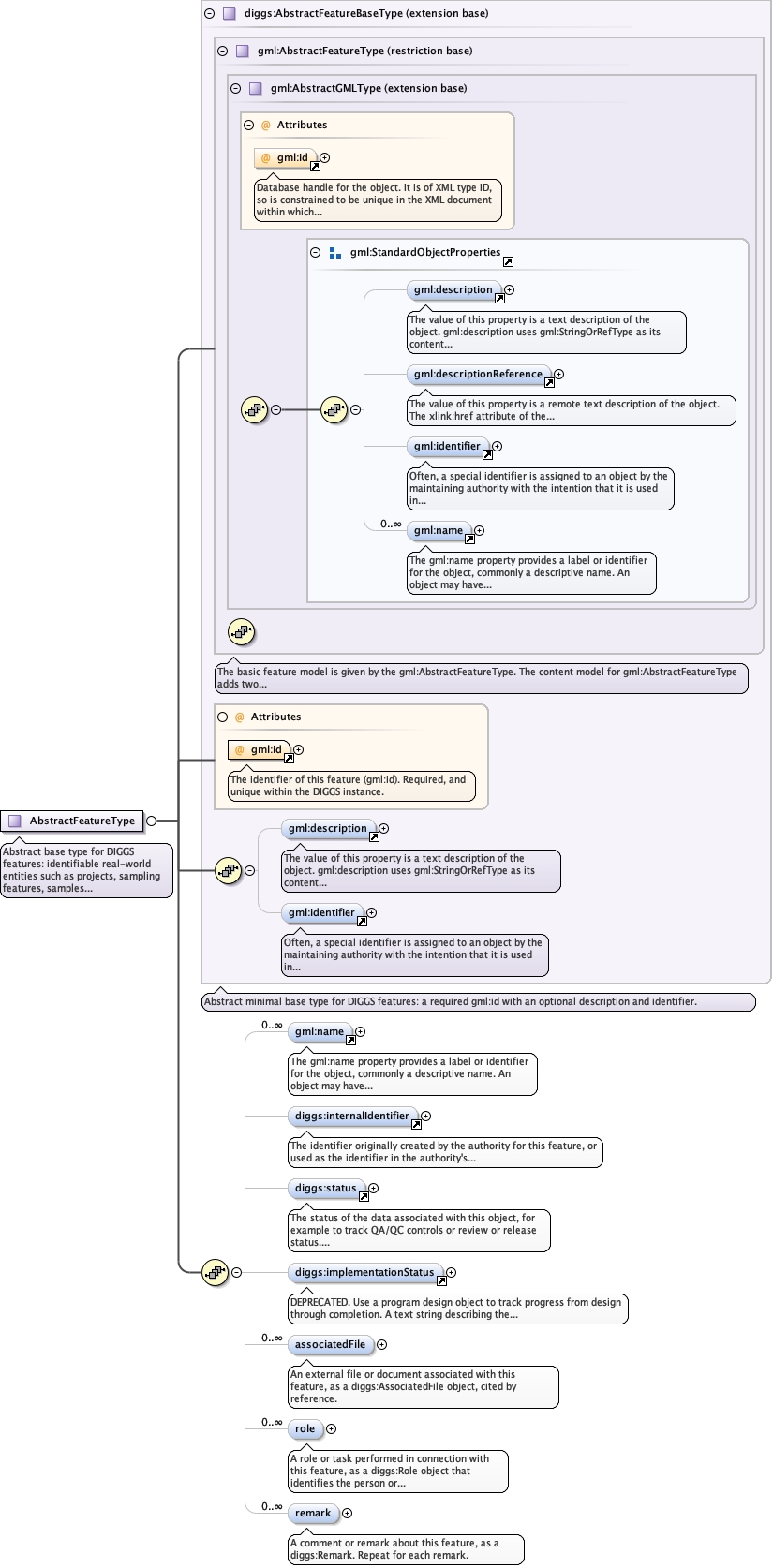

Abstract base type for DIGGS features: identifiable real-world entities such as
projects, sampling features, samples and tests.

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

<complexType name="AbstractFeatureType" abstract="true">
  <annotation>
    <documentation>Abstract base type for DIGGS features: identifiable real-world entities such as projects, sampling features, samples and tests.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureBaseType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:name"/>
        <element minOccurs="0" maxOccurs="1" ref="diggs:internalIdentifier"/>
        <element minOccurs="0" ref="diggs:status"/>
        <element minOccurs="0" ref="diggs:implementationStatus"/>
        <element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
            <documentation>An external file or document associated with this feature, as a diggs:AssociatedFile object, cited by reference.</documentation>
          </annotation>
        </element>
        <element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A role or task performed in connection with this feature, as a diggs:Role object that identifies the person or organization that performed it and the time frame, if applicable. Repeat for each role.</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A comment or remark about this feature, as a diggs:Remark. Repeat for each remark.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
