Element diggs:Remark
Namespace http://diggsml.org/schemas/3
Annotations

A remark or comment relevant to the containing object or feature,
optionally including the remark's author and date.

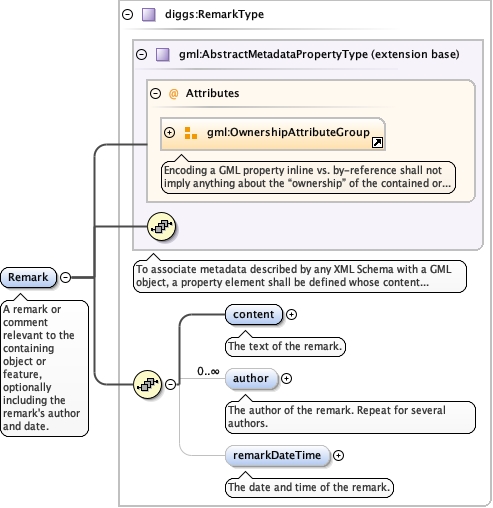

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeCommon_xsd_Complex_Type_diggs_RemarkType.tmp#RemarkType_contentCommon_xsd_Complex_Type_diggs_RemarkType.tmp#RemarkType_authorCommon_xsd_Complex_Type_diggs_RemarkType.tmp#RemarkType_remarkDateTimeCommon_xsd_Complex_Type_diggs_RemarkType.tmp#RemarkType
Type diggs:RemarkType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:author, diggs:content, diggs:remarkDateTime
Instance

<diggs:Remark owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:content>{1,1}</diggs:content>
  <diggs:author xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:author>
  <diggs:remarkDateTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:remarkDateTime>
</diggs:Remark>
Attributes
QName Type Default Use
owns boolean false optional
Source

<element name="Remark" type="diggs:RemarkType" abstract="false">
  <annotation>
    <documentation>A remark or comment relevant to the containing object or feature, optionally including the remark's author and date.</documentation>
  </annotation>
</element>
