Schema documentation for component diggs:content

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:RemarkType / diggs:content

Namespace

http://diggsml.org/schemas/3

Annotations

The text of the remark.

Diagram

Type

string

Properties

content	simple
minOccurs	1
maxOccurs	1

Source

<element name="content" type="string" minOccurs="1" maxOccurs="1">
  <annotation>
    <documentation>The text of the remark.</documentation>
  </annotation>
</element>

Element diggs:RemarkType / diggs:author

Namespace

http://diggsml.org/schemas/3

Annotations

The author of the remark. Repeat for several authors.

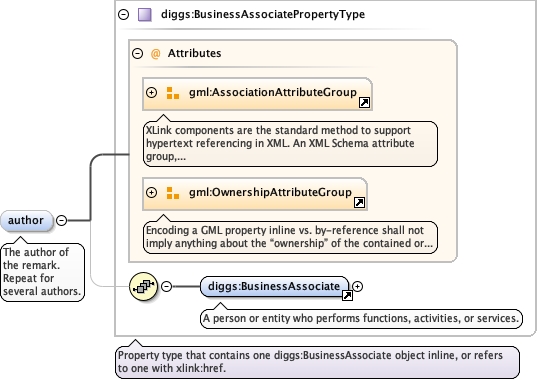

Diagram

Type

diggs:BusinessAssociatePropertyType

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Model

diggs:BusinessAssociate

Children

diggs:BusinessAssociate

Instance

<diggs:author xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:BusinessAssociate gml:id="">{1,1}</diggs:BusinessAssociate>
</diggs:author>

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<element name="author" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <documentation>The author of the remark. Repeat for several authors.</documentation>
  </annotation>
</element>

Element diggs:RemarkType / diggs:remarkDateTime

Namespace

http://diggsml.org/schemas/3

Annotations

The date and time of the remark.

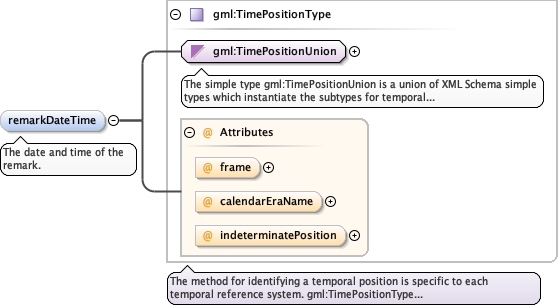

Diagram

Type

gml:TimePositionType

Type hierarchy

anySimpleType
- gml:TimePositionUnion
  - gml:TimePositionType

Properties

content	complex
minOccurs	0
maxOccurs	1

Attributes

QName	Type	Default	Use
calendarEraName	string		optional
frame	anyURI	#ISO-8601	optional
indeterminatePosition	gml:TimeIndeterminateValueType		optional

Source

<element name="remarkDateTime" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The date and time of the remark.</documentation>
  </annotation>
</element>

Complex Type diggs:RemarkType

Namespace

http://diggsml.org/schemas/3

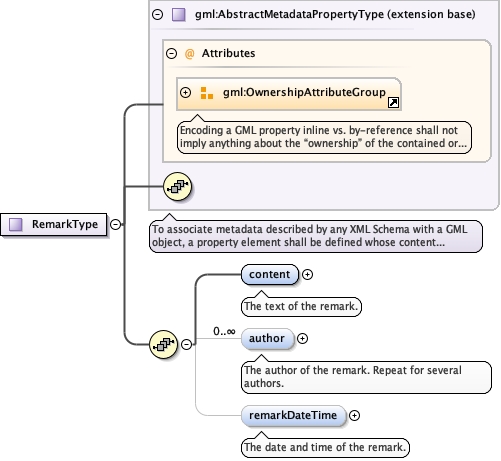

Diagram

Type

extension of gml:AbstractMetadataPropertyType

Type hierarchy

gml:AbstractMetadataPropertyType
- diggs:RemarkType

Used by

Element

diggs:Remark

Model

diggs:content , diggs:author* , diggs:remarkDateTime{0,1}

Children

diggs:author, diggs:content, diggs:remarkDateTime

Attributes

QName	Type	Default	Use
owns	boolean	false	optional

Source

<complexType name="RemarkType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element name="content" type="string" minOccurs="1" maxOccurs="1">
          <annotation>
            <documentation>The text of the remark.</documentation>
          </annotation>
        </element>
        <element name="author" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <documentation>The author of the remark. Repeat for several authors.</documentation>
          </annotation>
        </element>
        <element name="remarkDateTime" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The date and time of the remark.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
