Schema documentation for component diggs:BusinessAssociatePropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:BusinessAssociatePropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains one diggs:BusinessAssociate object inline, or refers to
one with xlink:href.

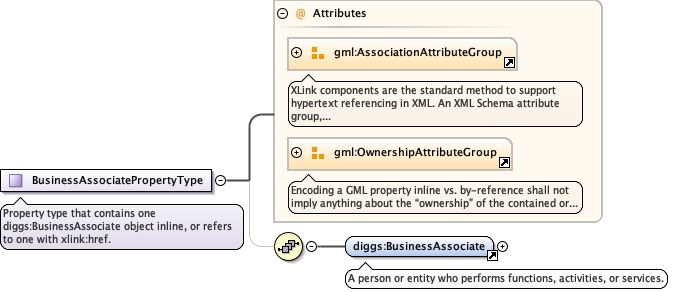

Diagram

Used by

Elements

diggs:AssociatedFileType/diggs:contact, diggs:BusinessAssociateType/diggs:associatedWith, diggs:ChainOfCustodyEventType/diggs:destinationCustodian, diggs:ChainOfCustodyEventType/diggs:sourceCustodian, diggs:DocumentInformationType/diggs:author, diggs:RemarkType/diggs:author, diggs:RoleType/diggs:businessAssociate, diggs:TestingScheduleType/diggs:receivingEntity, diggs:TestingScheduleType/diggs:submittingEntity

Model

diggs:BusinessAssociate

Children

diggs:BusinessAssociate

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="BusinessAssociatePropertyType">
  <annotation>
    <documentation>Property type that contains one diggs:BusinessAssociate object inline, or refers to one with xlink:href.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:BusinessAssociate" maxOccurs="1"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
