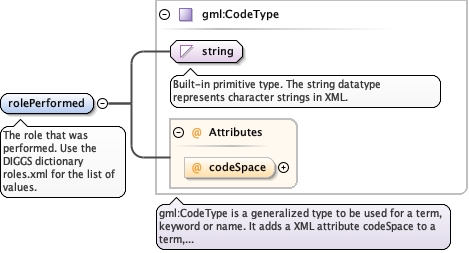

Element diggs:RoleType / diggs:rolePerformed
Namespace http://diggsml.org/schemas/3
Annotations

The role that was performed. Use the DIGGS dictionary roles.xml for
the list of values.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="rolePerformed" type="gml:CodeType" minOccurs="1" maxOccurs="1">
  <annotation>
    <documentation>The role that was performed. Use the DIGGS dictionary roles.xml for the list of values.</documentation>
  </annotation>
</element>

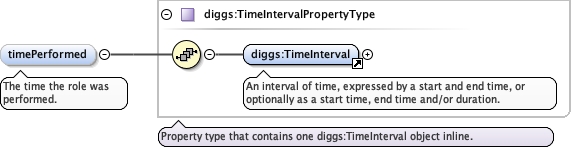

Element diggs:RoleType / diggs:timePerformed
Namespace http://diggsml.org/schemas/3
Annotations

The time the role was performed.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:timePerformed xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:timePerformed>
Source

<element name="timePerformed" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The time the role was performed.</documentation>
  </annotation>
</element>

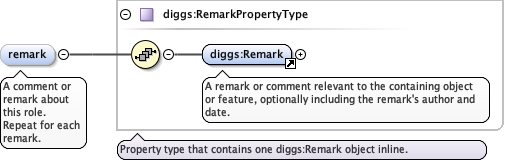

Element diggs:RoleType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this role. Repeat for each remark.
Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A comment or remark about this role. Repeat for each remark.</documentation>
  </annotation>
</element>

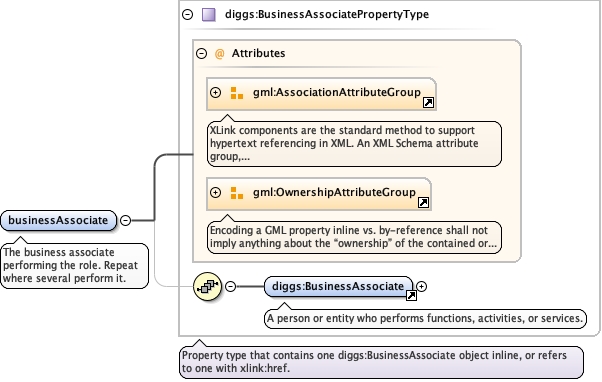

Element diggs:RoleType / diggs:businessAssociate
Namespace http://diggsml.org/schemas/3
Annotations

The business associate performing the role. Repeat where several
perform it.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateCommon_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:BusinessAssociate
Instance

<diggs:businessAssociate xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:BusinessAssociate gml:id="">{1,1}</diggs:BusinessAssociate>
</diggs:businessAssociate>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="businessAssociate" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded" minOccurs="1">
  <annotation>
    <documentation>The business associate performing the role. Repeat where several perform it.</documentation>
  </annotation>
</element>

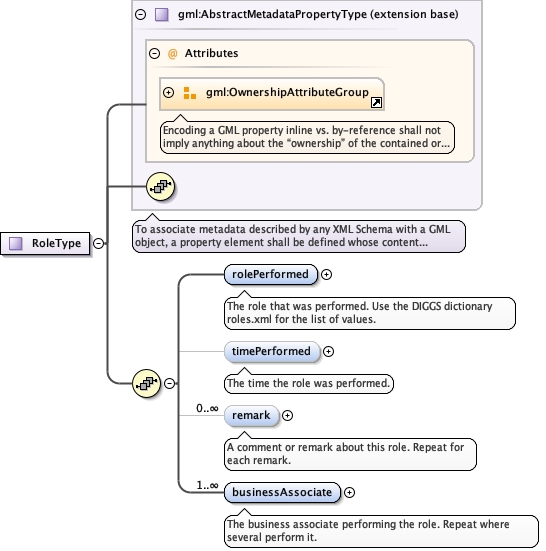

Complex Type diggs:RoleType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeCommon_xsd_Complex_Type_diggs_RoleType.tmp#RoleType_rolePerformedCommon_xsd_Complex_Type_diggs_RoleType.tmp#RoleType_timePerformedCommon_xsd_Complex_Type_diggs_RoleType.tmp#RoleType_remarkCommon_xsd_Complex_Type_diggs_RoleType.tmp#RoleType_businessAssociate
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Element diggs:Role
Model
Children diggs:businessAssociate, diggs:remark, diggs:rolePerformed, diggs:timePerformed
Attributes
QName Type Default Use
owns boolean false optional
Source

<complexType name="RoleType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element name="rolePerformed" type="gml:CodeType" minOccurs="1" maxOccurs="1">
          <annotation>
            <documentation>The role that was performed. Use the DIGGS dictionary roles.xml for the list of values.</documentation>
          </annotation>
        </element>
        <element name="timePerformed" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The time the role was performed.</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A comment or remark about this role. Repeat for each remark.</documentation>
          </annotation>
        </element>
        <element name="businessAssociate" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded" minOccurs="1">
          <annotation>
            <documentation>The business associate performing the role. Repeat where several perform it.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
