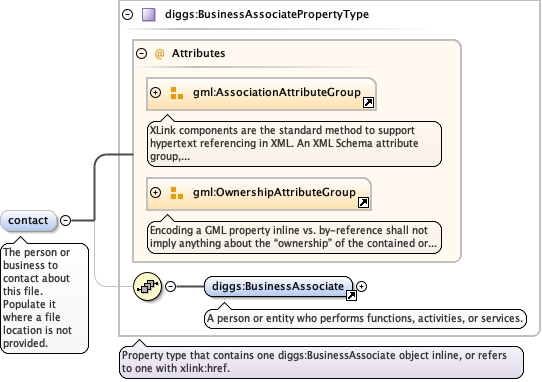

Element diggs:AssociatedFileType / diggs:contact
Namespace http://diggsml.org/schemas/3
Annotations

The person or business to contact about this file. Populate it
where a file location is not provided.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateCommon_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:BusinessAssociate
Instance

<diggs:contact xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:BusinessAssociate gml:id="">{1,1}</diggs:BusinessAssociate>
</diggs:contact>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="contact" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The person or business to contact about this file. Populate it where a file location is not provided.</documentation>
  </annotation>
</element>
Element diggs:AssociatedFileType / diggs:fileURL
Namespace http://diggsml.org/schemas/3
Annotations

The path to the digital file.
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="fileURL" type="anyURI">
  <annotation>
    <documentation>The path to the digital file.</documentation>
  </annotation>
</element>

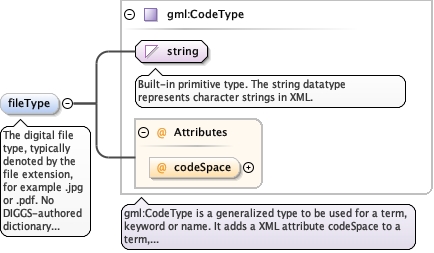

Element diggs:AssociatedFileType / diggs:fileType
Namespace http://diggsml.org/schemas/3
Annotations

The digital file type, typically denoted by the file extension,
for example .jpg or .pdf. No DIGGS-authored dictionary currently
exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="fileType" type="gml:CodeType">
  <annotation>
    <documentation>The digital file type, typically denoted by the file extension, for example .jpg or .pdf. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

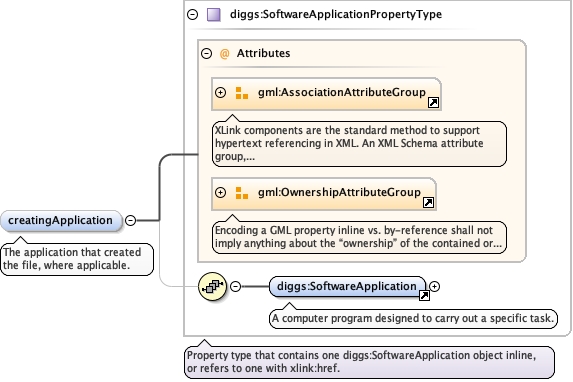

Element diggs:AssociatedFileType / diggs:creatingApplication
Namespace http://diggsml.org/schemas/3
Annotations

The application that created the file, where applicable.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_SoftwareApplication.tmp#SoftwareApplicationCommon_xsd_Complex_Type_diggs_SoftwareApplicationPropertyType.tmp#SoftwareApplicationPropertyType
Type diggs:SoftwareApplicationPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:SoftwareApplication
Instance

<diggs:creatingApplication xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:SoftwareApplication gml:id="">{1,1}</diggs:SoftwareApplication>
</diggs:creatingApplication>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="creatingApplication" type="diggs:SoftwareApplicationPropertyType">
  <annotation>
    <documentation>The application that created the file, where applicable.</documentation>
  </annotation>
</element>

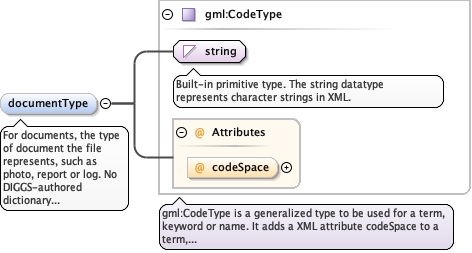

Element diggs:AssociatedFileType / diggs:documentType
Namespace http://diggsml.org/schemas/3
Annotations

For documents, the type of document the file represents, such as
photo, report or log. No DIGGS-authored dictionary currently
exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="documentType" type="gml:CodeType">
  <annotation>
    <documentation>For documents, the type of document the file represents, such as photo, report or log. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

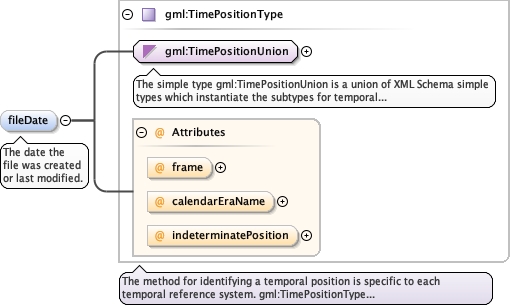

Element diggs:AssociatedFileType / diggs:fileDate
Namespace http://diggsml.org/schemas/3
Annotations

The date the file was created or last modified.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element maxOccurs="1" minOccurs="0" name="fileDate" type="gml:TimePositionType">
  <annotation>
    <documentation>The date the file was created or last modified.</documentation>
  </annotation>
</element>

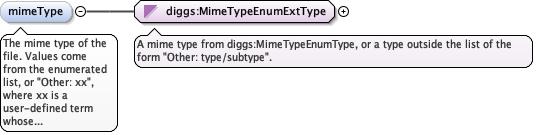

Element diggs:AssociatedFileType / diggs:mimeType
Namespace http://diggsml.org/schemas/3
Annotations

The mime type of the file. Values come from the enumerated list,
or "Other: xx", where xx is a user-defined term whose meaning
differs from every listed value (not a synonym of one). For a
mime type that is not registered, xx is type/subtype with a
subtype that begins with "x-", for example Other:
application/x-segy.
Diagram
DiagramCommon_xsd_Simple_Type_diggs_MimeTypeEnumExtType.tmp#MimeTypeEnumExtType
Type diggs:MimeTypeEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
  <annotation>
    <documentation>The mime type of the file. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one). For a mime type that is not registered, xx is type/subtype with a subtype that begins with "x-", for example Other: application/x-segy.</documentation>
  </annotation>
</element>

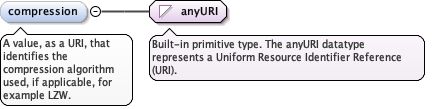

Element diggs:AssociatedFileType / diggs:compression
Namespace http://diggsml.org/schemas/3
Annotations

A value, as a URI, that identifies the compression algorithm
used, if applicable, for example LZW.
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="compression" type="anyURI">
  <annotation>
    <documentation>A value, as a URI, that identifies the compression algorithm used, if applicable, for example LZW.</documentation>
  </annotation>
</element>

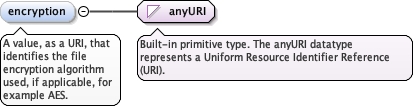

Element diggs:AssociatedFileType / diggs:encryption
Namespace http://diggsml.org/schemas/3
Annotations

A value, as a URI, that identifies the file encryption algorithm
used, if applicable, for example AES.
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="encryption" type="anyURI">
  <annotation>
    <documentation>A value, as a URI, that identifies the file encryption algorithm used, if applicable, for example AES.</documentation>
  </annotation>
</element>

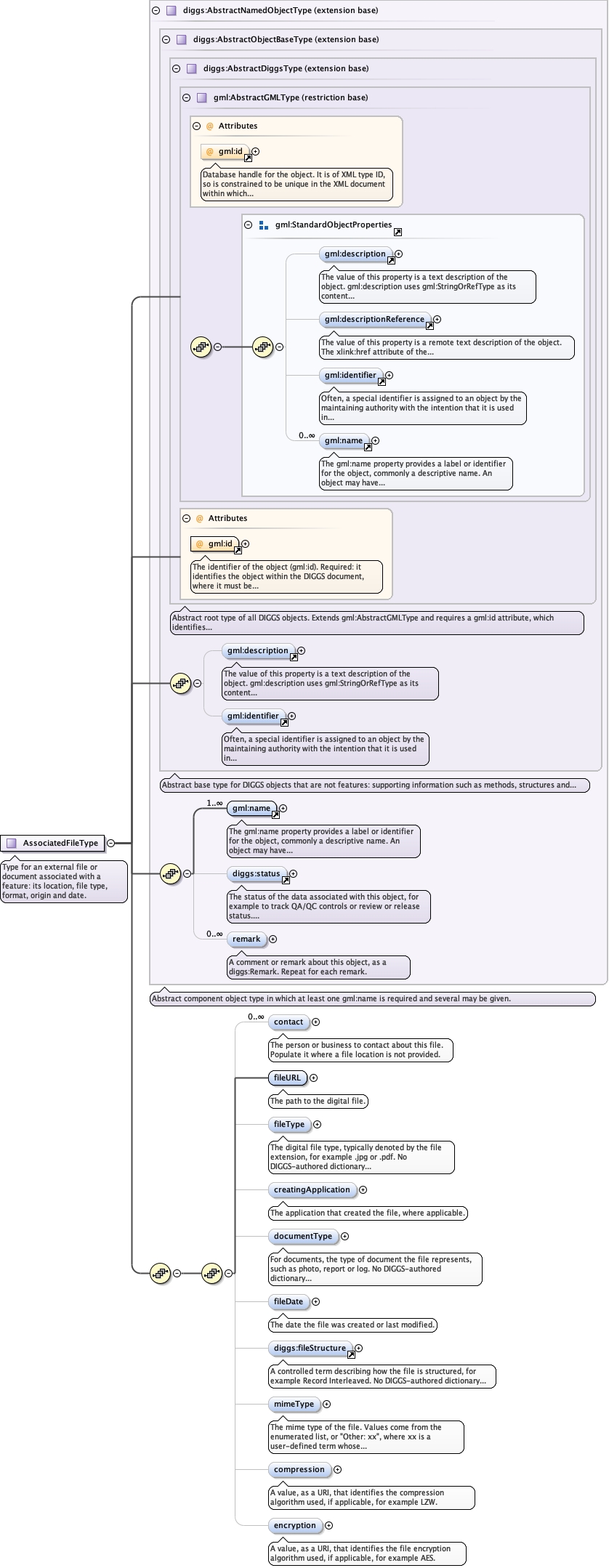

Complex Type diggs:AssociatedFileType
Namespace http://diggsml.org/schemas/3
Annotations

Type for an external file or document associated with a feature: its location, file
type, format, origin and date.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectTypeCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_contactCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileURLCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileTypeCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_creatingApplicationCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_documentTypeCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileDateCommon_xsd_Element_diggs_fileStructure.tmp#fileStructureCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_mimeTypeCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_compressionCommon_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_encryption
Type extension of diggs:AbstractNamedObjectType
Type hierarchy
Used by
Model
Children diggs:compression, diggs:contact, diggs:creatingApplication, diggs:documentType, diggs:encryption, diggs:fileDate, diggs:fileStructure, diggs:fileType, diggs:fileURL, diggs:mimeType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AssociatedFileType">
  <annotation>
    <documentation>Type for an external file or document associated with a feature: its location, file type, format, origin and date.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractNamedObjectType">
      <sequence>
        <sequence>
          <element minOccurs="0" name="contact" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded">
            <annotation>
              <documentation>The person or business to contact about this file. Populate it where a file location is not provided.</documentation>
            </annotation>
          </element>
          <element minOccurs="1" name="fileURL" type="anyURI">
            <annotation>
              <documentation>The path to the digital file.</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="fileType" type="gml:CodeType">
            <annotation>
              <documentation>The digital file type, typically denoted by the file extension, for example .jpg or .pdf. No DIGGS-authored dictionary currently exists for this element.</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="creatingApplication" type="diggs:SoftwareApplicationPropertyType">
            <annotation>
              <documentation>The application that created the file, where applicable.</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="documentType" type="gml:CodeType">
            <annotation>
              <documentation>For documents, the type of document the file represents, such as photo, report or log. No DIGGS-authored dictionary currently exists for this element.</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="fileDate" type="gml:TimePositionType">
            <annotation>
              <documentation>The date the file was created or last modified.</documentation>
            </annotation>
          </element>
          <element minOccurs="0" ref="diggs:fileStructure"/>
          <element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
            <annotation>
              <documentation>The mime type of the file. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one). For a mime type that is not registered, xx is type/subtype with a subtype that begins with "x-", for example Other: application/x-segy.</documentation>
            </annotation>
          </element>
          <element minOccurs="0" name="compression" type="anyURI">
            <annotation>
              <documentation>A value, as a URI, that identifies the compression algorithm used, if applicable, for example LZW.</documentation>
            </annotation>
          </element>
          <element minOccurs="0" name="encryption" type="anyURI">
            <annotation>
              <documentation>A value, as a URI, that identifies the file encryption algorithm used, if applicable, for example AES.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
    </extension>
  </complexContent>
</complexType>
