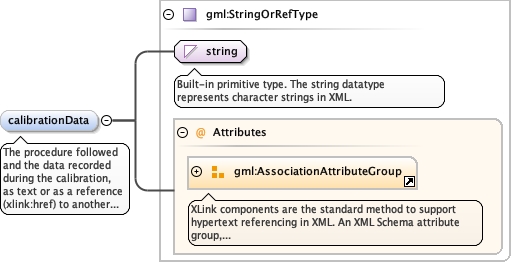

Element diggs:CalibrationType / diggs:calibrationData
Namespace http://diggsml.org/schemas/3
Annotations

The procedure followed and the data recorded during the
calibration, as text or as a reference (xlink:href) to another
object or an external file such as the calibration
certificate.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_StringOrRefType.tmp#StringOrRefType
Type gml:StringOrRefType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="calibrationData" type="gml:StringOrRefType">
  <annotation>
    <documentation>The procedure followed and the data recorded during the calibration, as text or as a reference (xlink:href) to another object or an external file such as the calibration certificate.</documentation>
  </annotation>
</element>

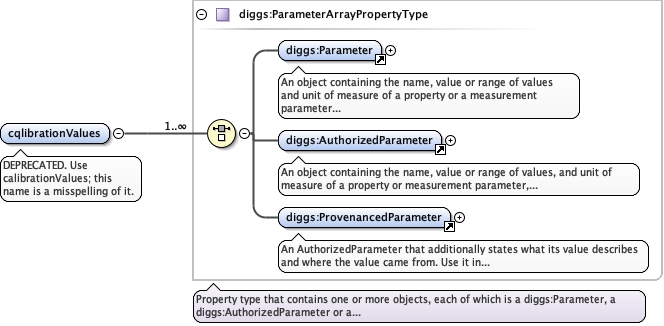

Element diggs:CalibrationType / diggs:cqlibrationValues
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use calibrationValues; this name is a
misspelling of it.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterArrayPropertyType.tmp#ParameterArrayPropertyType
Type diggs:ParameterArrayPropertyType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:cqlibrationValues xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:cqlibrationValues>
Source

<element name="cqlibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="1" maxOccurs="1">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" replacedBy="diggs:calibrationValues"/>
    </appinfo>
    <documentation>DEPRECATED. Use calibrationValues; this name is a misspelling of it.</documentation>
  </annotation>
</element>

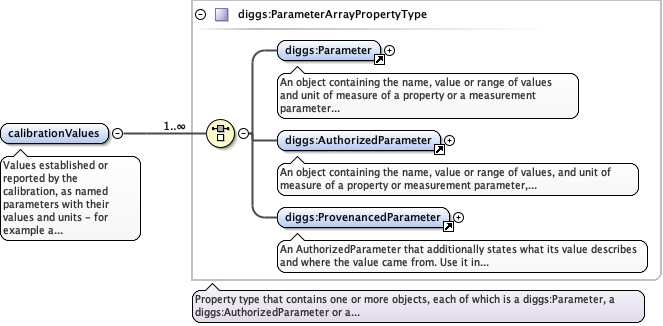

Element diggs:CalibrationType / diggs:calibrationValues
Namespace http://diggsml.org/schemas/3
Annotations

Values established or reported by the calibration,
as named parameters with their values and units - for example a
calibration constant, resolution or uncertainty.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterArrayPropertyType.tmp#ParameterArrayPropertyType
Type diggs:ParameterArrayPropertyType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:calibrationValues xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:calibrationValues>
Source

<element name="calibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="1" maxOccurs="1">
  <annotation>
    <documentation>Values established or reported by the calibration, as named parameters with their values and units - for example a calibration constant, resolution or uncertainty.</documentation>
  </annotation>
</element>
Element diggs:CalibrationType / diggs:certificateNumber
Namespace http://diggsml.org/schemas/3
Annotations

The number of the calibration certificate or report
issued for this calibration.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="certificateNumber" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The number of the calibration certificate or report issued for this calibration.</documentation>
  </annotation>
</element>

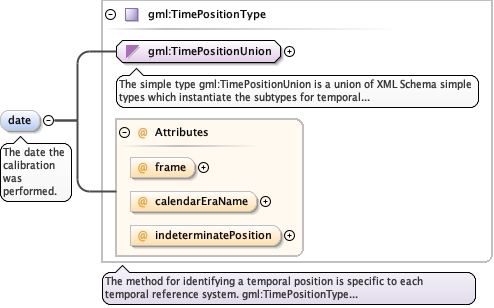

Element diggs:CalibrationType / diggs:date
Namespace http://diggsml.org/schemas/3
Annotations

The date the calibration was performed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="date" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The date the calibration was performed.</documentation>
  </annotation>
</element>

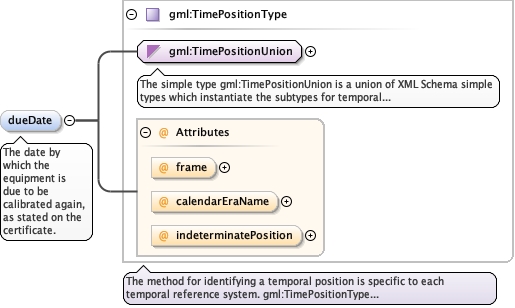

Element diggs:CalibrationType / diggs:dueDate
Namespace http://diggsml.org/schemas/3
Annotations

The date by which the equipment is due to be calibrated
again, as stated on the certificate.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="dueDate" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The date by which the equipment is due to be calibrated again, as stated on the certificate.</documentation>
  </annotation>
</element>
Element diggs:CalibrationType / diggs:useSinceLastCalibration
Namespace http://diggsml.org/schemas/3
Annotations

A note on how much the equipment has been used since the
last calibration.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="useSinceLastCalibration" type="string">
  <annotation>
    <documentation>A note on how much the equipment has been used since the last calibration.</documentation>
  </annotation>
</element>

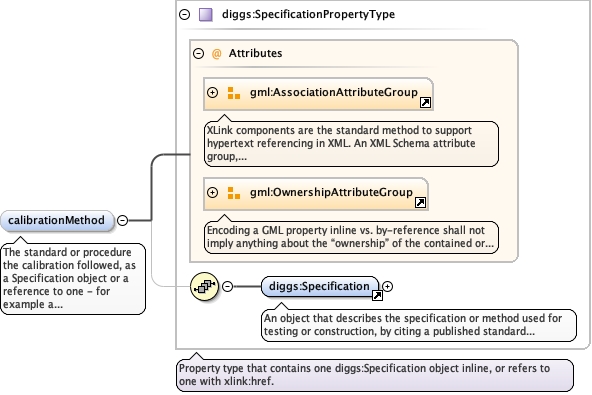

Element diggs:CalibrationType / diggs:calibrationMethod
Namespace http://diggsml.org/schemas/3
Annotations

The standard or procedure the calibration followed, as
a Specification object or a reference to one - for example a
registry entry for the standard, or the laboratory's own
procedure.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#SpecificationCommon_xsd_Complex_Type_diggs_SpecificationPropertyType.tmp#SpecificationPropertyType
Type diggs:SpecificationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Specification
Instance

<diggs:calibrationMethod xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Specification gml:id="">{1,1}</diggs:Specification>
</diggs:calibrationMethod>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" maxOccurs="unbounded" name="calibrationMethod" type="diggs:SpecificationPropertyType">
  <annotation>
    <documentation>The standard or procedure the calibration followed, as a Specification object or a reference to one - for example a registry entry for the standard, or the laboratory's own procedure.</documentation>
  </annotation>
</element>

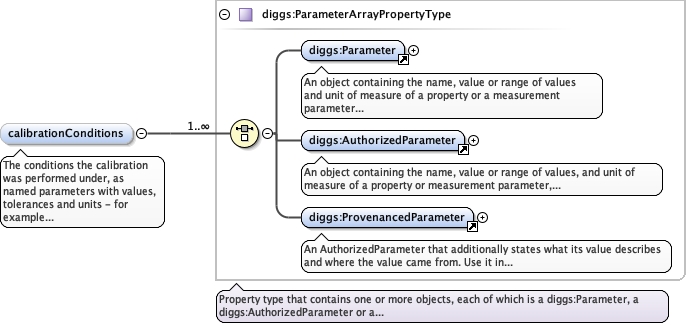

Element diggs:CalibrationType / diggs:calibrationConditions
Namespace http://diggsml.org/schemas/3
Annotations

The conditions the calibration was performed under, as
named parameters with values, tolerances and units - for example
ambient temperature and humidity.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterArrayPropertyType.tmp#ParameterArrayPropertyType
Type diggs:ParameterArrayPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:calibrationConditions xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:calibrationConditions>
Source

<element minOccurs="0" name="calibrationConditions" type="diggs:ParameterArrayPropertyType">
  <annotation>
    <documentation>The conditions the calibration was performed under, as named parameters with values, tolerances and units - for example ambient temperature and humidity.</documentation>
  </annotation>
</element>

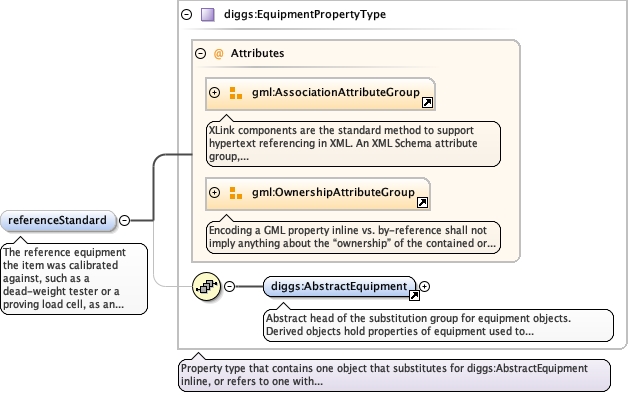

Element diggs:CalibrationType / diggs:referenceStandard
Namespace http://diggsml.org/schemas/3
Annotations

The reference equipment the item was calibrated
against, such as a dead-weight tester or a proving load cell, as an
Equipment object or a reference to one. The reference equipment's
own certificate, due date and traceability are carried by its
calibrationAuditTrail.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:referenceStandard xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{1,1}</diggs:AbstractEquipment>
</diggs:referenceStandard>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" maxOccurs="unbounded" name="referenceStandard" type="diggs:EquipmentPropertyType">
  <annotation>
    <appinfo>diggs:AbstractEquipment</appinfo>
    <documentation>The reference equipment the item was calibrated against, such as a dead-weight tester or a proving load cell, as an Equipment object or a reference to one. The reference equipment's own certificate, due date and traceability are carried by its calibrationAuditTrail.</documentation>
  </annotation>
</element>

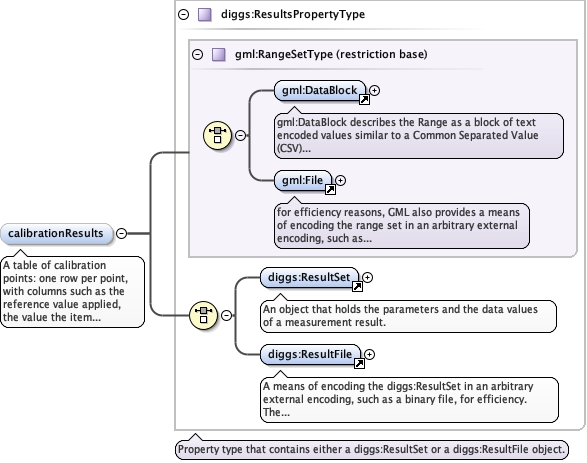

Element diggs:CalibrationType / diggs:calibrationResults
Namespace http://diggsml.org/schemas/3
Annotations

A table of calibration points: one row per point, with
columns such as the reference value applied, the value the item
indicated, the deviation between them and the expanded uncertainty
at that point. The columns, their units and their order are
declared by the table's parameters. An item calibrated over more
than one range or quantity carries one table for each.
Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_DataBlock.tmp#DataBlockgml3_2Profile_diggs_xsd_Element_gml_File.tmp#Filegml3_2Profile_diggs_xsd_Complex_Type_gml_RangeSetType.tmp#RangeSetTypeCommon_xsd_Element_diggs_ResultSet.tmp#ResultSetCommon_xsd_Element_diggs_ResultFile.tmp#ResultFileCommon_xsd_Complex_Type_diggs_ResultsPropertyType.tmp#ResultsPropertyType
Type diggs:ResultsPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:ResultFile, diggs:ResultSet
Instance

<diggs:calibrationResults xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ResultSet>{1,1}</diggs:ResultSet>
  <diggs:ResultFile>{1,1}</diggs:ResultFile>
</diggs:calibrationResults>
Source

<element minOccurs="0" maxOccurs="unbounded" name="calibrationResults" type="diggs:ResultsPropertyType">
  <annotation>
    <documentation>A table of calibration points: one row per point, with columns such as the reference value applied, the value the item indicated, the deviation between them and the expanded uncertainty at that point. The columns, their units and their order are declared by the table's parameters. An item calibrated over more than one range or quantity carries one table for each.</documentation>
  </annotation>
</element>

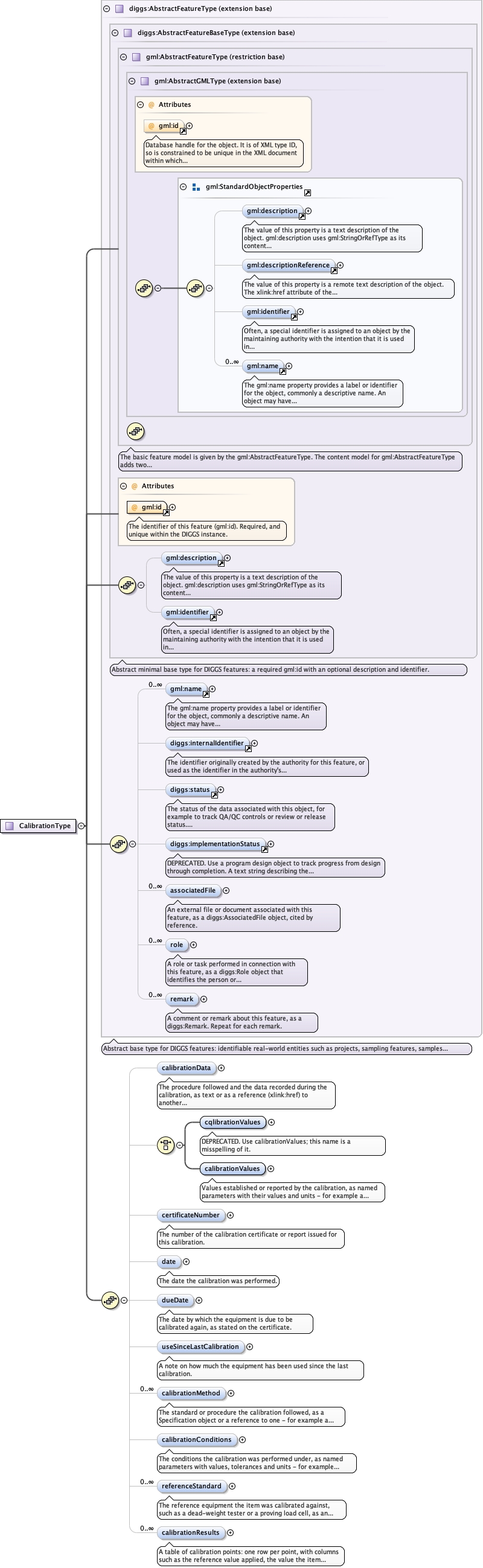

Complex Type diggs:CalibrationType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationDataCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_cqlibrationValuesCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationValuesCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_certificateNumberCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_dateCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_dueDateCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_useSinceLastCalibrationCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationMethodCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationConditionsCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_referenceStandardCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationResults
Type extension of diggs:AbstractFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationConditions, diggs:calibrationData, diggs:calibrationMethod, diggs:calibrationResults, diggs:calibrationValues, diggs:certificateNumber, diggs:cqlibrationValues, diggs:date, diggs:dueDate, diggs:implementationStatus, diggs:internalIdentifier, diggs:referenceStandard, diggs:remark, diggs:role, diggs:status, diggs:useSinceLastCalibration, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="CalibrationType">
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element minOccurs="0" name="calibrationData" type="gml:StringOrRefType">
          <annotation>
            <documentation>The procedure followed and the data recorded during the calibration, as text or as a reference (xlink:href) to another object or an external file such as the calibration certificate.</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <element name="cqlibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="1" maxOccurs="1">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:calibrationValues"/>
              </appinfo>
              <documentation>DEPRECATED. Use calibrationValues; this name is a misspelling of it.</documentation>
            </annotation>
          </element>
          <element name="calibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="1" maxOccurs="1">
            <annotation>
              <documentation>Values established or reported by the calibration, as named parameters with their values and units - for example a calibration constant, resolution or uncertainty.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="certificateNumber" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The number of the calibration certificate or report issued for this calibration.</documentation>
          </annotation>
        </element>
        <element name="date" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The date the calibration was performed.</documentation>
          </annotation>
        </element>
        <element name="dueDate" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The date by which the equipment is due to be calibrated again, as stated on the certificate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="useSinceLastCalibration" type="string">
          <annotation>
            <documentation>A note on how much the equipment has been used since the last calibration.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="calibrationMethod" type="diggs:SpecificationPropertyType">
          <annotation>
            <documentation>The standard or procedure the calibration followed, as a Specification object or a reference to one - for example a registry entry for the standard, or the laboratory's own procedure.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="calibrationConditions" type="diggs:ParameterArrayPropertyType">
          <annotation>
            <documentation>The conditions the calibration was performed under, as named parameters with values, tolerances and units - for example ambient temperature and humidity.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="referenceStandard" type="diggs:EquipmentPropertyType">
          <annotation>
            <appinfo>diggs:AbstractEquipment</appinfo>
            <documentation>The reference equipment the item was calibrated against, such as a dead-weight tester or a proving load cell, as an Equipment object or a reference to one. The reference equipment's own certificate, due date and traceability are carried by its calibrationAuditTrail.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="calibrationResults" type="diggs:ResultsPropertyType">
          <annotation>
            <documentation>A table of calibration points: one row per point, with columns such as the reference value applied, the value the item indicated, the deviation between them and the expanded uncertainty at that point. The columns, their units and their order are declared by the table's parameters. An item calibrated over more than one range or quantity carries one table for each.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
