Element diggs:Specification
Namespace http://diggsml.org/schemas/3
Annotations

An object that describes the specification or method used for testing or
construction, by citing a published standard or a clause of one: an ASTM or AASHTO
method, a national standard, a project specification clause. Its properties identify
the document rather than state requirements: standardReferenceNumber, standardTitle,
standardVersion, standardPart, standardClause and the accrediting body. Not to be
confused with diggs:AbstractProgramSpecification. diggs:Specification is a component
object, a procedure that substitutes diggs:AbstractProcedure, held by
diggs:SpecificationPropertyType wherever a feature says which method it followed; it
states no requirement of its own, because the requirement lives in the cited
document. diggs:AbstractProgramSpecification is a feature head whose members are
features a program issues, carrying the tolerances and acceptance limits the work is
judged against and the scope over which they apply; a realized feature cites one
through diggs:programSpecificationRef. If it was published by a standards body or
written into a contract and you are pointing at it, use diggs:Specification; if your
program is issuing the requirement itself, use a member of
diggs:AbstractProgramSpecification.

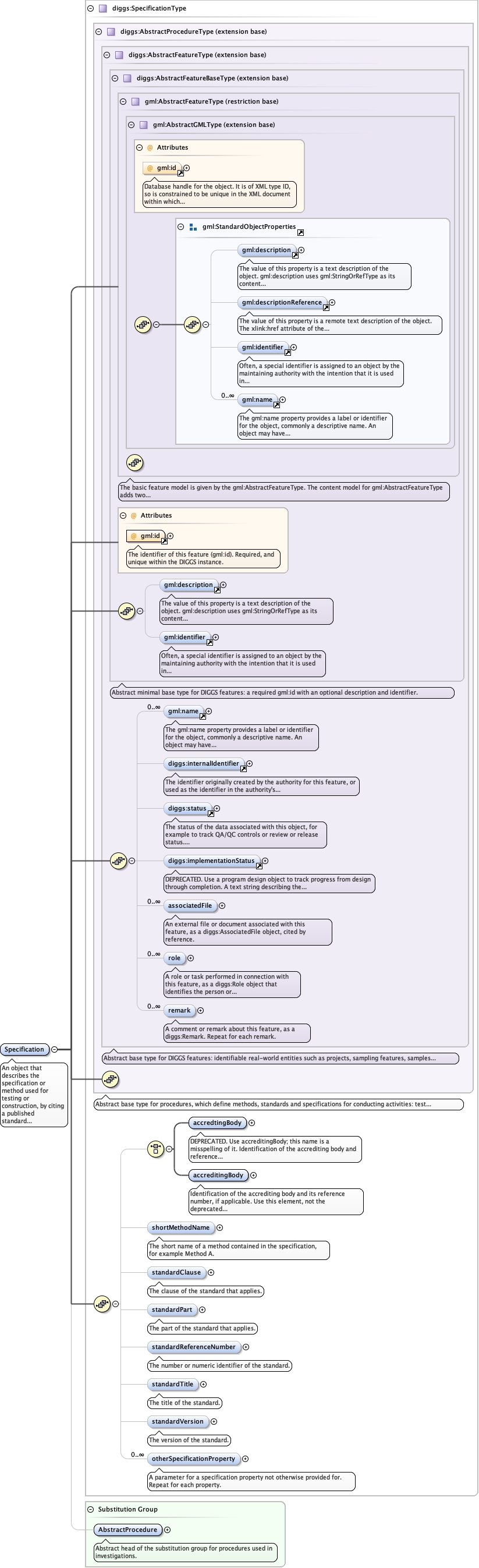

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_accredtingBodyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_accreditingBodyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_shortMethodNameCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardClauseCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardPartCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardReferenceNumberCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardTitleCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardVersionCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_otherSpecificationPropertyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationTypeAbstractTypes_xsd_Element_diggs_AbstractProcedure.tmp#AbstractProcedure
Type diggs:SpecificationType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Used by
Model
Children diggs:accreditingBody, diggs:accredtingBody, diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecificationProperty, diggs:remark, diggs:role, diggs:shortMethodName, diggs:standardClause, diggs:standardPart, diggs:standardReferenceNumber, diggs:standardTitle, diggs:standardVersion, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:Specification gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:accredtingBody>{1,1}</diggs:accredtingBody>
  <diggs:accreditingBody>{1,1}</diggs:accreditingBody>
  <diggs:shortMethodName>{0,1}</diggs:shortMethodName>
  <diggs:standardClause>{0,1}</diggs:standardClause>
  <diggs:standardPart>{0,1}</diggs:standardPart>
  <diggs:standardReferenceNumber>{0,1}</diggs:standardReferenceNumber>
  <diggs:standardTitle>{0,1}</diggs:standardTitle>
  <diggs:standardVersion>{0,1}</diggs:standardVersion>
  <diggs:otherSpecificationProperty>{0,unbounded}</diggs:otherSpecificationProperty>
</diggs:Specification>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Specification" type="diggs:SpecificationType" substitutionGroup="diggs:AbstractProcedure" abstract="false">
  <annotation>
    <documentation>An object that describes the specification or method used for testing or construction, by citing a published standard or a clause of one: an ASTM or AASHTO method, a national standard, a project specification clause. Its properties identify the document rather than state requirements: standardReferenceNumber, standardTitle, standardVersion, standardPart, standardClause and the accrediting body. Not to be confused with diggs:AbstractProgramSpecification. diggs:Specification is a component object, a procedure that substitutes diggs:AbstractProcedure, held by diggs:SpecificationPropertyType wherever a feature says which method it followed; it states no requirement of its own, because the requirement lives in the cited document. diggs:AbstractProgramSpecification is a feature head whose members are features a program issues, carrying the tolerances and acceptance limits the work is judged against and the scope over which they apply; a realized feature cites one through diggs:programSpecificationRef. If it was published by a standards body or written into a contract and you are pointing at it, use diggs:Specification; if your program is issuing the requirement itself, use a member of diggs:AbstractProgramSpecification.</documentation>
  </annotation>
</element>
