Complex Type diggs:RegisteredSpecificationPropertyType
Namespace http://diggsml.org/schemas/3
Annotations
Property type containing one plain diggs:Specification, as held by a
                registry entry.

                Deliberately carries NO gml:AssociationAttributeGroup, for the same reason
                diggs:SpecificationRegistryEntryPropertyType does not: a registry holds its
                Specifications by value. If this permitted xlink:href, a registry could register a
                standard it does not itself contain, and the canonical copy would stop being
                canonical.

                Distinct from diggs:SpecificationPropertyType (core/Common.xsd), which DOES carry
                the association group - that is what lets an instance document cite a registry entry
                by reference in the first place.

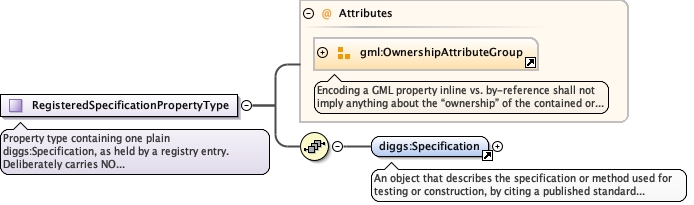

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#Specification
Used by
Model
Children diggs:Specification
Attributes
QName Type Default Use
owns boolean false optional
Source
<complexType name="RegisteredSpecificationPropertyType">
  <annotation>
    <documentation>Property type containing one plain diggs:Specification, as held by a registry entry. Deliberately carries NO gml:AssociationAttributeGroup, for the same reason diggs:SpecificationRegistryEntryPropertyType does not: a registry holds its Specifications by value. If this permitted xlink:href, a registry could register a standard it does not itself contain, and the canonical copy would stop being canonical. Distinct from diggs:SpecificationPropertyType (core/Common.xsd), which DOES carry the association group - that is what lets an instance document cite a registry entry by reference in the first place.</documentation>
  </annotation>
  <sequence>
    <element ref="diggs:Specification"/>
  </sequence>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
