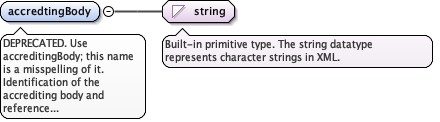

Element diggs:SpecificationType / diggs:accredtingBody
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use accreditingBody; this name is a
misspelling of it. Identification of the accrediting body and
reference number, if applicable.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="accredtingBody" type="string">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" replacedBy="diggs:accreditingBody"/>
    </appinfo>
    <documentation>DEPRECATED. Use accreditingBody; this name is a misspelling of it. Identification of the accrediting body and reference number, if applicable.</documentation>
  </annotation>
</element>

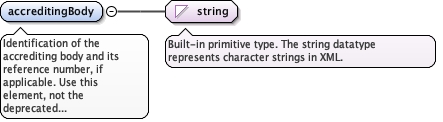

Element diggs:SpecificationType / diggs:accreditingBody
Namespace http://diggsml.org/schemas/3
Annotations

Identification of the accrediting body and its reference number,
if applicable. Use this element, not the deprecated
accredtingBody.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="accreditingBody" type="string">
  <annotation>
    <documentation>Identification of the accrediting body and its reference number, if applicable. Use this element, not the deprecated accredtingBody.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:shortMethodName
Namespace http://diggsml.org/schemas/3
Annotations

The short name of a method contained in the specification, for
example Method A.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="shortMethodName" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The short name of a method contained in the specification, for example Method A.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardClause
Namespace http://diggsml.org/schemas/3
Annotations

The clause of the standard that applies.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardClause" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The clause of the standard that applies.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardPart
Namespace http://diggsml.org/schemas/3
Annotations

The part of the standard that applies.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardPart" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The part of the standard that applies.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardReferenceNumber
Namespace http://diggsml.org/schemas/3
Annotations

The number or numeric identifier of the standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardReferenceNumber" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The number or numeric identifier of the standard.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardTitle
Namespace http://diggsml.org/schemas/3
Annotations

The title of the standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardTitle" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The title of the standard.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardVersion
Namespace http://diggsml.org/schemas/3
Annotations

The version of the standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardVersion" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The version of the standard.</documentation>
  </annotation>
</element>

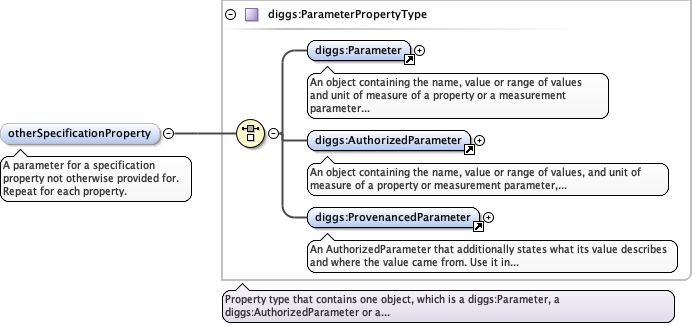

Element diggs:SpecificationType / diggs:otherSpecificationProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for a specification property not otherwise provided for.
Repeat for each property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherSpecificationProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherSpecificationProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherSpecificationProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter for a specification property not otherwise provided for. Repeat for each property.</documentation>
  </annotation>
</element>

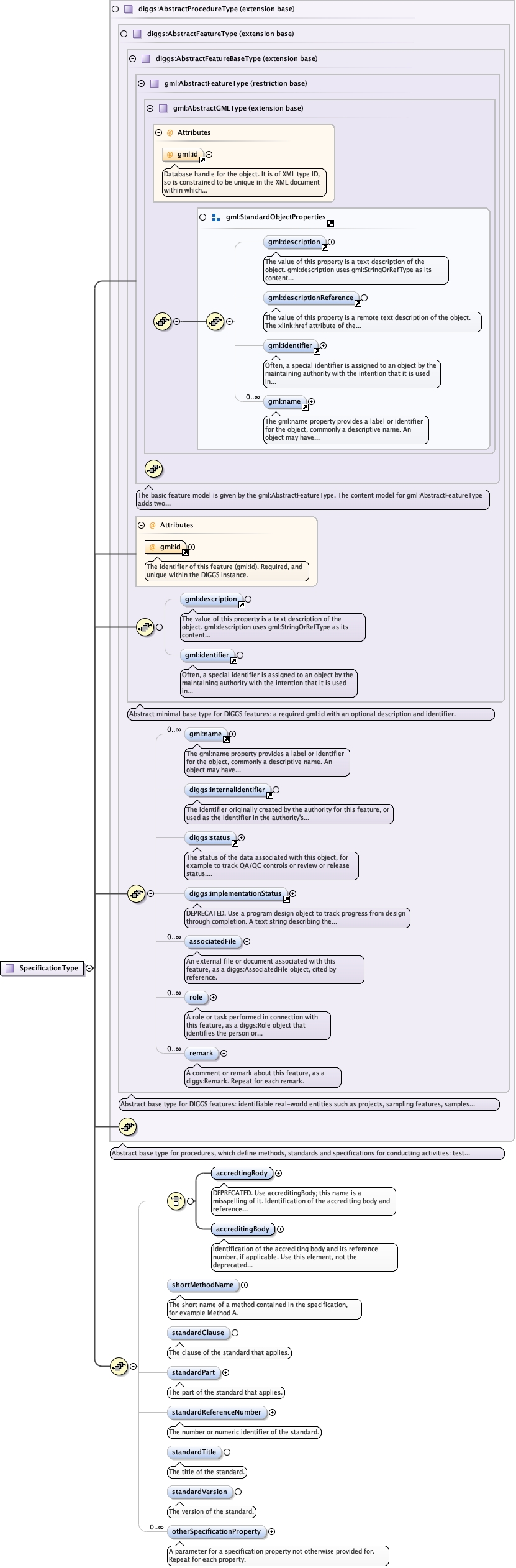

Complex Type diggs:SpecificationType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_accredtingBodyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_accreditingBodyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_shortMethodNameCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardClauseCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardPartCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardReferenceNumberCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardTitleCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardVersionCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_otherSpecificationProperty
Type extension of diggs:AbstractProcedureType
Type hierarchy
Used by
Model
Children diggs:accreditingBody, diggs:accredtingBody, diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecificationProperty, diggs:remark, diggs:role, diggs:shortMethodName, diggs:standardClause, diggs:standardPart, diggs:standardReferenceNumber, diggs:standardTitle, diggs:standardVersion, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SpecificationType">
  <complexContent>
    <extension base="diggs:AbstractProcedureType">
      <sequence>
        <choice minOccurs="0" maxOccurs="1">
          <element name="accredtingBody" type="string">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:accreditingBody"/>
              </appinfo>
              <documentation>DEPRECATED. Use accreditingBody; this name is a misspelling of it. Identification of the accrediting body and reference number, if applicable.</documentation>
            </annotation>
          </element>
          <element name="accreditingBody" type="string">
            <annotation>
              <documentation>Identification of the accrediting body and its reference number, if applicable. Use this element, not the deprecated accredtingBody.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="shortMethodName" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The short name of a method contained in the specification, for example Method A.</documentation>
          </annotation>
        </element>
        <element name="standardClause" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The clause of the standard that applies.</documentation>
          </annotation>
        </element>
        <element name="standardPart" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The part of the standard that applies.</documentation>
          </annotation>
        </element>
        <element name="standardReferenceNumber" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The number or numeric identifier of the standard.</documentation>
          </annotation>
        </element>
        <element name="standardTitle" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The title of the standard.</documentation>
          </annotation>
        </element>
        <element name="standardVersion" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The version of the standard.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherSpecificationProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter for a specification property not otherwise provided for. Repeat for each property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
