Element diggs:AuthorizedParameter
Namespace http://diggsml.org/schemas/3
Annotations

An object containing the name, value or range of values, and unit of measure of a
property or measurement parameter, where the name is bound to a definition in a
properties dictionary and the data type of the value is declared. Use it in
preference to diggs:Parameter wherever the parameter reported has a dictionary
definition: a consumer can then type the value and check it against the definition
without inferring anything from its lexical form. Use diggs:Parameter where the name
is genuinely uncontrolled. It is accepted anywhere diggs:ParameterPropertyType or
diggs:ParameterArrayPropertyType is used.

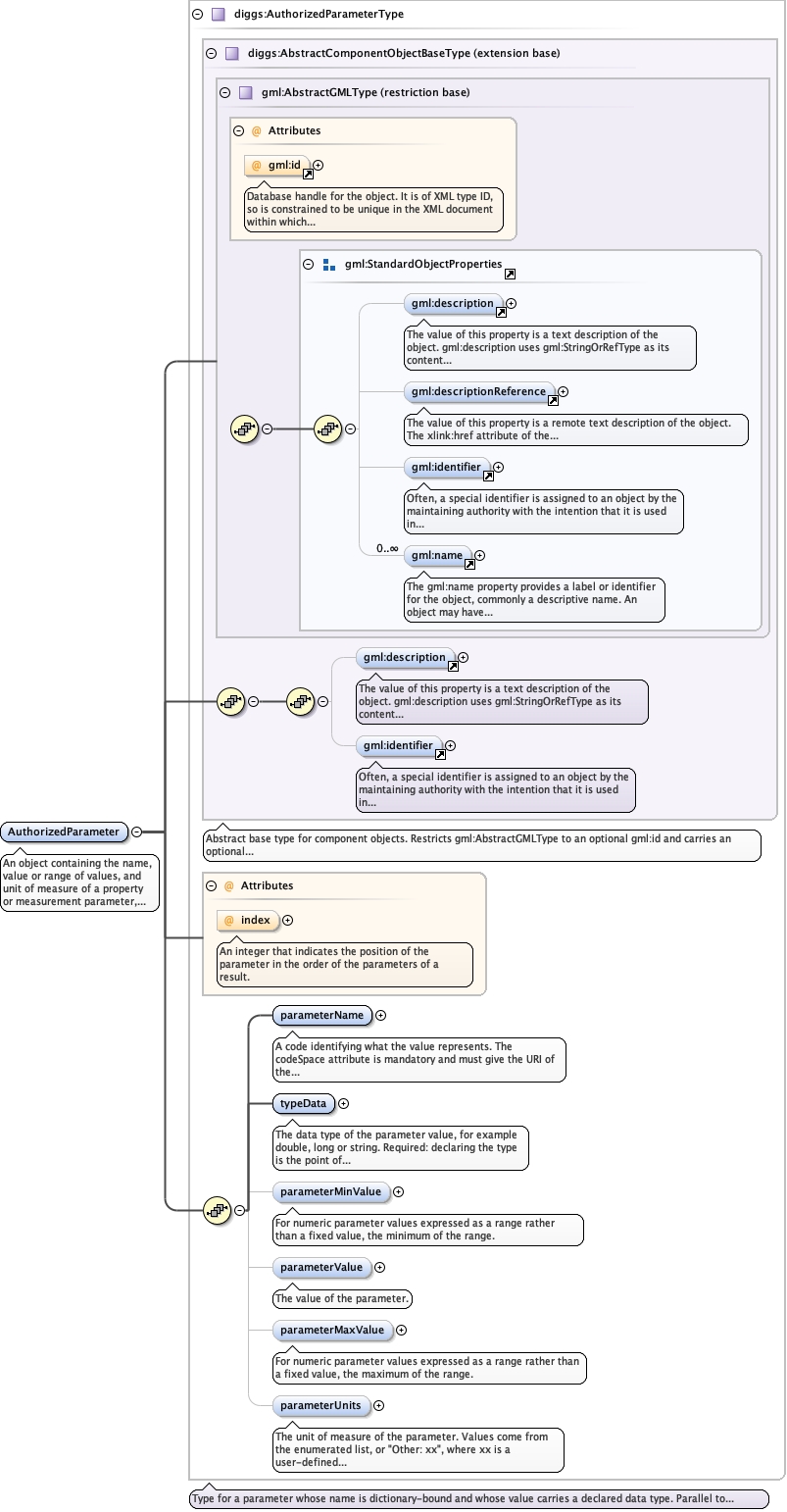

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_indexCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterNameCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_typeDataCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMinValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMaxValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterUnitsCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType
Type diggs:AuthorizedParameterType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue, diggs:typeData, gml:description, gml:identifier
Instance

<diggs:AuthorizedParameter gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:parameterName codeSpace="">{1,1}</diggs:parameterName>
  <diggs:typeData>{1,1}</diggs:typeData>
  <diggs:parameterMinValue>{0,1}</diggs:parameterMinValue>
  <diggs:parameterValue>{0,1}</diggs:parameterValue>
  <diggs:parameterMaxValue>{0,1}</diggs:parameterMaxValue>
  <diggs:parameterUnits>{0,1}</diggs:parameterUnits>
</diggs:AuthorizedParameter>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger optional
An integer that indicates the position of the parameter in the order of
the parameters of a result.
Source

<element name="AuthorizedParameter" type="diggs:AuthorizedParameterType">
  <annotation>
    <documentation>An object containing the name, value or range of values, and unit of measure of a property or measurement parameter, where the name is bound to a definition in a properties dictionary and the data type of the value is declared. Use it in preference to diggs:Parameter wherever the parameter reported has a dictionary definition: a consumer can then type the value and check it against the definition without inferring anything from its lexical form. Use diggs:Parameter where the name is genuinely uncontrolled. It is accepted anywhere diggs:ParameterPropertyType or diggs:ParameterArrayPropertyType is used.</documentation>
  </annotation>
</element>
