Complex Type diggs:ParameterArrayPropertyType
Namespace http://diggsml.org/schemas/3
Annotations
Property type that contains one or more objects, each of which is a diggs:Parameter,
a diggs:AuthorizedParameter or a diggs:ProvenancedParameter inline. Use
diggs:Parameter where the parameter name is uncontrolled free text;
diggs:AuthorizedParameter where the name is bound to a dictionary definition and the
data type of the value is declared; diggs:ProvenancedParameter where, in addition,
the subject and source of the value need stating. The types can be mixed in one
array and given in any order.

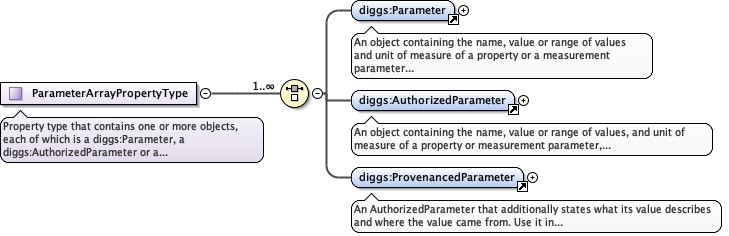

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameter
Used by
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Source
<complexType name="ParameterArrayPropertyType">
  <annotation>
    <documentation>Property type that contains one or more objects, each of which is a diggs:Parameter, a diggs:AuthorizedParameter or a diggs:ProvenancedParameter inline. Use diggs:Parameter where the parameter name is uncontrolled free text; diggs:AuthorizedParameter where the name is bound to a dictionary definition and the data type of the value is declared; diggs:ProvenancedParameter where, in addition, the subject and source of the value need stating. The types can be mixed in one array and given in any order.</documentation>
  </annotation>
  <choice maxOccurs="unbounded" minOccurs="1">
    <element ref="diggs:Parameter"/>
    <element ref="diggs:AuthorizedParameter"/>
    <element ref="diggs:ProvenancedParameter"/>
  </choice>
</complexType>
