Schema documentation for component diggs:Parameter

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:Parameter

Namespace

http://diggsml.org/schemas/3

Annotations

An object containing the name, value or range of values and unit of
measure of a property or a measurement parameter (result).

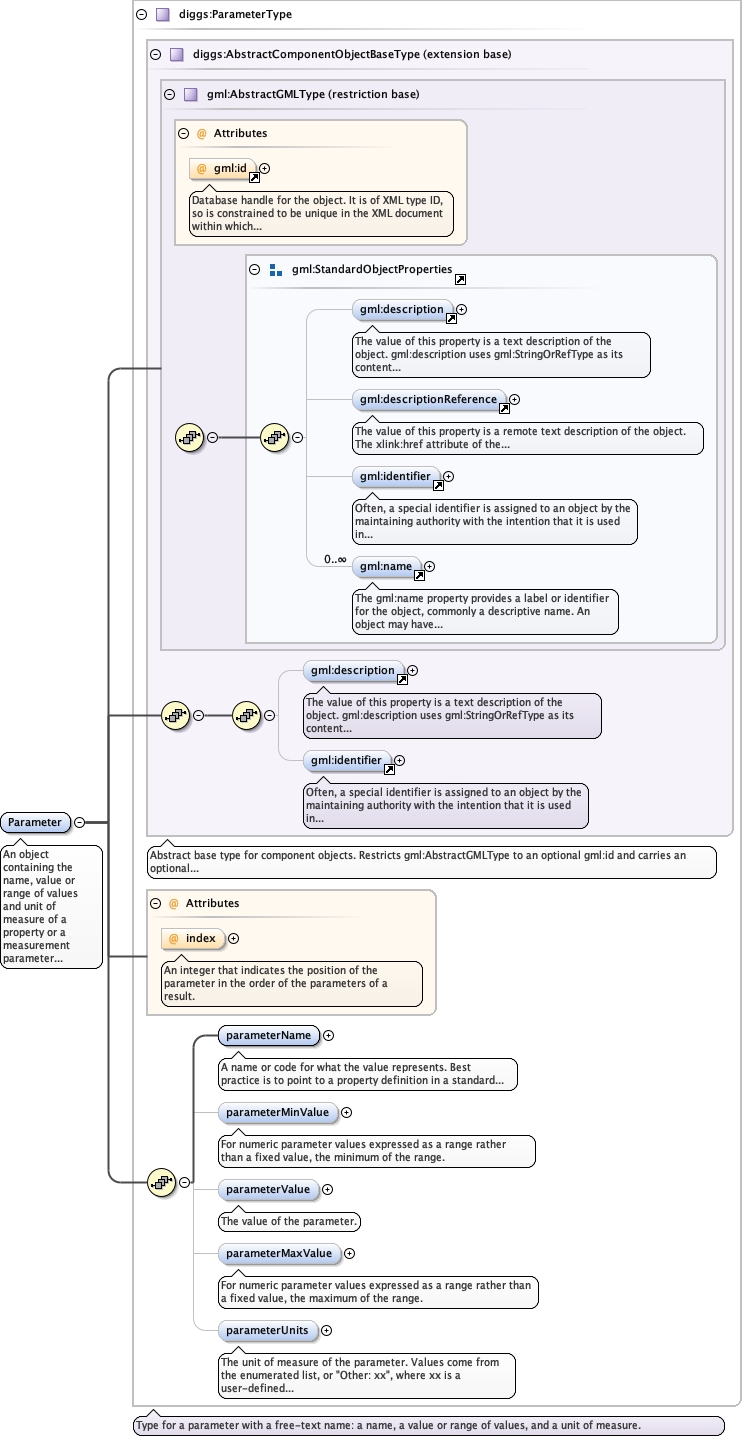

Diagram

Type

diggs:ParameterType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractComponentObjectBaseType
  - diggs:ParameterType

Properties

content

complex

Used by

Complex Types

diggs:ParameterArrayPropertyType, diggs:ParameterPropertyType

Model

gml:description{0,1} , gml:identifier{0,1} , diggs:parameterName , diggs:parameterMinValue{0,1} , diggs:parameterValue{0,1} , diggs:parameterMaxValue{0,1} , diggs:parameterUnits{0,1}

Children

diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue, gml:description, gml:identifier

Instance

<diggs:Parameter gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:parameterName codeSpace="">{1,1}</diggs:parameterName>
  <diggs:parameterMinValue>{0,1}</diggs:parameterMinValue>
  <diggs:parameterValue>{0,1}</diggs:parameterValue>
  <diggs:parameterMaxValue>{0,1}</diggs:parameterMaxValue>
  <diggs:parameterUnits>{0,1}</diggs:parameterUnits>
</diggs:Parameter>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

index

positiveInteger

optional

An integer that indicates the position of the parameter in the order of
the parameters of a result.

Source

<element name="Parameter" type="diggs:ParameterType">
  <annotation>
    <documentation>An object containing the name, value or range of values and unit of measure of a property or a measurement parameter (result).</documentation>
  </annotation>
</element>
