Element diggs:ProvenancedParameter
Namespace http://diggsml.org/schemas/3
Annotations

An AuthorizedParameter that additionally states what its value describes and where
the value came from. Use it in preference to diggs:AuthorizedParameter wherever the
provenance of a value needs to be traceable, such as a design or basis value derived
from, or assigned on the strength of, specific evidence. It is accepted anywhere
diggs:ParameterPropertyType or diggs:ParameterArrayPropertyType is used.

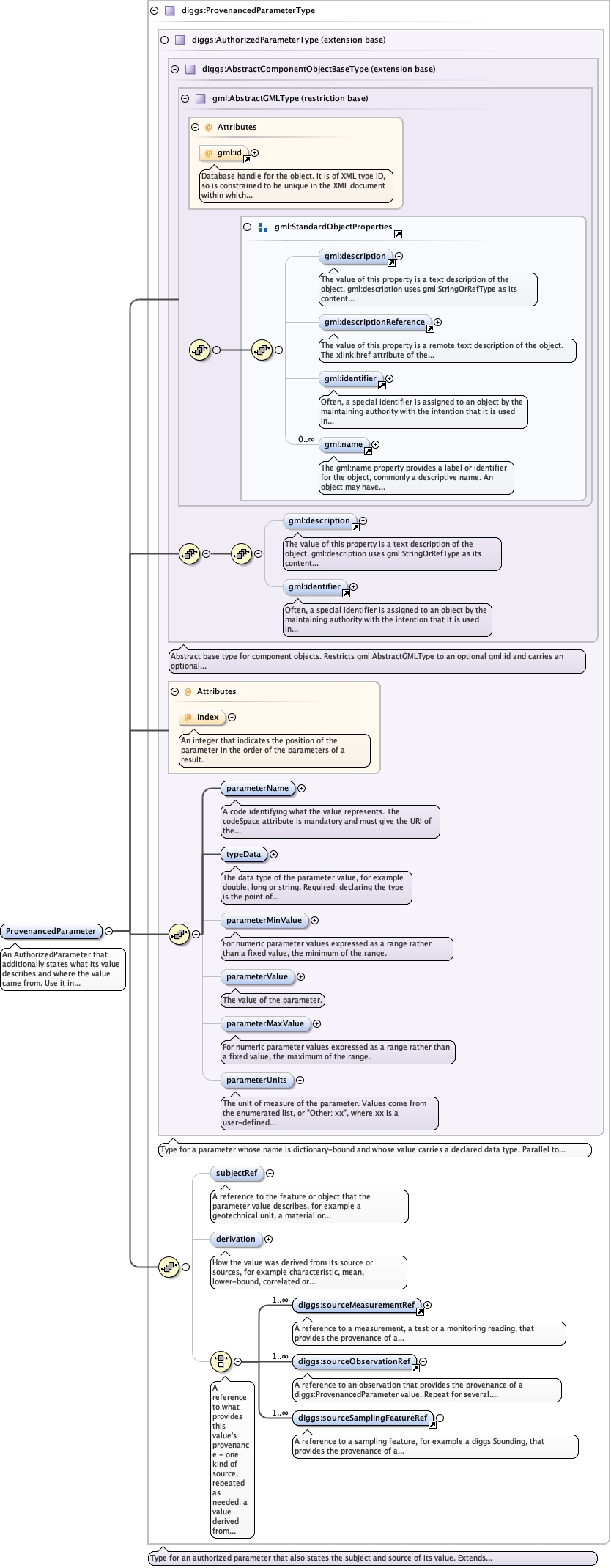

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_indexCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterNameCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_typeDataCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMinValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterMaxValueCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterType_parameterUnitsCommon_xsd_Complex_Type_diggs_AuthorizedParameterType.tmp#AuthorizedParameterTypeCommon_xsd_Complex_Type_diggs_ProvenancedParameterType.tmp#ProvenancedParameterType_subjectRefCommon_xsd_Complex_Type_diggs_ProvenancedParameterType.tmp#ProvenancedParameterType_derivationCommon_xsd_Element_diggs_sourceMeasurementRef.tmp#sourceMeasurementRefCommon_xsd_Element_diggs_sourceObservationRef.tmp#sourceObservationRefCommon_xsd_Element_diggs_sourceSamplingFeatureRef.tmp#sourceSamplingFeatureRefCommon_xsd_Complex_Type_diggs_ProvenancedParameterType.tmp#ProvenancedParameterType
Type diggs:ProvenancedParameterType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:derivation, diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue, diggs:sourceMeasurementRef, diggs:sourceObservationRef, diggs:sourceSamplingFeatureRef, diggs:subjectRef, diggs:typeData, gml:description, gml:identifier
Instance

<diggs:ProvenancedParameter gml:id="" index="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:parameterName codeSpace="">{1,1}</diggs:parameterName>
  <diggs:typeData>{1,1}</diggs:typeData>
  <diggs:parameterMinValue>{0,1}</diggs:parameterMinValue>
  <diggs:parameterValue>{0,1}</diggs:parameterValue>
  <diggs:parameterMaxValue>{0,1}</diggs:parameterMaxValue>
  <diggs:parameterUnits>{0,1}</diggs:parameterUnits>
  <diggs:subjectRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:subjectRef>
  <diggs:derivation codeSpace="">{0,1}</diggs:derivation>
  <diggs:sourceMeasurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:sourceMeasurementRef>
  <diggs:sourceObservationRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:sourceObservationRef>
  <diggs:sourceSamplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:sourceSamplingFeatureRef>
</diggs:ProvenancedParameter>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger optional
An integer that indicates the position of the parameter in the order of
the parameters of a result.
Source

<element name="ProvenancedParameter" type="diggs:ProvenancedParameterType">
  <annotation>
    <documentation>An AuthorizedParameter that additionally states what its value describes and where the value came from. Use it in preference to diggs:AuthorizedParameter wherever the provenance of a value needs to be traceable, such as a design or basis value derived from, or assigned on the strength of, specific evidence. It is accepted anywhere diggs:ParameterPropertyType or diggs:ParameterArrayPropertyType is used.</documentation>
  </annotation>
</element>
