Element diggs:sourceObservationRef
Namespace http://diggsml.org/schemas/3
Annotations

A reference to an observation that provides the provenance of a
diggs:ProvenancedParameter value. Repeat for several. Do not mix with
diggs:sourceMeasurementRef or diggs:sourceSamplingFeatureRef on the same parameter.
Given by reference only.

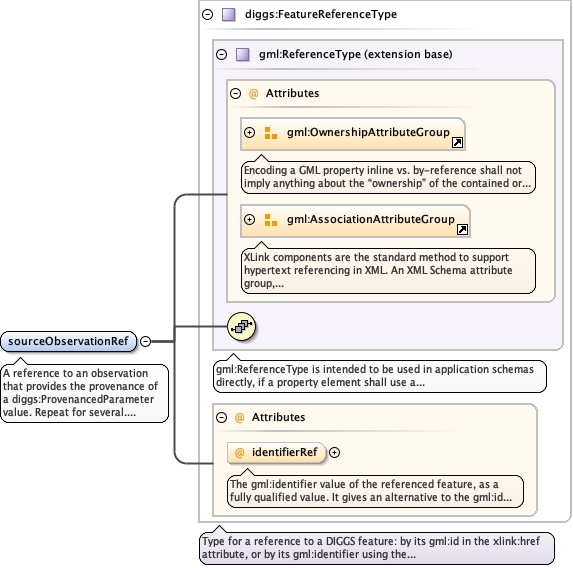

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="sourceObservationRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AbstractObservation</appinfo>
    <documentation>A reference to an observation that provides the provenance of a diggs:ProvenancedParameter value. Repeat for several. Do not mix with diggs:sourceMeasurementRef or diggs:sourceSamplingFeatureRef on the same parameter. Given by reference only.</documentation>
  </annotation>
</element>
