Complex Type diggs:FeatureReferenceType
Namespace http://diggsml.org/schemas/3
Annotations

Type for a reference to a DIGGS feature: by its gml:id in the xlink:href attribute,
or by its gml:identifier using the identifierRef attribute.

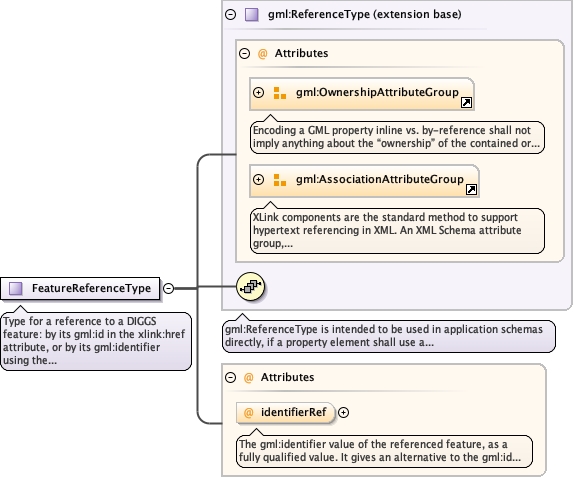

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRef
Type extension of gml:ReferenceType
Type hierarchy
Used by
Elements diggs:AbstractAcceptanceCriterionType/diggs:sourceSpecRef, diggs:AbstractProgramDesignType/diggs:nonConformanceRef, diggs:AbstractSampleType/diggs:projectRef, diggs:AcceptanceCheckType/diggs:criterionRef, diggs:AcceptanceCheckType/diggs:evidenceConstructionActivityRef, diggs:AcceptanceCheckType/diggs:evidenceMeasurementRef, diggs:AcceptanceCheckType/diggs:evidenceObservationRef, diggs:BackfillLayerType/diggs:groutRef, diggs:BackfillLayerType/diggs:groutingActivityRef, diggs:BackfillLayerType/diggs:wellOpeningRef, diggs:CompositeAcceptanceCriterionType/diggs:criterionRef, diggs:ContinuousGroutingType/diggs:penetrationGroutRef, diggs:ContinuousGroutingType/diggs:withdrawalGroutRef, diggs:DesignConstructionActivityType/diggs:samplingFeatureDesignRef, diggs:DesignGroutMixType/diggs:trialGroutBatchRef, diggs:DesignLoadType/diggs:appliesToZoneRef, diggs:DesignMeasurementType/diggs:constructionActivityDesignRef, diggs:DesignMeasurementType/diggs:samplingFeatureDesignRef, diggs:DesignRIColumnType/diggs:bearingUnitRef, diggs:DesignRIColumnType/diggs:groutDesignRef, diggs:DesignSampleType/diggs:constructionActivityDesignRef, diggs:DesignVerificationType/diggs:analysisCaseRef, diggs:GeoUnitDesignQuantityType/diggs:geoUnitRef, diggs:GeophysicalFieldSurveyType/diggs:processedGeophysicalResultsRef, diggs:GeophysicalProcessingType/diggs:geophysicalFieldSurveyRef, diggs:LabCBRTestTrialType/diggs:waterContentSpecimenRef, diggs:LabCompactionTestTrialType/diggs:waterContentSpecimenRef, diggs:LoadTransferRelationType/diggs:geoUnitRef, diggs:MixedGrout-SoilSpecificationType/diggs:mixedGrout-SoilSampleRef, diggs:NonConformanceType/diggs:breachedSpecificationRef, diggs:NonConformanceType/diggs:detectedByRef, diggs:PlannedTestType/diggs:measurementSpecificationRef, diggs:PlannedTestType/diggs:specimenPrepSpecificationRef, diggs:PlannedTestType/diggs:testingScheduleRef, diggs:PorePressureElementType/diggs:saturationMethodRef, diggs:PropertyType/diggs:procedureRef, diggs:ProvenancedParameterType/diggs:subjectRef, diggs:RIColumnConstructionType/diggs:embedmentLayerRef, diggs:RIColumnType/diggs:ltpRef, diggs:ReceiverLocationsType/diggs:receiverRef, diggs:SampleDesignScopeType/diggs:sourceFeatureRef, diggs:SourceLocationsType/diggs:sourceRef, diggs:SpecificationRegistryEntryType/diggs:supersededByRef, diggs:WirelineLogType/diggs:geophysicalFieldSurveyRef, diggs:ZoneLoadTestType/diggs:testedColumnRef, diggs:associatedProjectRef, diggs:basedOnRef, diggs:basisRef, diggs:constructionActivityRef, diggs:groundModelRef, diggs:groupGroupRef, diggs:groupRef, diggs:groutRef, diggs:groutSpecificationRef, diggs:measurementGroupRef, diggs:measurementRef, diggs:observationGroupRef, diggs:observationRef, diggs:observationSystemRef, diggs:originalProjectRef, diggs:partOfSpecificationRef, diggs:programDesignRef, diggs:programRef, diggs:programSpecificationRef, diggs:projectGroupRef, diggs:projectRef, diggs:relativeToSampleRef, diggs:relativeToSamplingFeatureRef, diggs:sampleGroupRef, diggs:samplingActivityRef, diggs:samplingFeatureGroupRef, diggs:samplingFeatureRef, diggs:sensorRef, diggs:sourceMeasurementRef, diggs:sourceObservationRef, diggs:sourceSamplingFeatureRef, diggs:specimenRef, diggs_geo:PorePressureElementType/diggs_geo:saturationMethodRef, diggs_geo:WirelineLogType/diggs_geo:geophysicalFieldSurveyRef
Complex Type diggs:FractionalReferenceType
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<complexType name="FeatureReferenceType">
  <annotation>
    <documentation>Type for a reference to a DIGGS feature: by its gml:id in the xlink:href attribute, or by its gml:identifier using the identifierRef attribute.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:ReferenceType">
      <attribute name="identifierRef" type="diggs:IdentifierReferenceType" use="optional">
        <annotation>
          <documentation>The gml:identifier value of the referenced feature, as a fully qualified value. It gives an alternative to the gml:id in xlink:href for finding the referenced feature, mainly to reference a feature by a globally unique identifier and where naming conflicts occur with gml:id when accessing data in external files.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:FeatureReferenceType / @identifierRef
Namespace No namespace
Annotations

The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
Type diggs:IdentifierReferenceType
Properties
use optional
Used by
Source

<attribute name="identifierRef" type="diggs:IdentifierReferenceType" use="optional">
  <annotation>
    <documentation>The gml:identifier value of the referenced feature, as a fully qualified value. It gives an alternative to the gml:id in xlink:href for finding the referenced feature, mainly to reference a feature by a globally unique identifier and where naming conflicts occur with gml:id when accessing data in external files.</documentation>
  </annotation>
</attribute>
