Element diggs:basisRef
Namespace http://diggsml.org/schemas/3
Annotations
A reference to a program basis object: the evidence, ground model, requirement set
or other input a design or specification was prepared from. Distinct from
basedOnRef, which cites a more general object of the same kind that this one
specializes, and from programSpecificationRef, which cites a constraint the design
must satisfy.

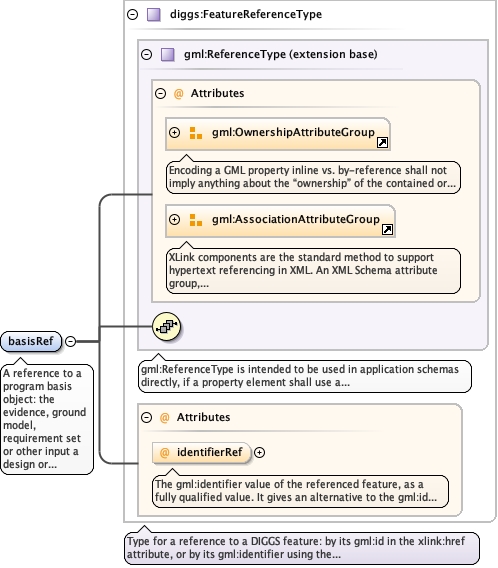

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source
<element name="basisRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AbstractProgramBasis</appinfo>
    <documentation>A reference to a program basis object: the evidence, ground model, requirement set or other input a design or specification was prepared from. Distinct from basedOnRef, which cites a more general object of the same kind that this one specializes, and from programSpecificationRef, which cites a constraint the design must satisfy.</documentation>
  </annotation>
</element>
