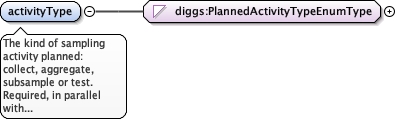

Element diggs:AbstractSamplingDesignType / diggs:activityType
Namespace http://diggsml.org/schemas/3
Annotations

The kind of sampling activity planned: collect, aggregate, subsample
or test. Required, in parallel with
diggs:AbstractSamplingActivityType/activityType on the realized
side. Values come from the enumerated list.
Diagram
DiagramCore_xsd_Simple_Type_diggs_PlannedActivityTypeEnumType.tmp#PlannedActivityTypeEnumType
Type diggs:PlannedActivityTypeEnumType
Properties
content simple
Facets
enumeration collect
The activity will create samples by collection from a sampling feature.
enumeration aggregate
The activity will create samples by aggregating existing samples; the
sampleScope of the diggs:DesignSample cites more than one sourceSampleRef.
enumeration subsample
The activity will create samples by subsampling an existing sample; the
sampleScope of the diggs:DesignSample cites exactly one sourceSampleRef.
enumeration test
The activity will produce a test, standard or blank sample that does not
relate to any field sample or sampling feature.
Source

<element name="activityType" type="diggs:PlannedActivityTypeEnumType">
  <annotation>
    <documentation>The kind of sampling activity planned: collect, aggregate, subsample or test. Required, in parallel with diggs:AbstractSamplingActivityType/activityType on the realized side. Values come from the enumerated list.</documentation>
  </annotation>
</element>

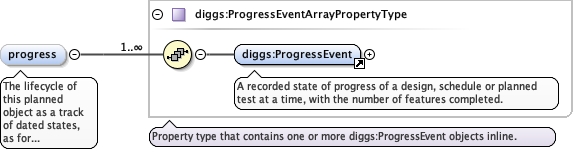

Element diggs:AbstractSamplingDesignType / diggs:progress
Namespace http://diggsml.org/schemas/3
Annotations

The lifecycle of this planned object as a track of dated states, as
for diggs:AbstractSamplingFeatureDesignType/progress.
Diagram
DiagramCore_xsd_Element_diggs_ProgressEvent.tmp#ProgressEventCore_xsd_Complex_Type_diggs_ProgressEventArrayPropertyType.tmp#ProgressEventArrayPropertyType
Type diggs:ProgressEventArrayPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:ProgressEvent
Instance

<diggs:progress xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProgressEvent gml:id="">{1,1}</diggs:ProgressEvent>
</diggs:progress>
Source

<element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
  <annotation>
    <documentation>The lifecycle of this planned object as a track of dated states, as for diggs:AbstractSamplingFeatureDesignType/progress.</documentation>
  </annotation>
</element>

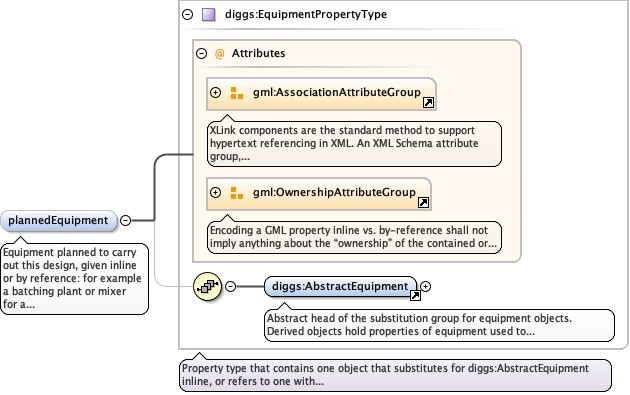

Element diggs:AbstractSamplingDesignType / diggs:plannedEquipment
Namespace http://diggsml.org/schemas/3
Annotations

Equipment planned to carry out this design, given inline or by
reference: for example a batching plant or mixer for a grout mix, or
a sampler for a collection.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:plannedEquipment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{1,1}</diggs:AbstractEquipment>
</diggs:plannedEquipment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
  <annotation>
    <documentation>Equipment planned to carry out this design, given inline or by reference: for example a batching plant or mixer for a grout mix, or a sampler for a collection.</documentation>
  </annotation>
</element>

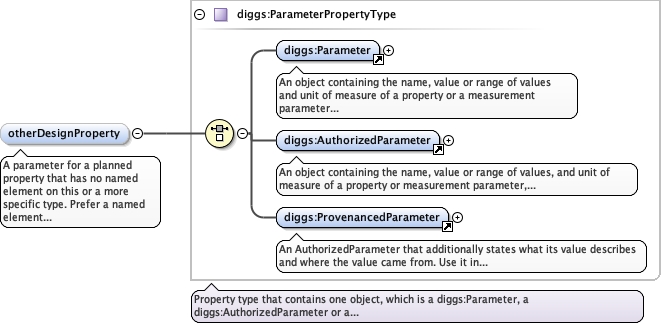

Element diggs:AbstractSamplingDesignType / diggs:otherDesignProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for a planned property that has no named element on this
or a more specific type. Prefer a named element wherever one exists.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherDesignProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherDesignProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
  </annotation>
</element>

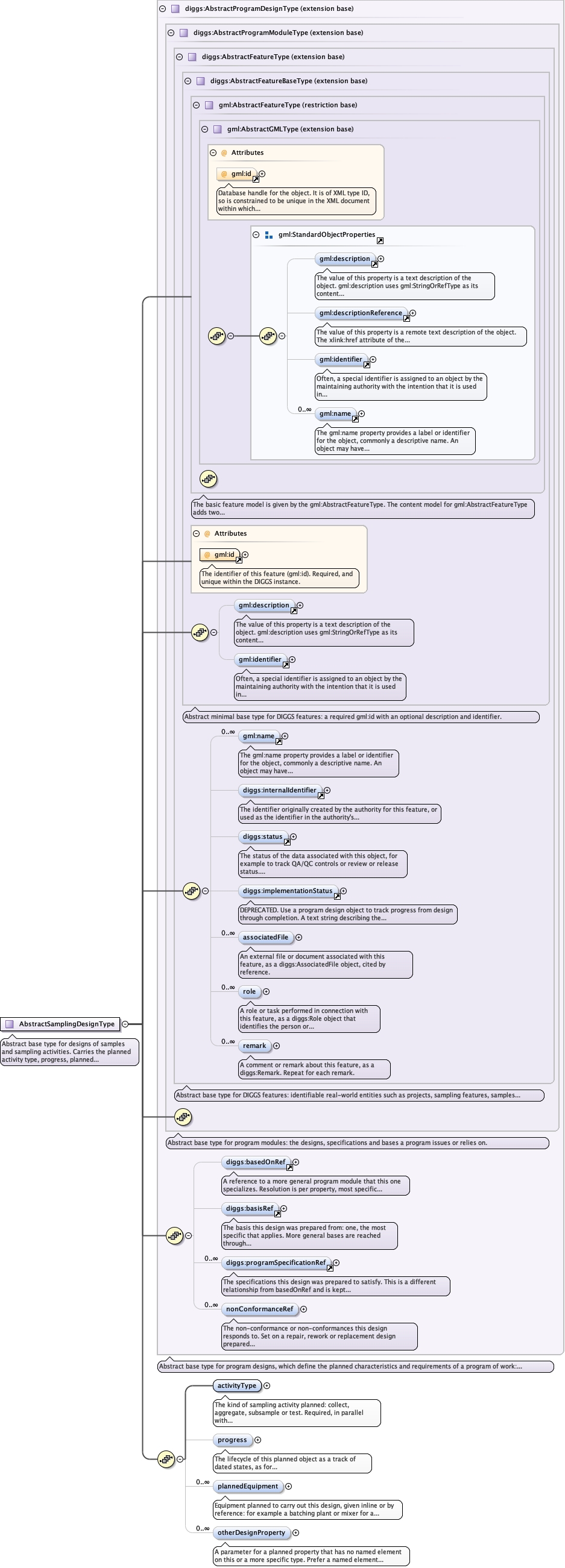

Complex Type diggs:AbstractSamplingDesignType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for designs of samples and sampling activities. Carries the
planned activity type, progress, planned equipment and other planned properties.
Scope is not declared here; the scope of a sample design
(diggs:SampleDesignScopePropertyType) is declared on diggs:DesignSampleType.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_activityTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_otherDesignProperty
Type extension of diggs:AbstractProgramDesignType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:activityType, diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractSamplingDesignType">
  <annotation>
    <documentation>Abstract base type for designs of samples and sampling activities. Carries the planned activity type, progress, planned equipment and other planned properties. Scope is not declared here; the scope of a sample design (diggs:SampleDesignScopePropertyType) is declared on diggs:DesignSampleType.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramDesignType">
      <sequence>
        <element name="activityType" type="diggs:PlannedActivityTypeEnumType">
          <annotation>
            <documentation>The kind of sampling activity planned: collect, aggregate, subsample or test. Required, in parallel with diggs:AbstractSamplingActivityType/activityType on the realized side. Values come from the enumerated list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
          <annotation>
            <documentation>The lifecycle of this planned object as a track of dated states, as for diggs:AbstractSamplingFeatureDesignType/progress.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
          <annotation>
            <documentation>Equipment planned to carry out this design, given inline or by reference: for example a batching plant or mixer for a grout mix, or a sampler for a collection.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
