Element diggs:AbstractSamplingDesign
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for designs of samples and sampling
activities. Sibling of diggs:AbstractSamplingFeatureDesign, which covers designs of
sampling features. Its members include diggs:DesignSample, for a collected or
derived sample, and diggs:DesignGroutMix, a specialization of it for a manufactured
sample.

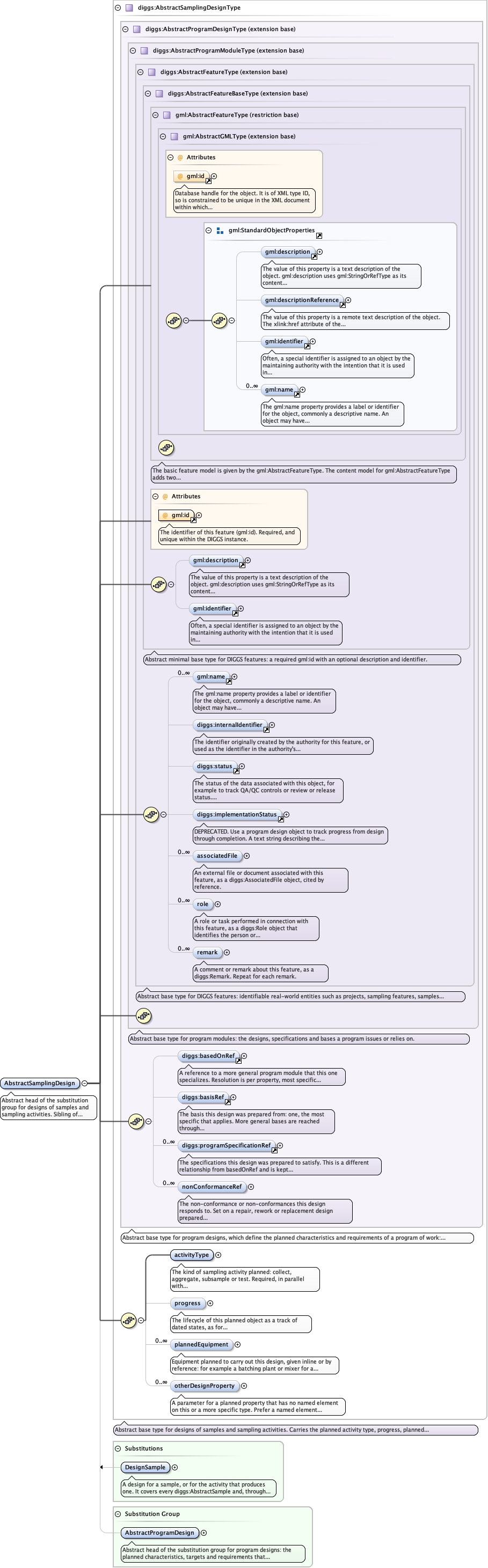

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_activityTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignType_otherDesignPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingDesignType.tmp#AbstractSamplingDesignTypeCore_xsd_Element_diggs_DesignSample.tmp#DesignSampleAbstractTypes_xsd_Element_diggs_AbstractProgramDesign.tmp#AbstractProgramDesign
Type diggs:AbstractSamplingDesignType
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Model
Children diggs:activityType, diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractSamplingDesign gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:activityType>{1,1}</diggs:activityType>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
</diggs:AbstractSamplingDesign>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractSamplingDesign" type="diggs:AbstractSamplingDesignType" substitutionGroup="diggs:AbstractProgramDesign">
  <annotation>
    <documentation>Abstract head of the substitution group for designs of samples and sampling activities. Sibling of diggs:AbstractSamplingFeatureDesign, which covers designs of sampling features. Its members include diggs:DesignSample, for a collected or derived sample, and diggs:DesignGroutMix, a specialization of it for a manufactured sample.</documentation>
  </annotation>
</element>
