Schema documentation for component diggs:DesignGroutMix

An object that contains properites describing the characteristics of a batch of grout. This object optionally can reference a DesignGroutMix object defined within the GroutingProgram feature. A SPECIALIZATION OF diggs:DesignSample (DS1, 2026-09-27; previously a direct diggs:AbstractProgramDesign extension). A grout mix is a manufactured/produced sample: it inherits activityType (optional, but "aggregate" where stated - a grout mix is produced by blending constituents), plannedEquipment (a batching plant or mixer), and the generic plannedSampleWeight/Mass/Volume/Dimensions fields, none of which this type needs to restate. sampleScope, DesignSample's population/selection mechanism, is inherited but has no use here and is expected to stay absent - a manufactured sample has no source-feature or source-sample population to scope, per Dan's own framing of the design/build discussion this rebase came from - the type hierarchy makes that fall out naturally rather than needing a special case.

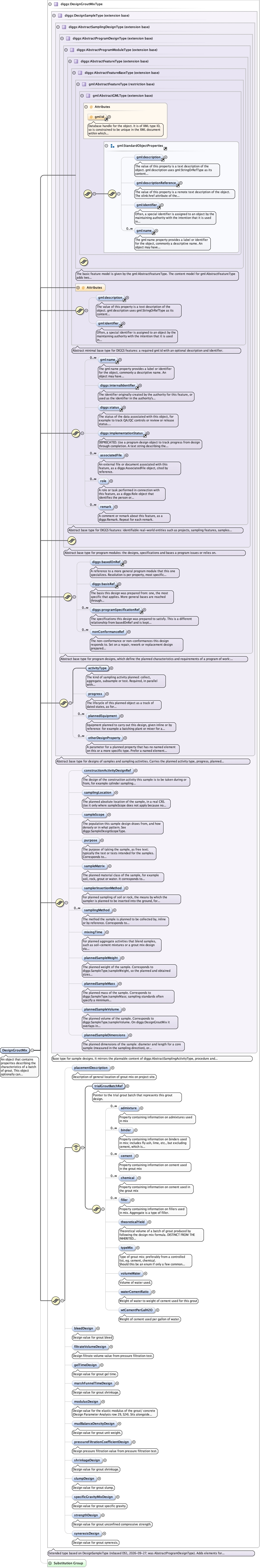

<diggs:DesignGroutMix gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:activityType>{1,1}</diggs:activityType>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:constructionActivityDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:constructionActivityDesignRef>
  <diggs:samplingLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:samplingLocation>
  <diggs:sampleScope xlink:href="" nilReason="">{0,1}</diggs:sampleScope>
  <diggs:purpose>{0,1}</diggs:purpose>
  <diggs:sampleMatrix codeSpace="">{0,1}</diggs:sampleMatrix>
  <diggs:samplerInsertionMethod codeSpace="">{0,1}</diggs:samplerInsertionMethod>
  <diggs:samplingMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:samplingMethod>
  <diggs:mixingTime howDetermined="" qualifier="" uom="">{0,1}</diggs:mixingTime>
  <diggs:plannedSampleWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleWeight>
  <diggs:plannedSampleMass howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleMass>
  <diggs:plannedSampleVolume howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleVolume>
  <diggs:plannedSampleDimensions>{0,1}</diggs:plannedSampleDimensions>
  <diggs:placementDescription>{0,1}</diggs:placementDescription>
  <diggs:trialGroutBatchRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,1}</diggs:trialGroutBatchRef>
  <diggs:admixture>{0,unbounded}</diggs:admixture>
  <diggs:binder>{0,unbounded}</diggs:binder>
  <diggs:cement>{0,unbounded}</diggs:cement>
  <diggs:chemical>{0,unbounded}</diggs:chemical>
  <diggs:filler>{0,unbounded}</diggs:filler>
  <diggs:theoreticalYield howDetermined="" qualifier="" uom="">{0,1}</diggs:theoreticalYield>
  <diggs:typeMix codeSpace="">{0,1}</diggs:typeMix>
  <diggs:volumeWater howDetermined="" qualifier="" uom="">{0,1}</diggs:volumeWater>
  <diggs:waterCementRatio howDetermined="" qualifier="" uom="">{0,1}</diggs:waterCementRatio>
  <diggs:wtCementPerGalH2O howDetermined="" qualifier="" uom="">{0,1}</diggs:wtCementPerGalH2O>
  <diggs:bleedDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:bleedDesign>
  <diggs:filtrateVolumeDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:filtrateVolumeDesign>
  <diggs:gelTimeDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:gelTimeDesign>
  <diggs:marshFunnelTimeDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:marshFunnelTimeDesign>
  <diggs:modulusDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:modulusDesign>
  <diggs:mudBalanceDensityDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:mudBalanceDensityDesign>
  <diggs:pressureFiltrationCoefficientDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:pressureFiltrationCoefficientDesign>
  <diggs:shrinkageDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:shrinkageDesign>
  <diggs:slumpDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:slumpDesign>
  <diggs:specificGravityMixDesign howDetermined="" qualifier="" waterTemperature="">{0,1}</diggs:specificGravityMixDesign>
  <diggs:strengthDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:strengthDesign>
  <diggs:syneresisDesign howDetermined="" qualifier="" uom="">{0,1}</diggs:syneresisDesign>
</diggs:DesignGroutMix>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="DesignGroutMix" substitutionGroup="diggs:DesignSample" type="diggs:DesignGroutMixType"> <annotation> <documentation>An object that contains properites describing the characteristics of a batch of grout. This object optionally can reference a DesignGroutMix object defined within the GroutingProgram feature. A SPECIALIZATION OF diggs:DesignSample (DS1, 2026-09-27; previously a direct diggs:AbstractProgramDesign extension). A grout mix is a manufactured/produced sample: it inherits activityType (optional, but "aggregate" where stated - a grout mix is produced by blending constituents), plannedEquipment (a batching plant or mixer), and the generic plannedSampleWeight/Mass/Volume/Dimensions fields, none of which this type needs to restate. sampleScope, DesignSample's population/selection mechanism, is inherited but has no use here and is expected to stay absent - a manufactured sample has no source-feature or source-sample population to scope, per Dan's own framing of the design/build discussion this rebase came from - the type hierarchy makes that fall out naturally rather than needing a special case.</documentation> </annotation> </element>
