Schema documentation for component diggs:DesignSample

A design for a sample, or for the activity that produces one. It covers every diggs:AbstractSample and, through diggs:DesignGroutMix, a manufactured sample. It mirrors diggs:AbstractSamplingActivityType, not diggs:AbstractSampleType: a collected sample cannot be designed beyond the activity that creates it, so what is plannable is the procedure and intent of that activity.

<diggs:DesignSample gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:activityType>{1,1}</diggs:activityType>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:constructionActivityDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:constructionActivityDesignRef>
  <diggs:samplingLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:samplingLocation>
  <diggs:sampleScope xlink:href="" nilReason="">{0,1}</diggs:sampleScope>
  <diggs:purpose>{0,1}</diggs:purpose>
  <diggs:sampleMatrix codeSpace="">{0,1}</diggs:sampleMatrix>
  <diggs:samplerInsertionMethod codeSpace="">{0,1}</diggs:samplerInsertionMethod>
  <diggs:samplingMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:samplingMethod>
  <diggs:mixingTime howDetermined="" qualifier="" uom="">{0,1}</diggs:mixingTime>
  <diggs:plannedSampleWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleWeight>
  <diggs:plannedSampleMass howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleMass>
  <diggs:plannedSampleVolume howDetermined="" qualifier="" uom="">{0,1}</diggs:plannedSampleVolume>
  <diggs:plannedSampleDimensions>{0,1}</diggs:plannedSampleDimensions>
</diggs:DesignSample>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="DesignSample" type="diggs:DesignSampleType" substitutionGroup="diggs:AbstractSamplingDesign"> <annotation> <documentation>A design for a sample, or for the activity that produces one. It covers every diggs:AbstractSample and, through diggs:DesignGroutMix, a manufactured sample. It mirrors diggs:AbstractSamplingActivityType, not diggs:AbstractSampleType: a collected sample cannot be designed beyond the activity that creates it, so what is plannable is the procedure and intent of that activity.</documentation> </annotation> </element>

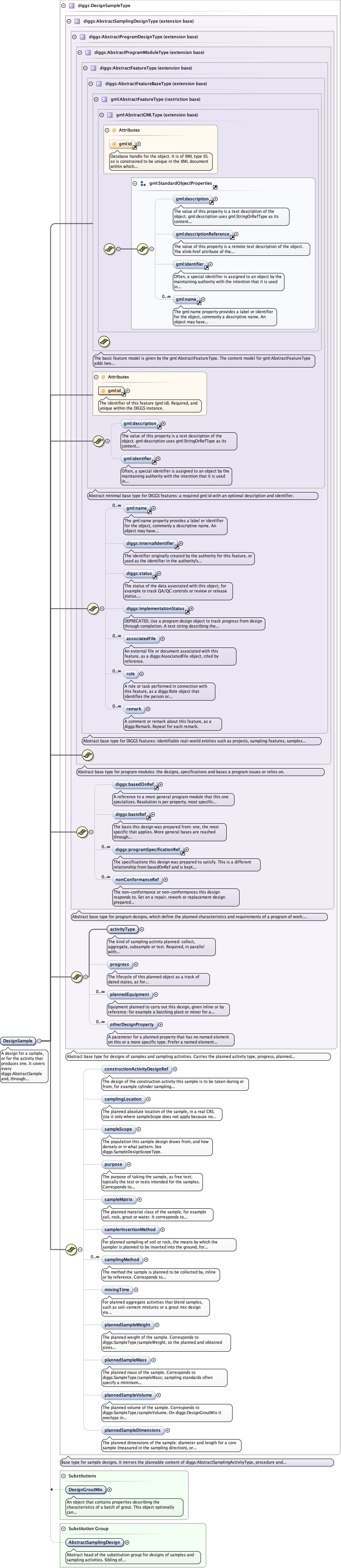

Showing:
