Namespace http://diggsml.org/schemas/3
Annotations
A reference to a program specification object that this feature must satisfy.

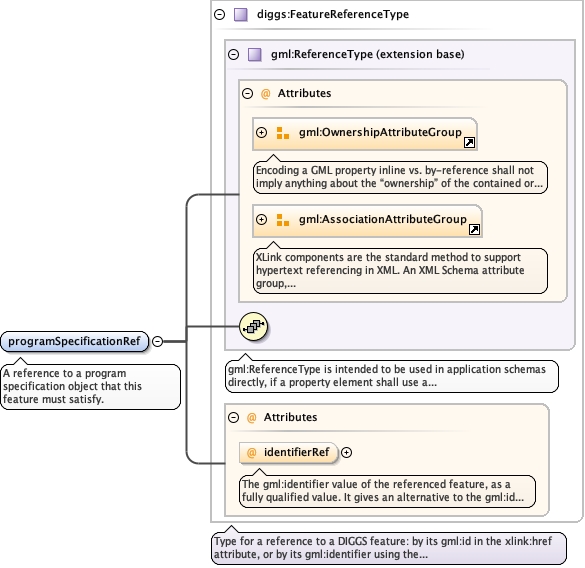

Diagram
Type diggs:FeatureReferenceType
Type hierarchy
Properties
Used by
Complex Types
diggs:AbstractConstructionActivityDesignType diggs:AbstractConstructionActivityType diggs:AbstractLinearInstallationType diggs:AbstractLinearSamplingFeatureType diggs:AbstractMeasurementDesignType diggs:AbstractMeasurementGroupType diggs:AbstractMeasurementType diggs:AbstractObservationGroupType diggs:AbstractObservationSystemType diggs:AbstractPileType diggs:AbstractPlanarInstallationType diggs:AbstractPlanarSamplingFeatureType diggs:AbstractPointInstallationType diggs:AbstractPointSamplingFeatureType diggs:AbstractProgramDesignType diggs:AbstractProjectGroupType diggs:AbstractProjectScopedGroupType diggs:AbstractSampleGroupType diggs:AbstractSampleType diggs:AbstractSamplingActivityType diggs:AbstractSamplingDesignType diggs:AbstractSamplingFeatureDesignType diggs:AbstractSamplingFeatureGroupType diggs:AbstractSamplingFeatureType diggs:AbstractVolumeSamplingFeatureType diggs:BoreholeSoundingPairType diggs:BoreholeType diggs:ColorSystemType diggs:ConcretePileType diggs:ConstituentSystemType diggs:DesignBoreholeType diggs:DesignConstructionActivityType diggs:DesignGroutMixType diggs:DesignInstallationType diggs:DesignMeasurementType diggs:DesignProductionSequenceType diggs:DesignRIColumnType diggs:DesignRILTPType diggs:DesignRITreatedAreaType diggs:DesignSampleType diggs:DesignSamplingFeatureType diggs:DiscontinuitySystemType diggs:GP_ArealSurveyType diggs:GP_MultiTrackType diggs:GP_TracklineType diggs:GeoUnitSystemType diggs:GeophysicalFieldSurveyType diggs:GroutBatchType diggs:GroutTrenchCutoffWallType diggs:LinearGroutingActivityType diggs:LithologySystemType diggs:LoadTransferPlatformType diggs:MaterialTestType diggs:MeasurementWhileDrillingType diggs:MonitorType diggs:OrientationSystemType diggs:OtherObservationSystemType diggs:PileDrivingActivityType diggs:PlanarSamplingFeatureType diggs:PlannedTestType diggs:RIColumnConstructionType diggs:RIColumnType diggs:RITreatedAreaType diggs:RigidInclusionSystemType diggs:SampleType diggs:SamplingActivityType diggs:SoundingType diggs:StationType diggs:SteelHPileType diggs:SteelPipePileType diggs:StratigraphySystemType diggs:TestType diggs:TestingScheduleType diggs:TimberPileType diggs:TransectType diggs:TrenchWallType diggs:TrialGroutBatchType diggs:TrialPitType diggs:VolumetricSamplingFeatureType diggs:WellType
Model
Attributes
QName
Type
Default
Use
Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false
optional
xlink:href anyURI optional
Source
<element name= "programSpecificationRef" type= "diggs:FeatureReferenceType" >
<annotation >
<documentation > A reference to a program specification object that this feature must satisfy. </documentation>
</annotation>
</element>
