Schema documentation for component diggs:installationRecord

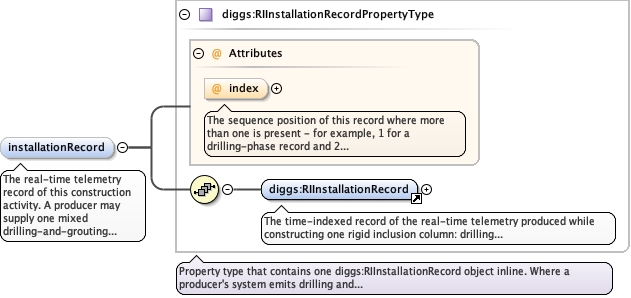

The real-time telemetry record of this construction activity. A producer may supply one mixed drilling-and-grouting stream, or separate records per phase or per equipment system, as for the pileDrivingRecord and pdaRecord of diggs:PileDrivingActivityType; nothing forces a single row set. Repeat for each record.

<element minOccurs="0" maxOccurs="unbounded" name="installationRecord" type="diggs:RIInstallationRecordPropertyType"> <annotation> <documentation>The real-time telemetry record of this construction activity. A producer may supply one mixed drilling-and-grouting stream, or separate records per phase or per equipment system, as for the pileDrivingRecord and pdaRecord of diggs:PileDrivingActivityType; nothing forces a single row set. Repeat for each record.</documentation> </annotation> </element>

The achieved reason this column's installation stopped: design depth reached, refusal, or stopped short of the design depth. It is an as-built fact, distinct from the refusal criterion that governs the stop decision: the criterion is a rule and belongs on the specification side as an acceptance criterion cited by this activity, and this element is the outcome that rule produced. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).

<element minOccurs="0" name="terminationOutcome" type="diggs:TerminationOutcomeEnumExtType"> <annotation> <documentation>The achieved reason this column's installation stopped: design depth reached, refusal, or stopped short of the design depth. It is an as-built fact, distinct from the refusal criterion that governs the stop decision: the criterion is a rule and belongs on the specification side as an acceptance criterion cited by this activity, and this element is the outcome that rule produced. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation> </annotation> </element>

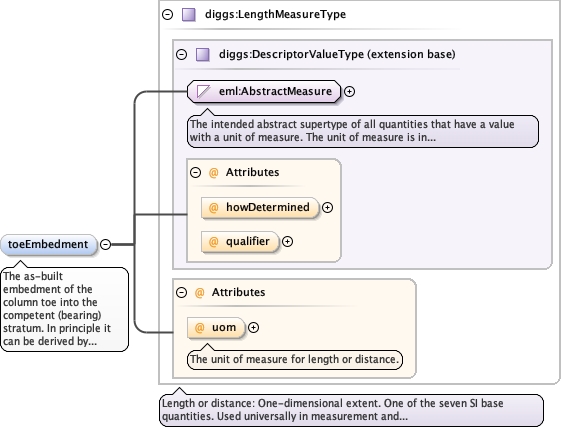

The as-built embedment of the column toe into the competent (bearing) stratum. In principle it can be derived by crossing the depth column of the installationRecord coverage, or diggs:RIColumn/centerLine, against a ground model, but only where a ground model is present in the same file, which an inspection and test plan recording the value at the rig cannot assume. It pairs with the design-side minimum required embedment, an acceptance criterion.

<element minOccurs="0" name="toeEmbedment" type="diggs:LengthMeasureType"> <annotation> <documentation>The as-built embedment of the column toe into the competent (bearing) stratum. In principle it can be derived by crossing the depth column of the installationRecord coverage, or diggs:RIColumn/centerLine, against a ground model, but only where a ground model is present in the same file, which an inspection and test plan recording the value at the rig cannot assume. It pairs with the design-side minimum required embedment, an acceptance criterion.</documentation> </annotation> </element>

The name of the ground model layer that the column terminates in. This element is to be used, instead of embedmentLayerRef, where a GeoUnitSystem used to represent the ground model is not reachable from this instance, or where a formal ground model was not developed.

<element name="embedmentLayer" type="string"> <annotation> <documentation>The name of the ground model layer that the column terminates in. This element is to be used, instead of embedmentLayerRef, where a GeoUnitSystem used to represent the ground model is not reachable from this instance, or where a formal ground model was not developed.</documentation> </annotation> </element>

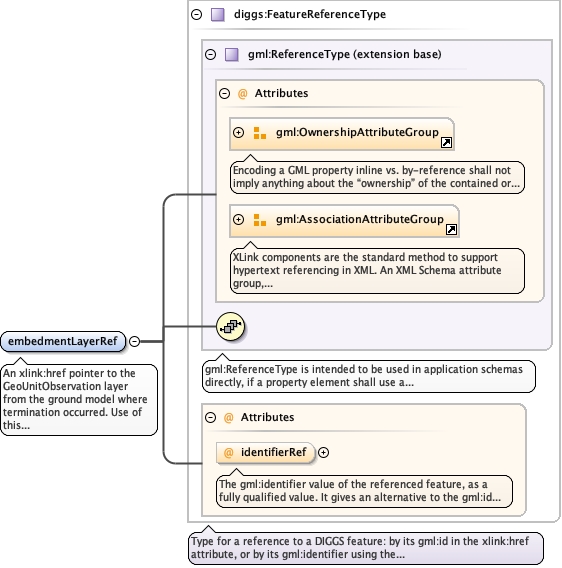

An xlink:href pointer to the GeoUnitObservation layer from the ground model where termination occurred. Use of this element assumes that the GeoUnitSystem that represents the ground model for this site is reachable from this instance.

The gml:identifier value of the referenced feature, as a fully qualified value. It gives an alternative to the gml:id in xlink:href for finding the referenced feature, mainly to reference a feature by a globally unique identifier and where naming conflicts occur with gml:id when accessing data in external files.

<element name="embedmentLayerRef" type="diggs:FeatureReferenceType"> <annotation> <appinfo source="urn:x-gml:targetElement">diggs:GeoUnitObservation</appinfo> <documentation>An xlink:href pointer to the GeoUnitObservation layer from the ground model where termination occurred. Use of this element assumes that the GeoUnitSystem that represents the ground model for this site is reachable from this instance.</documentation> </annotation> </element>

How the ground was handled during this installation activity: full displacement, partial displacement or replacement. It is distinct from diggs:RIColumnType/columnType: columnType names the technique (bored, driven, vibro-driven, drilled displacement and so on), and this names the displacement behavior of that technique, whether it pushes soil aside, removes it, or something between, which governs the spoil, the ground disturbance and the quality-control data the rig produces. The same family is also stated on the column itself, on diggs:RIColumnType and diggs:RIColumnSpecificationType, where it is constrained against columnType by conditionalElementXpath; this element records the same fact from the point of view of the activity, for the case where the installation is logged as an activity rather than read off the column. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).

<element minOccurs="0" name="riInstallationMethod" type="diggs:RIInstallationMethodEnumExtType"> <annotation> <documentation>How the ground was handled during this installation activity: full displacement, partial displacement or replacement. It is distinct from diggs:RIColumnType/columnType: columnType names the technique (bored, driven, vibro-driven, drilled displacement and so on), and this names the displacement behavior of that technique, whether it pushes soil aside, removes it, or something between, which governs the spoil, the ground disturbance and the quality-control data the rig produces. The same family is also stated on the column itself, on diggs:RIColumnType and diggs:RIColumnSpecificationType, where it is constrained against columnType by conditionalElementXpath; this element records the same fact from the point of view of the activity, for the case where the installation is logged as an activity rather than read off the column. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation> </annotation> </element>

The corrective action taken where in-progress monitoring found that the grout level in the column had dropped below the expected level (an uncovered column condition): topping off, or re-drilling and re-grouting the column. It is the outcome of a site check, not the check itself: where the depth-indexed level reading that triggered the action is also logged, it travels through installationRecord like any other rig telemetry (gr_inj_properties.xml#grout_level), as terminationOutcome relates to the refusal criterion that triggers it. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).

<element minOccurs="0" name="groutLevelCorrectiveAction" type="diggs:GroutLevelCorrectiveActionEnumExtType"> <annotation> <documentation>The corrective action taken where in-progress monitoring found that the grout level in the column had dropped below the expected level (an uncovered column condition): topping off, or re-drilling and re-grouting the column. It is the outcome of a site check, not the check itself: where the depth-indexed level reading that triggered the action is also logged, it travels through installationRecord like any other rig telemetry (gr_inj_properties.xml#grout_level), as terminationOutcome relates to the refusal criterion that triggers it. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation> </annotation> </element>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

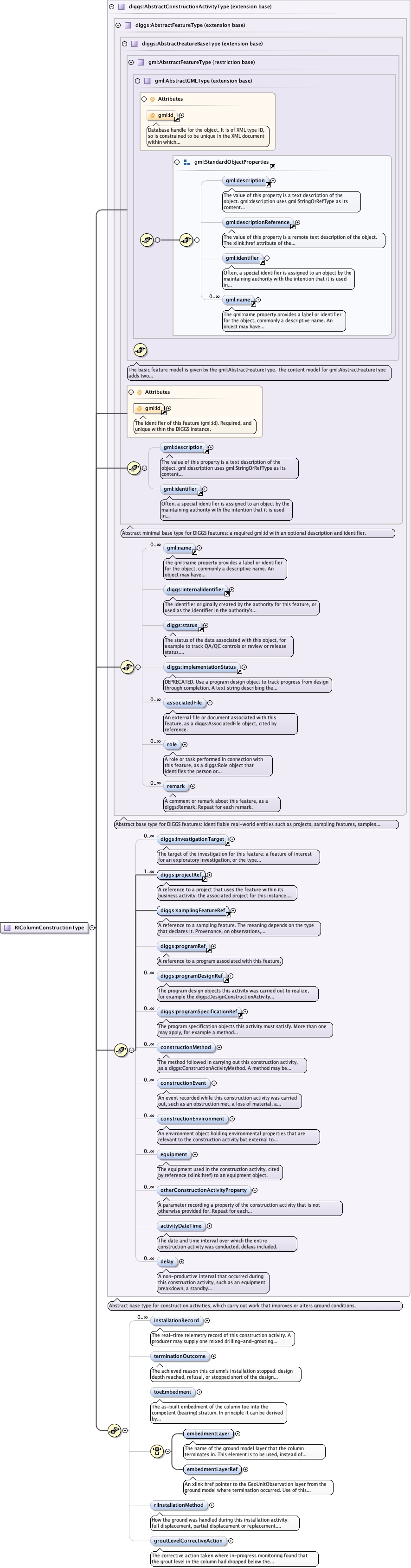

<complexType name="RIColumnConstructionType">
  <complexContent>
    <extension base="diggs:AbstractConstructionActivityType">
      <sequence>
        <element minOccurs="0" maxOccurs="unbounded" name="installationRecord" type="diggs:RIInstallationRecordPropertyType">
          <annotation>
            <documentation>The real-time telemetry record of this construction activity. A producer may supply one mixed drilling-and-grouting stream, or separate records per phase or per equipment system, as for the pileDrivingRecord and pdaRecord of diggs:PileDrivingActivityType; nothing forces a single row set. Repeat for each record.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="terminationOutcome" type="diggs:TerminationOutcomeEnumExtType">
          <annotation>
            <documentation>The achieved reason this column's installation stopped: design depth reached, refusal, or stopped short of the design depth. It is an as-built fact, distinct from the refusal criterion that governs the stop decision: the criterion is a rule and belongs on the specification side as an acceptance criterion cited by this activity, and this element is the outcome that rule produced. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="toeEmbedment" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The as-built embedment of the column toe into the competent (bearing) stratum. In principle it can be derived by crossing the depth column of the installationRecord coverage, or diggs:RIColumn/centerLine, against a ground model, but only where a ground model is present in the same file, which an inspection and test plan recording the value at the rig cannot assume. It pairs with the design-side minimum required embedment, an acceptance criterion.</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <element name="embedmentLayer" type="string">
            <annotation>
              <documentation>The name of the ground model layer that the column terminates in. This element is to be used, instead of embedmentLayerRef, where a GeoUnitSystem used to represent the ground model is not reachable from this instance, or where a formal ground model was not developed.</documentation>
            </annotation>
          </element>
          <element name="embedmentLayerRef" type="diggs:FeatureReferenceType">
            <annotation>
              <appinfo source="urn:x-gml:targetElement">diggs:GeoUnitObservation</appinfo>
              <documentation>An xlink:href pointer to the GeoUnitObservation layer from the ground model where termination occurred. Use of this element assumes that the GeoUnitSystem that represents the ground model for this site is reachable from this instance.</documentation>
            </annotation>
          </element>
        </choice>
        <element minOccurs="0" name="riInstallationMethod" type="diggs:RIInstallationMethodEnumExtType">
          <annotation>
            <documentation>How the ground was handled during this installation activity: full displacement, partial displacement or replacement. It is distinct from diggs:RIColumnType/columnType: columnType names the technique (bored, driven, vibro-driven, drilled displacement and so on), and this names the displacement behavior of that technique, whether it pushes soil aside, removes it, or something between, which governs the spoil, the ground disturbance and the quality-control data the rig produces. The same family is also stated on the column itself, on diggs:RIColumnType and diggs:RIColumnSpecificationType, where it is constrained against columnType by conditionalElementXpath; this element records the same fact from the point of view of the activity, for the case where the installation is logged as an activity rather than read off the column. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutLevelCorrectiveAction" type="diggs:GroutLevelCorrectiveActionEnumExtType">
          <annotation>
            <documentation>The corrective action taken where in-progress monitoring found that the grout level in the column had dropped below the expected level (an uncovered column condition): topping off, or re-drilling and re-grouting the column. It is the outcome of a site check, not the check itself: where the depth-indexed level reading that triggered the action is also logged, it travels through installationRecord like any other rig telemetry (gr_inj_properties.xml#grout_level), as terminationOutcome relates to the refusal criterion that triggers it. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
