Element diggs:RIInstallationRecord
Namespace http://diggsml.org/schemas/3
Annotations

The time-indexed record of the real-time telemetry produced while constructing one
rigid inclusion column: drilling parameters, grouting parameters, or both mixed in
one stream, according to what the producing system logs together. Every row of
results has a time in timeDomain; the depth at that time (the position up or down
the column, occupied twice, once in the drilling phase and once in the withdrawal
and grouting phase) is a property column of results, for example
mwd_properties.xml#depth. results carries an open PropertyParameters list, so
drilling columns (propertyClass values from mwd_properties.xml) and grouting columns
(from gr_inj_properties.xml) may sit in the same row set.

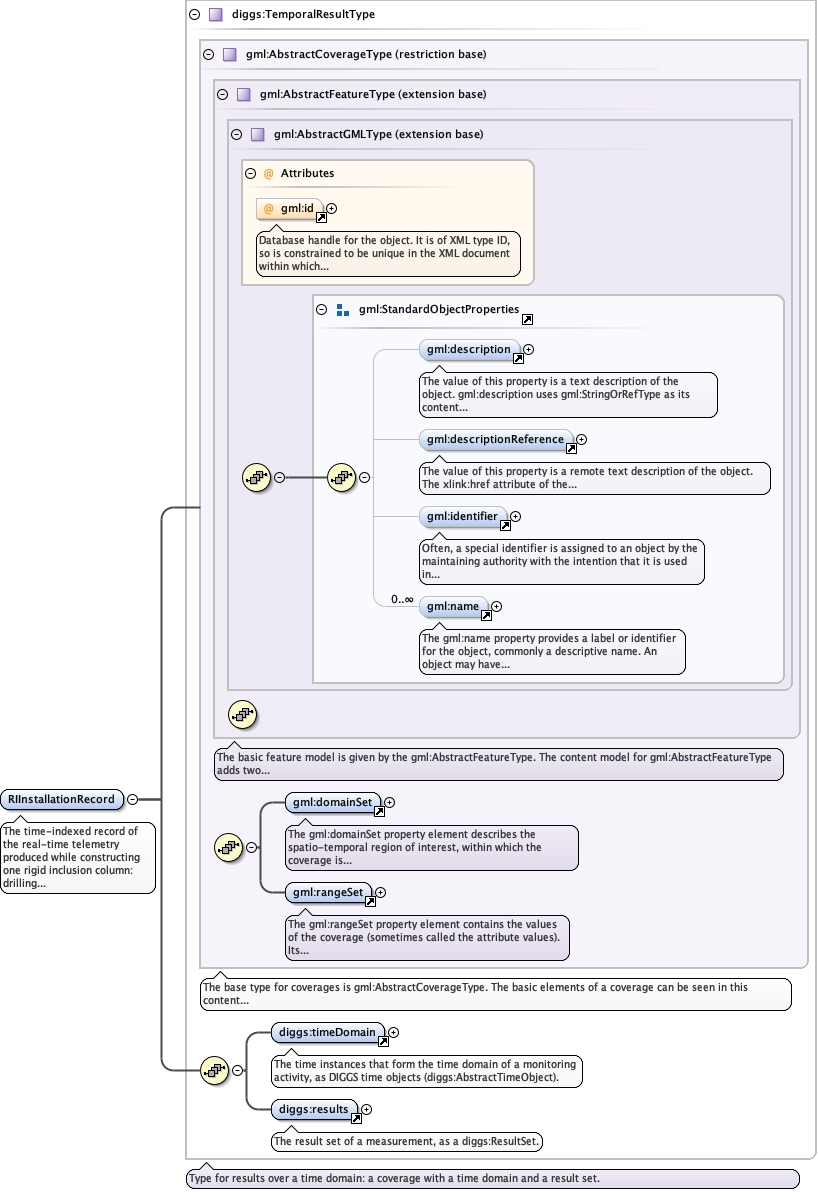

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_domainSet.tmp#domainSetgml3_2Profile_diggs_xsd_Element_gml_rangeSet.tmp#rangeSetgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCoverageType.tmp#AbstractCoverageTypeCommon_xsd_Element_diggs_timeDomain.tmp#timeDomainCommon_xsd_Element_diggs_results.tmp#resultsCore_xsd_Complex_Type_diggs_TemporalResultType.tmp#TemporalResultType
Type diggs:TemporalResultType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:results, diggs:timeDomain
Instance

<diggs:RIInstallationRecord gml:id="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:timeDomain xlink:href="" nilReason="" owns="false">{1,1}</diggs:timeDomain>
  <diggs:results>{1,1}</diggs:results>
</diggs:RIInstallationRecord>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="RIInstallationRecord" type="diggs:TemporalResultType">
  <annotation>
    <documentation>The time-indexed record of the real-time telemetry produced while constructing one rigid inclusion column: drilling parameters, grouting parameters, or both mixed in one stream, according to what the producing system logs together. Every row of results has a time in timeDomain; the depth at that time (the position up or down the column, occupied twice, once in the drilling phase and once in the withdrawal and grouting phase) is a property column of results, for example mwd_properties.xml#depth. results carries an open PropertyParameters list, so drilling columns (propertyClass values from mwd_properties.xml) and grouting columns (from gr_inj_properties.xml) may sit in the same row set.</documentation>
  </annotation>
</element>
