Element diggs:timeDomain
Namespace http://diggsml.org/schemas/3
Annotations

The time instances that form the time domain of a monitoring activity, as DIGGS time
objects (diggs:AbstractTimeObject).

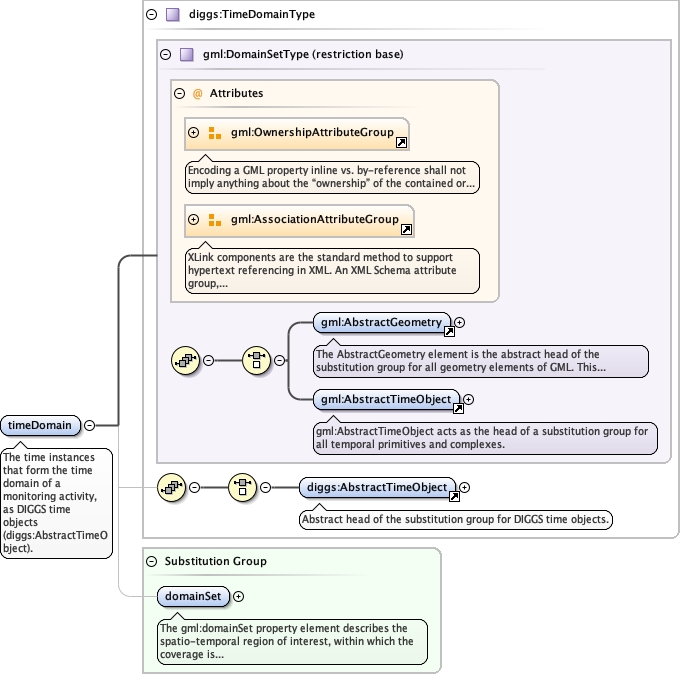

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypeCore_xsd_Element_diggs_AbstractTimeObject.tmp#http___diggsml.org_schemas_3_AbstractTimeObjectCommon_xsd_Complex_Type_diggs_TimeDomainType.tmp#TimeDomainTypegml3_2Profile_diggs_xsd_Element_gml_domainSet.tmp#domainSet
Type diggs:TimeDomainType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:AbstractTimeObject
Instance

<diggs:timeDomain xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractTimeObject gml:id="">{1,1}</diggs:AbstractTimeObject>
</diggs:timeDomain>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="timeDomain" type="diggs:TimeDomainType" substitutionGroup="gml:domainSet">
  <annotation>
    <documentation>The time instances that form the time domain of a monitoring activity, as DIGGS time objects (diggs:AbstractTimeObject).</documentation>
  </annotation>
</element>
