Schema documentation for component gml:domainSet

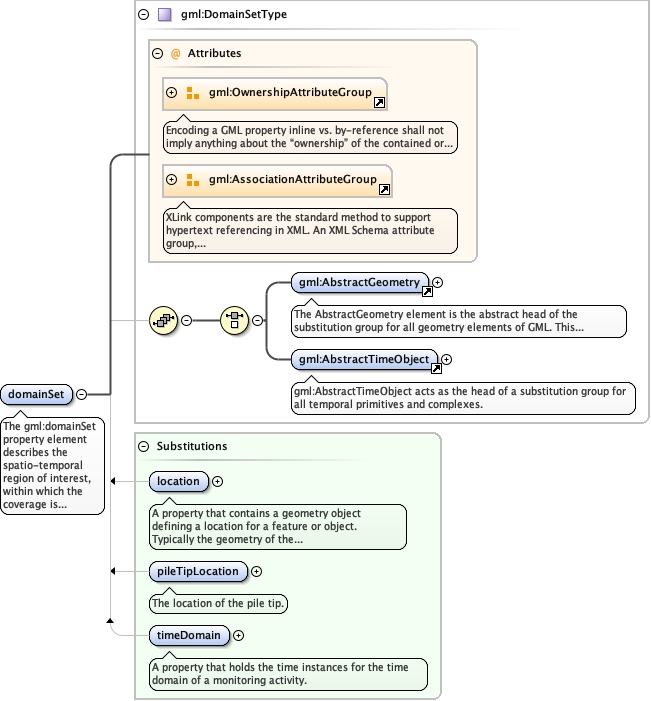

The gml:domainSet property element describes the spatio-temporal region of interest, within which the coverage is defined. Its content model is given by gml:DomainSetType. The value of the domain is thus a choice between a gml:AbstractGeometry and a gml:AbstractTimeObject. In the instance these abstract elements will normally be substituted by a geometry complex or temporal complex, to represent spatial coverages and time-series, respectively. The presence of the gml:AssociationAttributeGroup means that domainSet follows the usual GML property model and may use the xlink:href attribute to point to the domain, as an alternative to describing the domain inline. Ownership semantics may be provided using the gml:OwnershipAttributeGroup.

<gml:domainSet xlink:href="" nilReason="" owns="false" xmlns:gml="http://www.opengis.net/gml/3.2"> <gml:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractGeometry> <gml:AbstractTimeObject gml:id="">{1,1}</gml:AbstractTimeObject> </gml:domainSet>

QName

Type

Default

Use

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:href

anyURI

optional

<element name="domainSet" type="gml:DomainSetType">
  <annotation>
    <documentation>The gml:domainSet property element describes the spatio-temporal region of interest, within which the coverage is defined. Its content model is given by gml:DomainSetType. The value of the domain is thus a choice between a gml:AbstractGeometry and a gml:AbstractTimeObject. In the instance these abstract elements will normally be substituted by a geometry complex or temporal complex, to represent spatial coverages and time-series, respectively. The presence of the gml:AssociationAttributeGroup means that domainSet follows the usual GML property model and may use the xlink:href attribute to point to the domain, as an alternative to describing the domain inline. Ownership semantics may be provided using the gml:OwnershipAttributeGroup.</documentation>
  </annotation>
</element>
