Element diggs:location

Namespace

http://diggsml.org/schemas/3

Annotations

The location of a feature or object, as a geometry object.

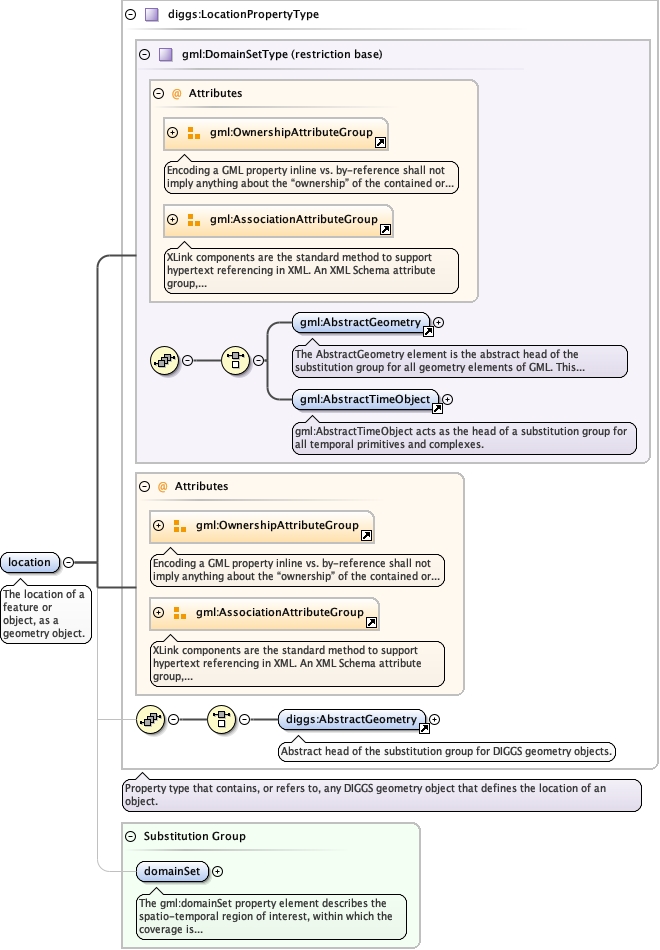

Diagram

Type

diggs:LocationPropertyType

Type hierarchy

gml:DomainSetType
- diggs:LocationPropertyType

Properties

content

complex

Substitution Group Affiliation

gml:domainSet

Used by

Complex Types

diggs:AbstractEventType, diggs:AbstractObservationType, diggs:BoreholeConstructionMethodType, diggs:BoreholeEventType, diggs:BoundaryType, diggs:ColorObservationType, diggs:ConstituentObservationType, diggs:ConstructionActivityMethodType, diggs:DiscontinuityObservationType, diggs:GeoUnitObservationType, diggs:InSituTestEventType, diggs:InstallationEventType, diggs:LithologyObservationType, diggs:LocalCoordinateType, diggs:MWDResultType, diggs:OrientationObservationType, diggs:OtherObservationType, diggs:PlacedObservationType, diggs:ProjectEventType, diggs:SampleProducedType, diggs:SoundingConstructionMethodType, diggs:SoundingEventType, diggs:StratigraphyObservationType, diggs:TestResultBaseType, diggs:TestResultType, diggs:TrenchConstructionMethodType, diggs:TrialPitEventType

Model

(diggs:AbstractGeometry)

Children

diggs:AbstractGeometry

Instance

<diggs:location owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractGeometry>
</diggs:location>

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<element name="location" substitutionGroup="gml:domainSet" type="diggs:LocationPropertyType">
  <annotation>
    <documentation>The location of a feature or object, as a geometry object.</documentation>
  </annotation>
</element>
