Element diggs:ConstituentObservationType / diggs:constituent
Namespace http://diggsml.org/schemas/3
Annotations

A constituent of the earth material in the observed zone or
interval, such as a fossil or a diagenetic feature. Repeat for each
constituent.

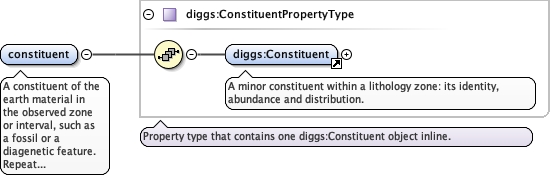

Diagram
DiagramCore_xsd_Element_diggs_Constituent.tmp#ConstituentCore_xsd_Complex_Type_diggs_ConstituentPropertyType.tmp#ConstituentPropertyType
Type diggs:ConstituentPropertyType
Properties
content complex
maxOccurs unbounded
Model
Children diggs:Constituent
Instance

<diggs:constituent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Constituent gml:id="" rank="">{1,1}</diggs:Constituent>
</diggs:constituent>
Source

<element maxOccurs="unbounded" name="constituent" type="diggs:ConstituentPropertyType">
  <annotation>
    <documentation>A constituent of the earth material in the observed zone or interval, such as a fossil or a diagenetic feature. Repeat for each constituent.</documentation>
  </annotation>
</element>
Complex Type diggs:ConstituentObservationType
Namespace http://diggsml.org/schemas/3

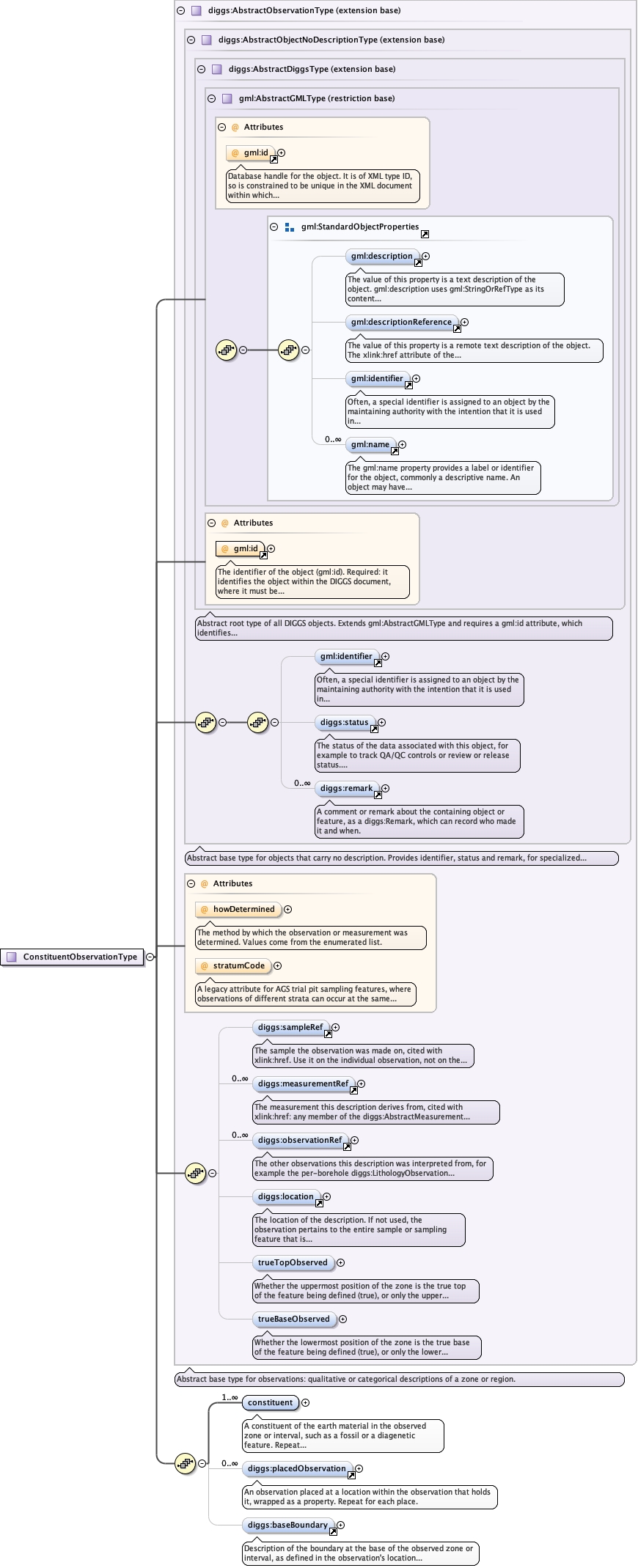

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_remark_1.tmp#http___diggsml.org_schemas_3_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectNoDescriptionType.tmp#AbstractObjectNoDescriptionTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_howDeterminedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefCommon_xsd_Element_diggs_observationRef.tmp#observationRefCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeExtObservation_xsd_Complex_Type_diggs_ConstituentObservationType.tmp#ConstituentObservationType_constituentCore_xsd_Element_diggs_placedObservation_1.tmp#placedObservationCommon_xsd_Element_diggs_baseBoundary.tmp#baseBoundary
Type extension of diggs:AbstractObservationType
Type hierarchy
Used by
Model
Children diggs:baseBoundary, diggs:constituent, diggs:location, diggs:measurementRef, diggs:observationRef, diggs:placedObservation, diggs:remark, diggs:sampleRef, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
The method by which the observation or measurement was determined.
Values come from the enumerated list.
stratumCode string optional
A legacy attribute for AGS trial pit sampling features, where
observations of different strata can occur at the same depth in a pit: a
reference letter or number whose sole purpose is to link the stratum on
the face sketch of the trial pit to the observation.
Source

<complexType name="ConstituentObservationType">
  <complexContent>
    <extension base="diggs:AbstractObservationType">
      <sequence>
        <element maxOccurs="unbounded" name="constituent" type="diggs:ConstituentPropertyType">
          <annotation>
            <documentation>A constituent of the earth material in the observed zone or interval, such as a fossil or a diagenetic feature. Repeat for each constituent.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:placedObservation"/>
        <element minOccurs="0" ref="diggs:baseBoundary">
          <annotation>
            <documentation>Description of the boundary at the base of the observed zone or interval, as defined in the observation's location property. Only one baseBoundary may be given.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
