Complex Type diggs:AbstractObjectNoDescriptionType

Namespace

http://diggsml.org/schemas/3

Annotations

Abstract base type for objects that carry no description. Provides identifier,
status and remark, for specialized objects whose description is not required or is
given in another way.

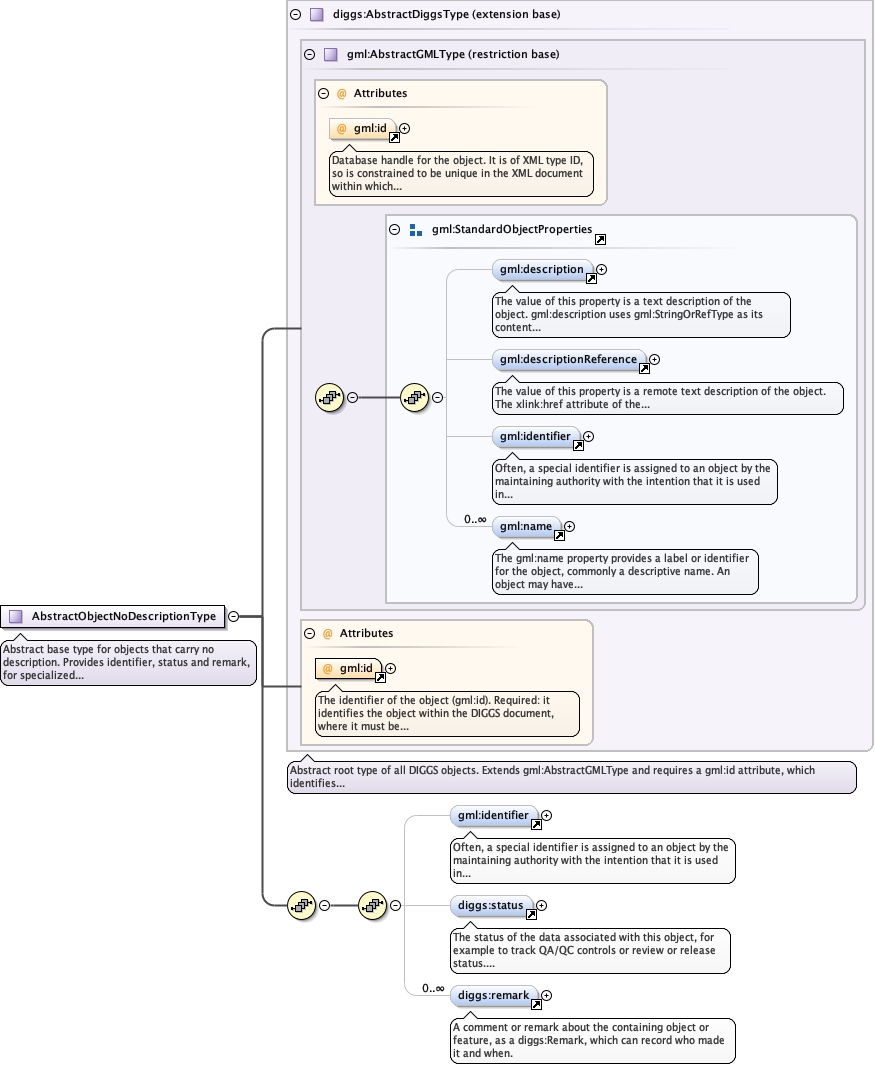

Diagram

Type

extension of diggs:AbstractDiggsType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectNoDescriptionType

Properties

abstract	true
mixed	false

Used by

Complex Type

diggs:AbstractObservationType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark*

Children

diggs:remark, diggs:status, gml:identifier

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="AbstractObjectNoDescriptionType" mixed="false" abstract="true">
  <annotation>
    <documentation>Abstract base type for objects that carry no description. Provides identifier, status and remark, for specialized objects whose description is not required or is given in another way.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractDiggsType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:identifier"/>
          <element minOccurs="0" ref="diggs:status"/>
          <element maxOccurs="unbounded" minOccurs="0" ref="diggs:remark"/>
        </sequence>
      </sequence>
    </extension>
  </complexContent>
</complexType>
