Schema documentation for component diggs:ConstituentObservation

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ConstituentObservation

Namespace

http://diggsml.org/schemas/3

Annotations

A description of the details of earth materials encountered within a sampling
feature. Constituents restricted to a specific lithologic zone are instead encoded
as constituent properties of the diggs:Lithology zone itself.

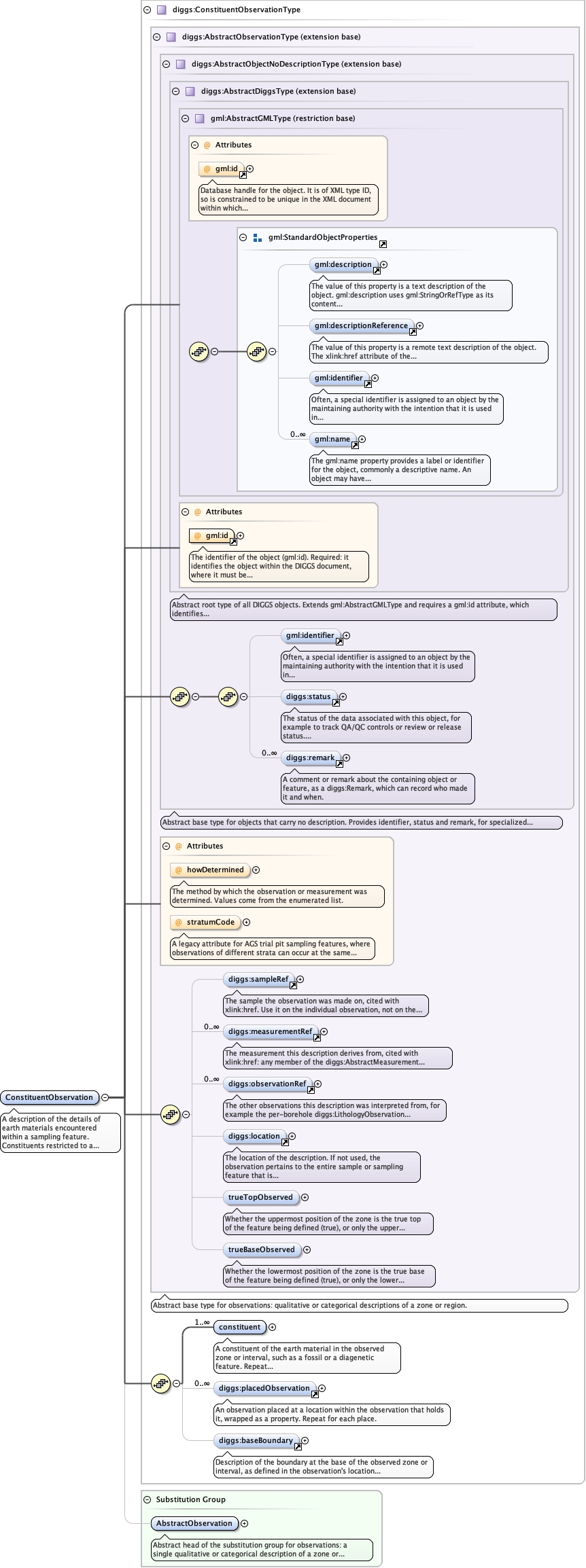

Diagram

Type

diggs:ConstituentObservationType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectNoDescriptionType
    - diggs:AbstractObservationType
      - diggs:ConstituentObservationType

Properties

content

complex

Substitution Group Affiliation

diggs:AbstractObservation

Used by

Complex Type

diggs:ConstituentObservationPropertyType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark* , diggs:sampleRef{0,1} , diggs:measurementRef* , diggs:observationRef* , diggs:location{0,1} , diggs:trueTopObserved{0,1} , diggs:trueBaseObserved{0,1} , diggs:constituent+ , diggs:placedObservation* , diggs:baseBoundary{0,1}

Children

diggs:baseBoundary, diggs:constituent, diggs:location, diggs:measurementRef, diggs:observationRef, diggs:placedObservation, diggs:remark, diggs:sampleRef, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier

Instance

<diggs:ConstituentObservation howDetermined="" gml:id="" stratumCode="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{0,1}</diggs:sampleRef>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:measurementRef>
  <diggs:observationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:observationRef>
  <diggs:location owns="false" xlink:href="" nilReason="">{0,1}</diggs:location>
  <diggs:trueTopObserved>{0,1}</diggs:trueTopObserved>
  <diggs:trueBaseObserved>{0,1}</diggs:trueBaseObserved>
  <diggs:constituent>{1,unbounded}</diggs:constituent>
  <diggs:placedObservation>{0,unbounded}</diggs:placedObservation>
  <diggs:baseBoundary>{0,1}</diggs:baseBoundary>
</diggs:ConstituentObservation>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

howDetermined

diggs:DescriptorMethodEnumType

optional

The method by which the observation or measurement was determined.
Values come from the enumerated list.

stratumCode

string

optional

A legacy attribute for AGS trial pit sampling features, where
observations of different strata can occur at the same depth in a pit: a
reference letter or number whose sole purpose is to link the stratum on
the face sketch of the trial pit to the observation.

Source

<element name="ConstituentObservation" type="diggs:ConstituentObservationType" substitutionGroup="diggs:AbstractObservation">
  <annotation>
    <documentation>A description of the details of earth materials encountered within a sampling feature. Constituents restricted to a specific lithologic zone are instead encoded as constituent properties of the diggs:Lithology zone itself.</documentation>
  </annotation>
</element>
