Schema documentation for component diggs:baseBoundary

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:baseBoundary

Namespace

http://diggsml.org/schemas/3

Annotations

Description of the boundary at the base of the observed zone or interval, as defined
in the location of the observation. Where the location is planar or volumetric and
the character of the boundary changes along its length or surface, the element can
repeat if the host type allows more than one. For a linear sampling feature only the
first in document order applies, and any further ones are ignored.

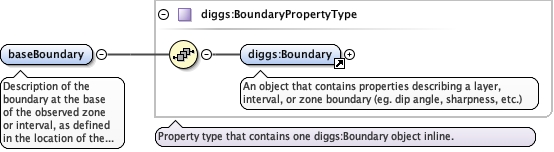

Diagram

Type

diggs:BoundaryPropertyType

Properties

content

complex

Used by

Complex Types

diggs:ColorObservationType, diggs:ConstituentObservationType, diggs:DiscontinuityObservationType, diggs:GeoUnitObservationType, diggs:LithologyObservationType, diggs:OrientationObservationType, diggs:OtherObservationType, diggs:StratigraphyObservationType

Model

diggs:Boundary

Children

diggs:Boundary

Instance

<diggs:baseBoundary xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Boundary howDetermined="" gml:id="">{1,1}</diggs:Boundary>
</diggs:baseBoundary>

Source

<element name="baseBoundary" type="diggs:BoundaryPropertyType">
  <annotation>
    <documentation>Description of the boundary at the base of the observed zone or interval, as defined in the location of the observation. Where the location is planar or volumetric and the character of the boundary changes along its length or surface, the element can repeat if the host type allows more than one. For a linear sampling feature only the first in document order applies, and any further ones are ignored.</documentation>
  </annotation>
</element>
