Element diggs:Constituent
Namespace http://diggsml.org/schemas/3
Annotations

A minor constituent within a lithology zone: its identity, abundance and
distribution.

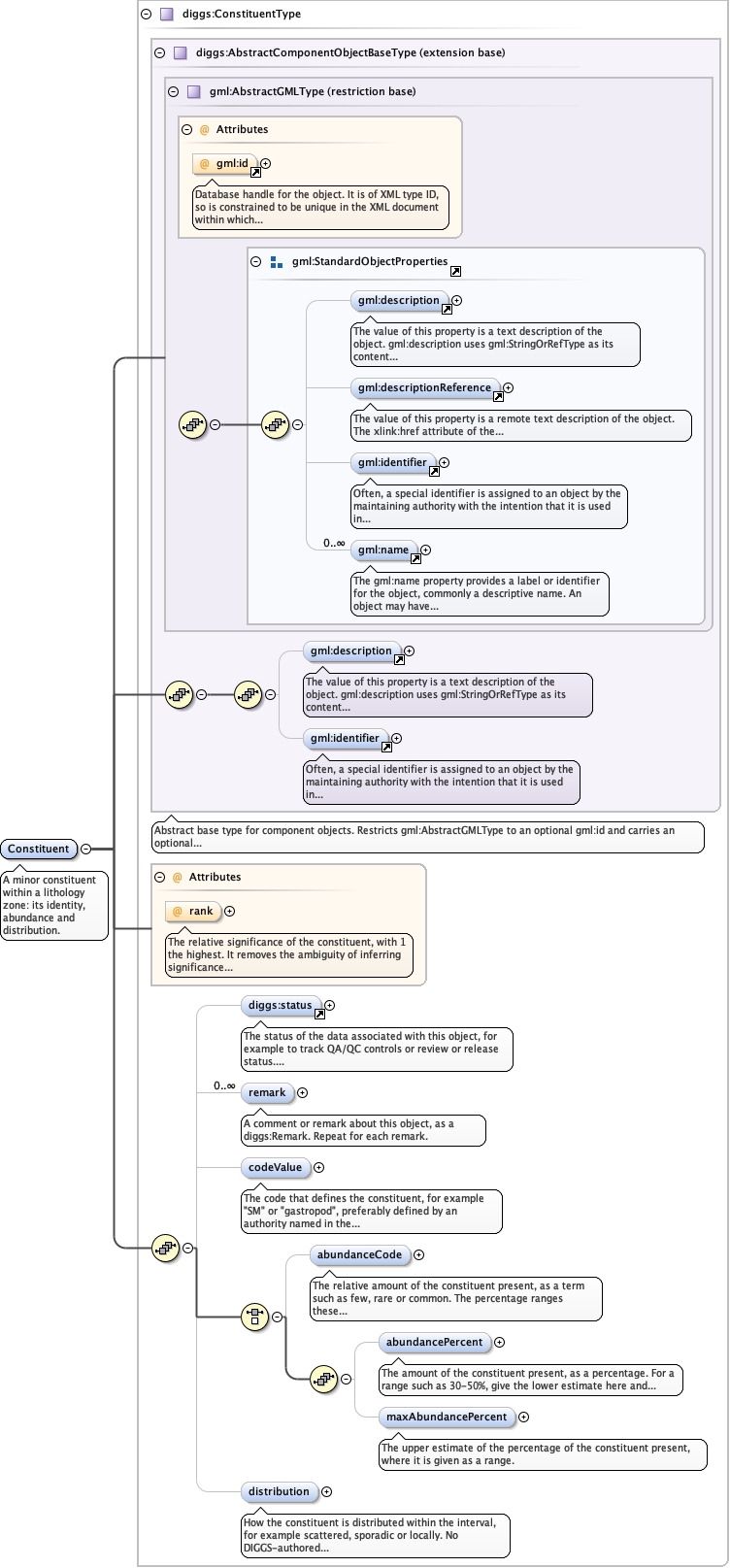

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_rankCommon_xsd_Element_diggs_status.tmp#statusCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_remarkCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_codeValueCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_abundanceCodeCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_abundancePercentCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_maxAbundancePercentCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType_distributionCore_xsd_Complex_Type_diggs_ConstituentType.tmp#ConstituentType
Type diggs:ConstituentType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:codeValue, diggs:distribution, diggs:maxAbundancePercent, diggs:remark, diggs:status, gml:description, gml:identifier
Instance

<diggs:Constituent gml:id="" rank="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:codeValue category="" codeSpace="" howDetermined="">{0,1}</diggs:codeValue>
  <diggs:abundanceCode codeSpace="">{0,1}</diggs:abundanceCode>
  <diggs:abundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:abundancePercent>
  <diggs:maxAbundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:maxAbundancePercent>
  <diggs:distribution codeSpace="">{0,1}</diggs:distribution>
</diggs:Constituent>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
rank positiveInteger optional
The relative significance of the constituent, with 1 the highest. It
removes the ambiguity of inferring significance from abundanceCode.
Source

<element name="Constituent" type="diggs:ConstituentType">
  <annotation>
    <documentation>A minor constituent within a lithology zone: its identity, abundance and distribution.</documentation>
  </annotation>
</element>
