Schema documentation for component diggs:LocationPropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:LocationPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains, or refers to, any DIGGS geometry object that defines
the location of an object.

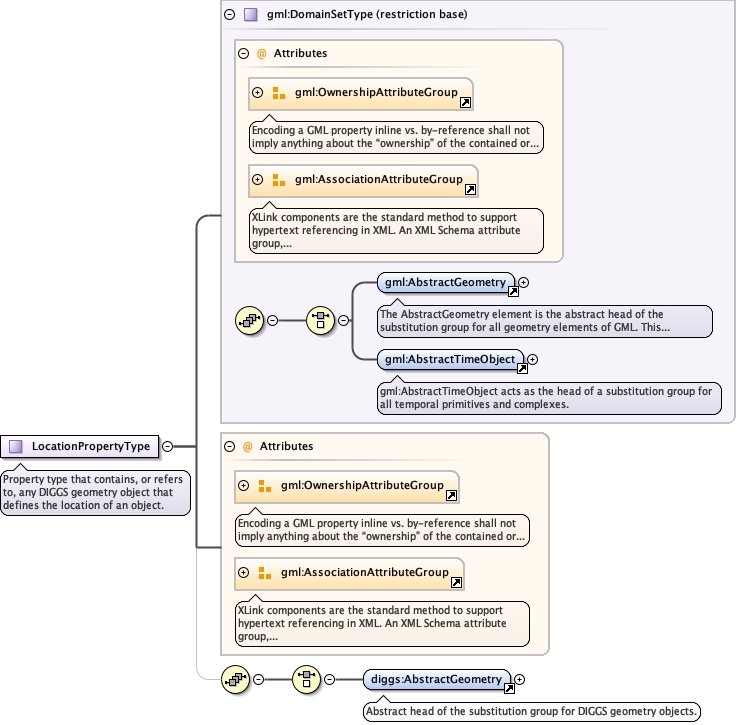

Diagram

Type

restriction of gml:DomainSetType

Type hierarchy

gml:DomainSetType
- diggs:LocationPropertyType

Used by

Elements

diggs:AbstractSamplingActivityType/diggs:samplingLocation, diggs:AbstractSpecimenType/diggs:specimenLocation, diggs:AcceptanceCheckType/diggs:subjectLocation, diggs:DesignMeasurementType/diggs:measurementLocation, diggs:DesignSampleType/diggs:samplingLocation, diggs:DetectorType/diggs:detectorLocation, diggs:MonitorType/diggs:monitorLocation, diggs:NonConformanceType/diggs:subjectLocation, diggs:ResistivityReadingType/diggs:readingLocation, diggs:TargetPositionType/diggs:targetLocation, diggs:location

Model

(diggs:AbstractGeometry)

Children

diggs:AbstractGeometry

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="LocationPropertyType">
  <annotation>
    <documentation>Property type that contains, or refers to, any DIGGS geometry object that defines the location of an object.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:DomainSetType">
      <sequence minOccurs="0">
        <choice>
          <element ref="diggs:AbstractGeometry"/>
        </choice>
      </sequence>
      <attributeGroup ref="gml:OwnershipAttributeGroup"/>
      <attributeGroup ref="gml:AssociationAttributeGroup"/>
    </restriction>
  </complexContent>
</complexType>
