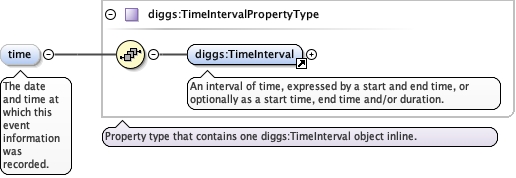

Element diggs:AbstractEventType / diggs:time
Namespace http://diggsml.org/schemas/3
Annotations

The date and time at which this event information was recorded.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:time xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:time>
Source

<element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
  <annotation>
    <documentation>The date and time at which this event information was recorded.</documentation>
  </annotation>
</element>

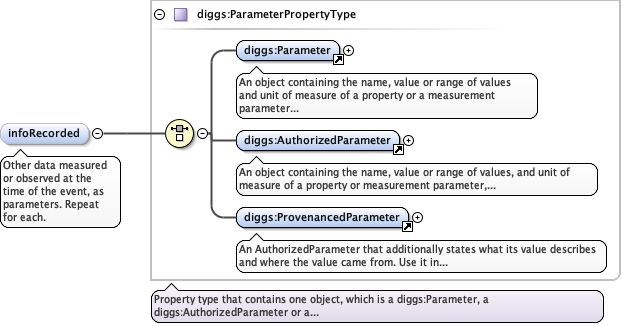

Element diggs:AbstractEventType / diggs:infoRecorded
Namespace http://diggsml.org/schemas/3
Annotations

Other data measured or observed at the time of the event, as
parameters. Repeat for each.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:infoRecorded xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:infoRecorded>
Source

<element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>Other data measured or observed at the time of the event, as parameters. Repeat for each.</documentation>
  </annotation>
</element>

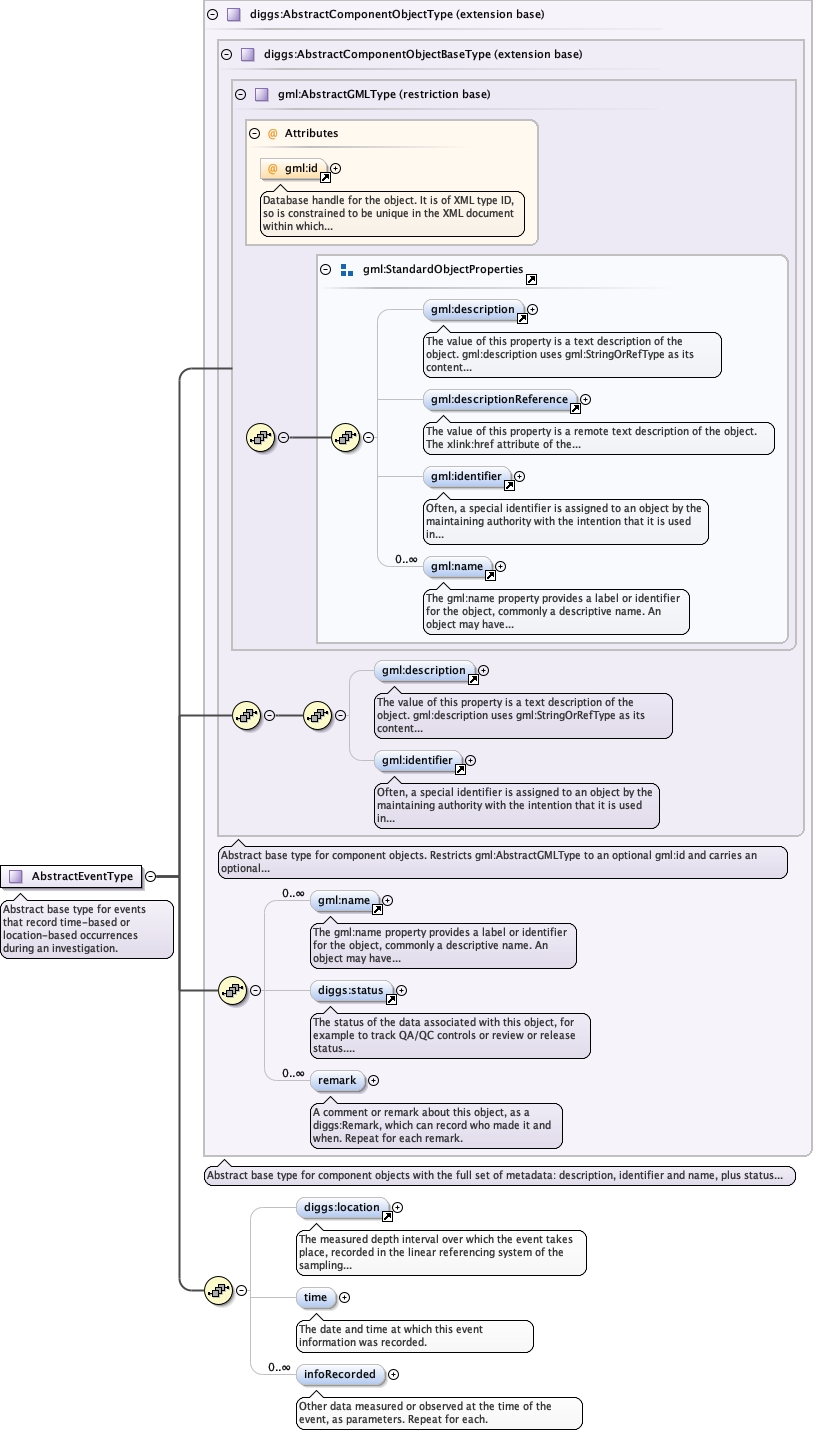

Complex Type diggs:AbstractEventType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for events that record time-based or location-based occurrences
during an investigation.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecorded
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:infoRecorded, diggs:location, diggs:remark, diggs:status, diggs:time, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractEventType" abstract="true">
  <annotation>
    <documentation>Abstract base type for events that record time-based or location-based occurrences during an investigation.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:location">
          <annotation>
            <documentation>The measured depth interval over which the event takes place, recorded in the linear referencing system of the sampling feature.</documentation>
          </annotation>
        </element>
        <element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
          <annotation>
            <documentation>The date and time at which this event information was recorded.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>Other data measured or observed at the time of the event, as parameters. Repeat for each.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
