Element diggs:AbstractComponentObjectType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this object, as a diggs:Remark, which can
record who made it and when. Repeat for each remark.

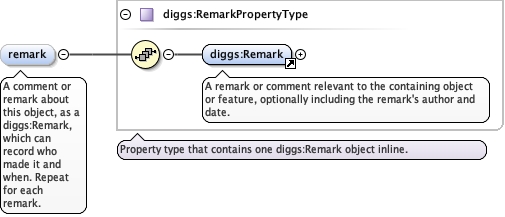

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A comment or remark about this object, as a diggs:Remark, which can record who made it and when. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractComponentObjectType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for component objects with the full set of metadata: description,
identifier and name, plus status and remark.

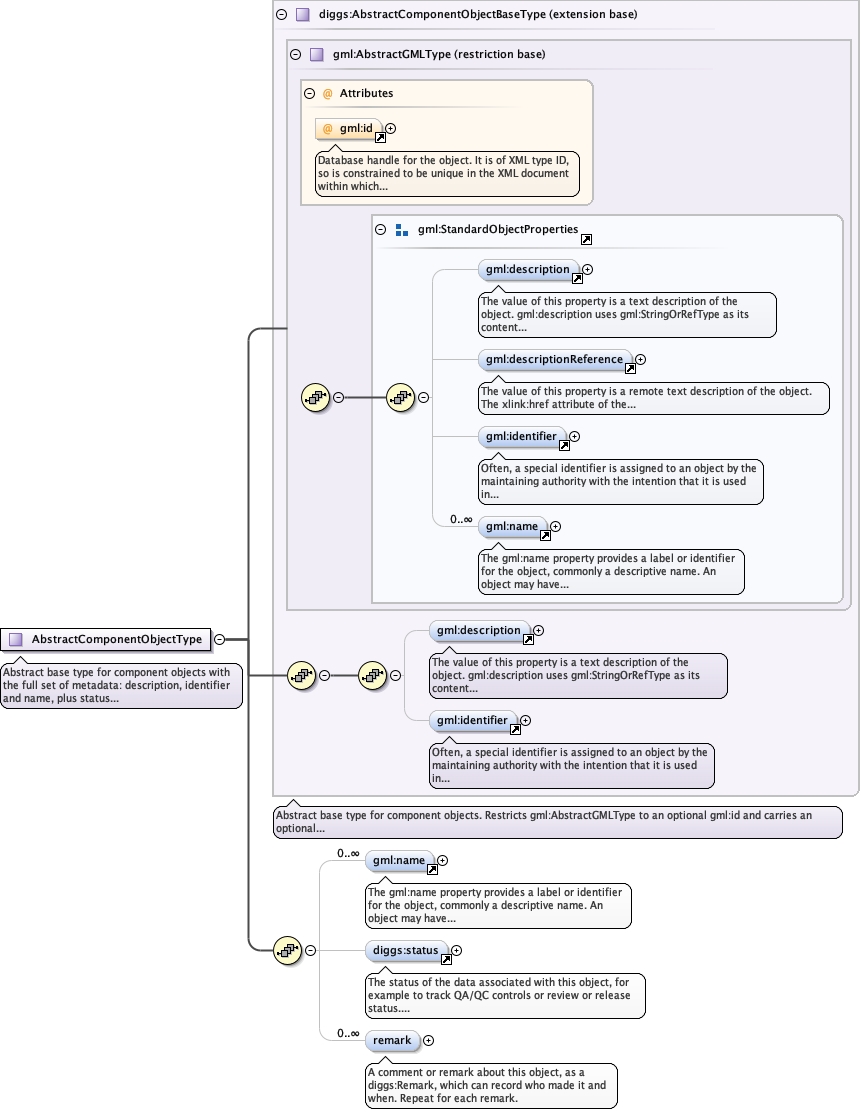

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remark
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractComponentObjectType" abstract="true">
  <annotation>
    <documentation>Abstract base type for component objects with the full set of metadata: description, identifier and name, plus status and remark.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:name"/>
        <element minOccurs="0" ref="diggs:status"/>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A comment or remark about this object, as a diggs:Remark, which can record who made it and when. Repeat for each remark.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
