Element diggs:DataPackageType / diggs:files
Namespace http://diggsml.org/schema-dev
Annotations

A property containing one or more GP_FieldDataFile
objexts

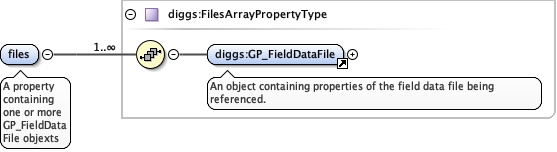

Diagram
DiagramGeophysics_xsd_Element_diggs_GP_FieldDataFile.tmp#GP_FieldDataFileGeophysics_xsd_Complex_Type_diggs_FilesArrayPropertyType.tmp#FilesArrayPropertyType
Type diggs:FilesArrayPropertyType
Properties
content complex
Model
Children diggs:GP_FieldDataFile
Instance

<diggs:files xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GP_FieldDataFile gml:id="" xml:lang="">{1,1}</diggs:GP_FieldDataFile>
</diggs:files>
Source

<element name="files" type="diggs:FilesArrayPropertyType">
  <annotation>
    <documentation>A property containing one or more GP_FieldDataFile objexts</documentation>
  </annotation>
</element>
Complex Type diggs:DataPackageType
Namespace http://diggsml.org/schema-dev

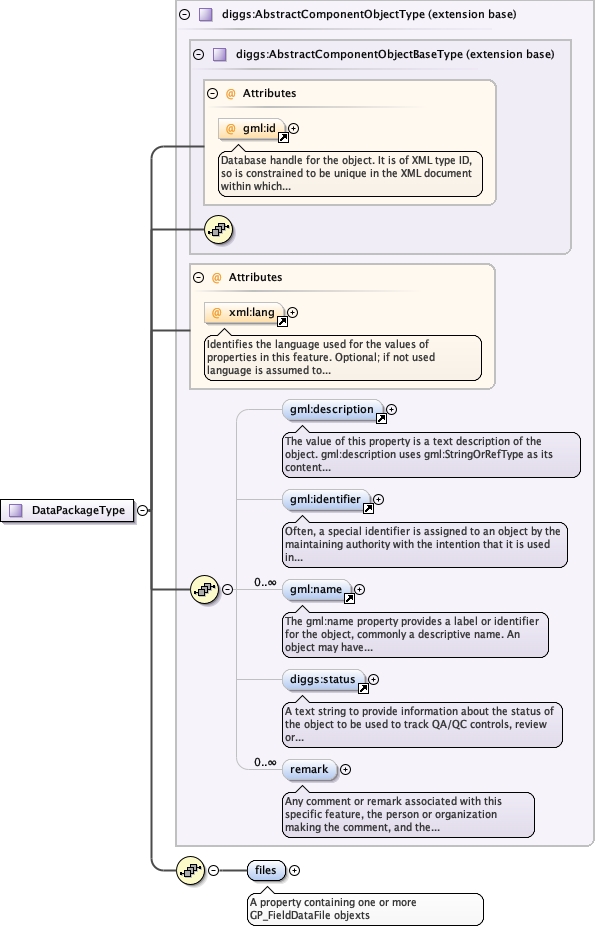

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeGeophysics_xsd_Complex_Type_diggs_DataPackageType.tmp#DataPackageType_files
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Model
Children diggs:files, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DataPackageType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element name="files" type="diggs:FilesArrayPropertyType">
          <annotation>
            <documentation>A property containing one or more GP_FieldDataFile objexts</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
