Element diggs:LimitType / diggs:constraint
Namespace http://diggsml.org/schemas/3
Annotations

A condition under which the limit applies. No DIGGS-authored
dictionary currently exists for this element.

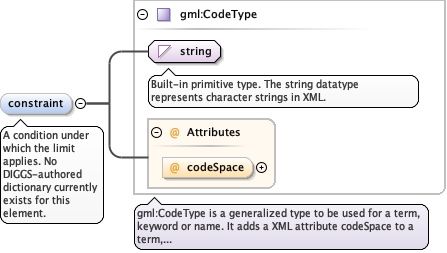

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="gml:CodeType">
  <annotation>
    <documentation>A condition under which the limit applies. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>
Element diggs:LimitType / diggs:limitType
Namespace http://diggsml.org/schemas/3
Annotations

The type of limit reported, for example a detection or
quantification limit. Values come from the enumerated list, or
"Other: xx", where xx is a user-defined term whose meaning differs
from every listed value (not a synonym of one).

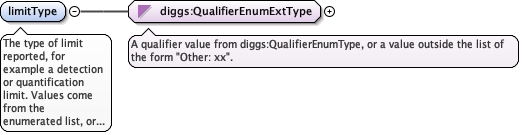

Diagram
DiagramCommon_xsd_Simple_Type_diggs_QualifierEnumExtType.tmp#QualifierEnumExtType
Type diggs:QualifierEnumExtType
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="1" name="limitType" type="diggs:QualifierEnumExtType">
  <annotation>
    <documentation>The type of limit reported, for example a detection or quantification limit. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>
Element diggs:LimitType / diggs:value
Namespace http://diggsml.org/schemas/3
Annotations

The value of the limit.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="1" name="value" type="string">
  <annotation>
    <documentation>The value of the limit.</documentation>
  </annotation>
</element>
Element diggs:LimitType / diggs:outOfLimitValue
Namespace http://diggsml.org/schemas/3
Annotations

The value reported to signify that a result is out of the allowable
limit range.
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="outOfLimitValue" type="string">
  <annotation>
    <documentation>The value reported to signify that a result is out of the allowable limit range.</documentation>
  </annotation>
</element>
Complex Type diggs:LimitType
Namespace http://diggsml.org/schemas/3

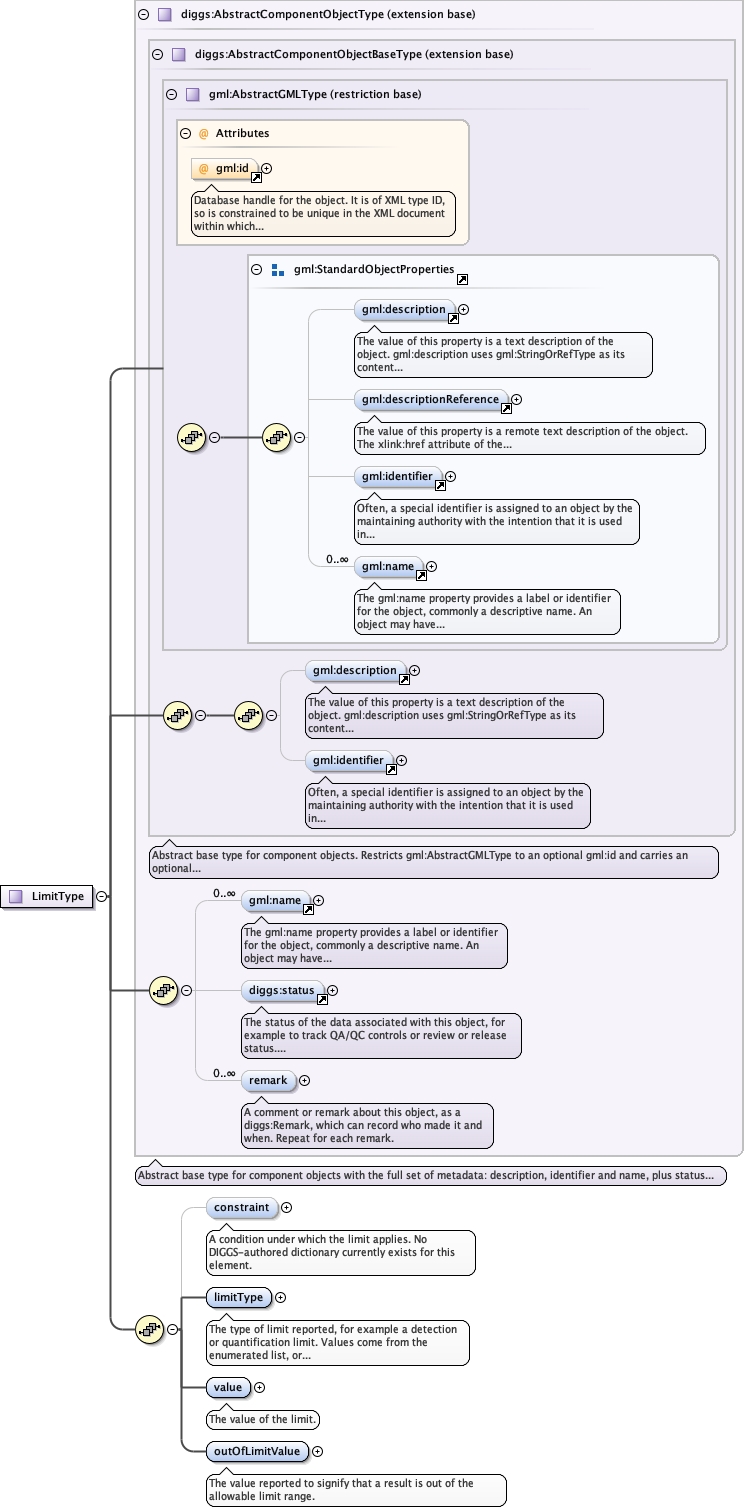

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_constraintCommon_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_limitTypeCommon_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_valueCommon_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_outOfLimitValue
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Element diggs:Limit
Model
Children diggs:constraint, diggs:limitType, diggs:outOfLimitValue, diggs:remark, diggs:status, diggs:value, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LimitType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="gml:CodeType">
          <annotation>
            <documentation>A condition under which the limit applies. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="limitType" type="diggs:QualifierEnumExtType">
          <annotation>
            <documentation>The type of limit reported, for example a detection or quantification limit. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="value" type="string">
          <annotation>
            <documentation>The value of the limit.</documentation>
          </annotation>
        </element>
        <element name="outOfLimitValue" type="string">
          <annotation>
            <documentation>The value reported to signify that a result is out of the allowable limit range.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
