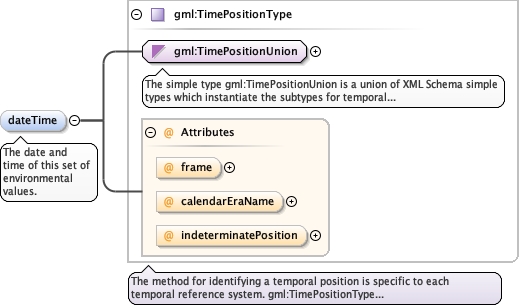

Element diggs:EnvironmentType / diggs:dateTime
Namespace http://diggsml.org/schemas/3
Annotations

The date and time of this set of environmental values.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="dateTime" type="gml:TimePositionType">
  <annotation>
    <documentation>The date and time of this set of environmental values.</documentation>
  </annotation>
</element>

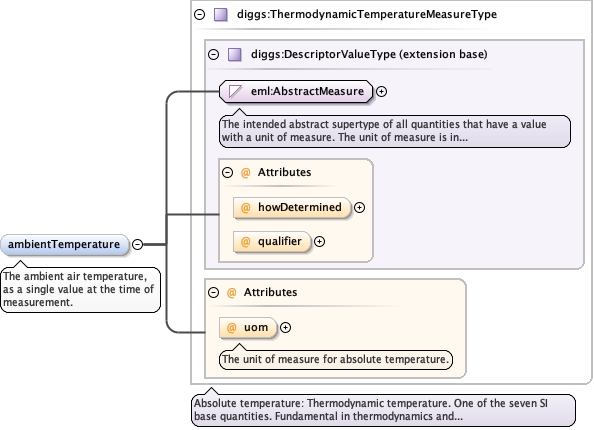

Element diggs:EnvironmentType / diggs:ambientTemperature
Namespace http://diggsml.org/schemas/3
Annotations

The ambient air temperature, as a single value at the time of
measurement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType
Type diggs:ThermodynamicTemperatureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Source

<element name="ambientTemperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The ambient air temperature, as a single value at the time of measurement.</documentation>
  </annotation>
</element>

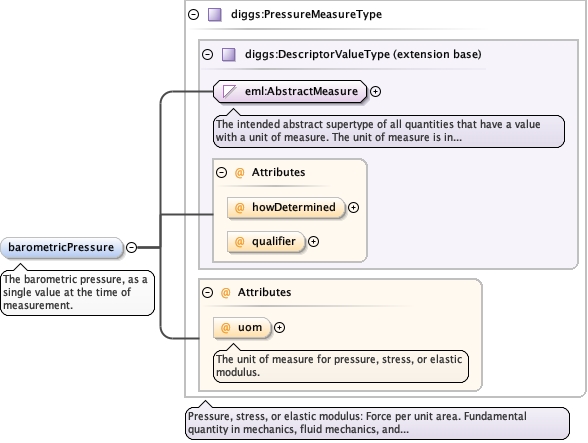

Element diggs:EnvironmentType / diggs:barometricPressure
Namespace http://diggsml.org/schemas/3
Annotations

The barometric pressure, as a single value at the time of
measurement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="barometricPressure" type="diggs:PressureMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The barometric pressure, as a single value at the time of measurement.</documentation>
  </annotation>
</element>

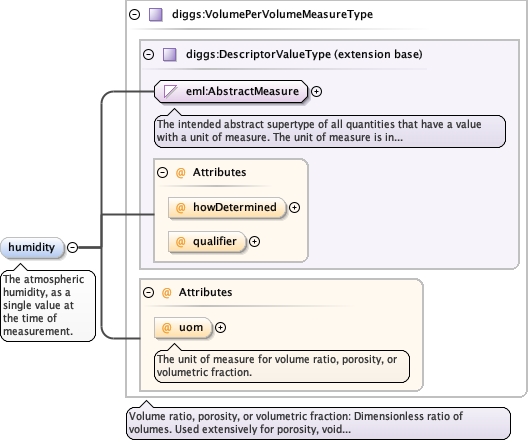

Element diggs:EnvironmentType / diggs:humidity
Namespace http://diggsml.org/schemas/3
Annotations

The atmospheric humidity, as a single value at the time of
measurement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element name="humidity" type="diggs:VolumePerVolumeMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The atmospheric humidity, as a single value at the time of measurement.</documentation>
  </annotation>
</element>

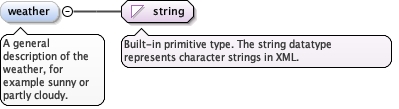

Element diggs:EnvironmentType / diggs:weather
Namespace http://diggsml.org/schemas/3
Annotations

A general description of the weather, for example sunny or partly
cloudy.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="weather" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A general description of the weather, for example sunny or partly cloudy.</documentation>
  </annotation>
</element>

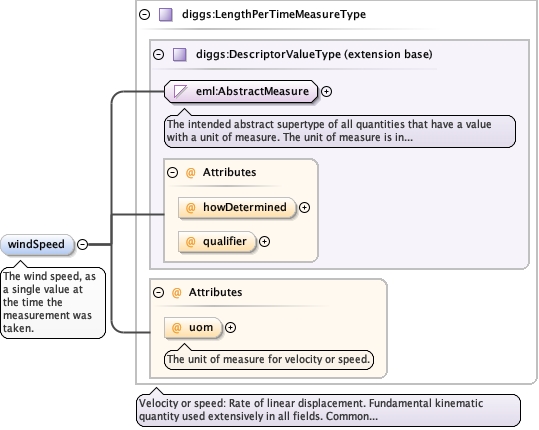

Element diggs:EnvironmentType / diggs:windSpeed
Namespace http://diggsml.org/schemas/3
Annotations

The wind speed, as a single value at the time the measurement was
taken.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthPerTimeUomEnumType optional
The unit of measure for velocity or speed.
Source

<element name="windSpeed" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The wind speed, as a single value at the time the measurement was taken.</documentation>
  </annotation>
</element>

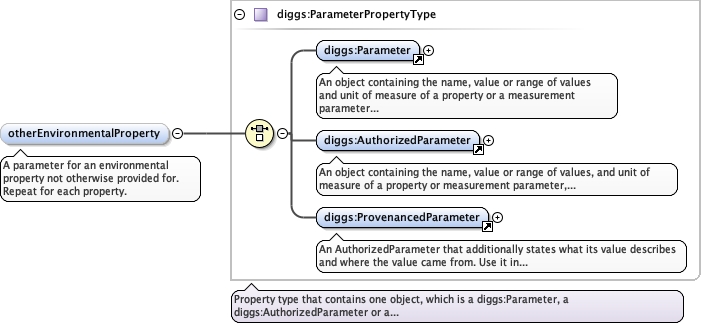

Element diggs:EnvironmentType / diggs:otherEnvironmentalProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for an environmental property not otherwise provided
for. Repeat for each property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherEnvironmentalProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherEnvironmentalProperty>
Source

<element minOccurs="0" name="otherEnvironmentalProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A parameter for an environmental property not otherwise provided for. Repeat for each property.</documentation>
  </annotation>
</element>

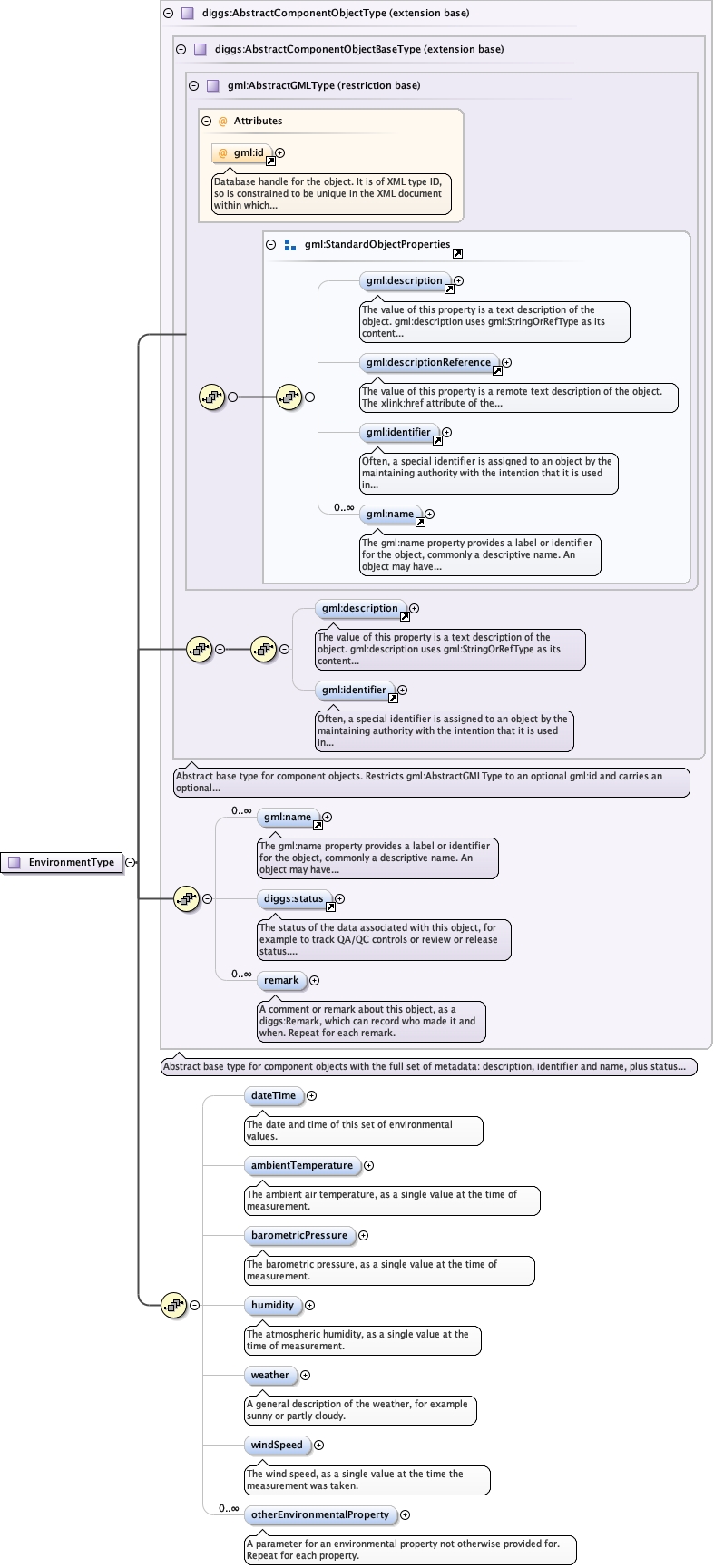

Complex Type diggs:EnvironmentType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_dateTimeCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_ambientTemperatureCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_barometricPressureCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_humidityCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_weatherCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_windSpeedCommon_xsd_Complex_Type_diggs_EnvironmentType.tmp#EnvironmentType_otherEnvironmentalProperty
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Model
Children diggs:ambientTemperature, diggs:barometricPressure, diggs:dateTime, diggs:humidity, diggs:otherEnvironmentalProperty, diggs:remark, diggs:status, diggs:weather, diggs:windSpeed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="EnvironmentType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" type="gml:TimePositionType">
          <annotation>
            <documentation>The date and time of this set of environmental values.</documentation>
          </annotation>
        </element>
        <element name="ambientTemperature" type="diggs:ThermodynamicTemperatureMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The ambient air temperature, as a single value at the time of measurement.</documentation>
          </annotation>
        </element>
        <element name="barometricPressure" type="diggs:PressureMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The barometric pressure, as a single value at the time of measurement.</documentation>
          </annotation>
        </element>
        <element name="humidity" type="diggs:VolumePerVolumeMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The atmospheric humidity, as a single value at the time of measurement.</documentation>
          </annotation>
        </element>
        <element name="weather" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A general description of the weather, for example sunny or partly cloudy.</documentation>
          </annotation>
        </element>
        <element name="windSpeed" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The wind speed, as a single value at the time the measurement was taken.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherEnvironmentalProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A parameter for an environmental property not otherwise provided for. Repeat for each property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
