Element diggs:ComponentObjectNoDescriptionType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this object, as a diggs:Remark. Repeat
for each remark.

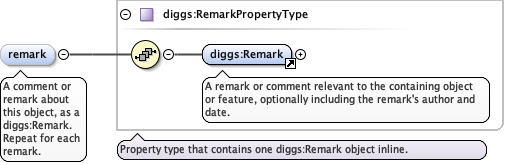

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
  <annotation>
    <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:ComponentObjectNoDescriptionType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for component objects without description or name: retains only
identifier, status and remark. Used where the description is managed externally or
is not needed.

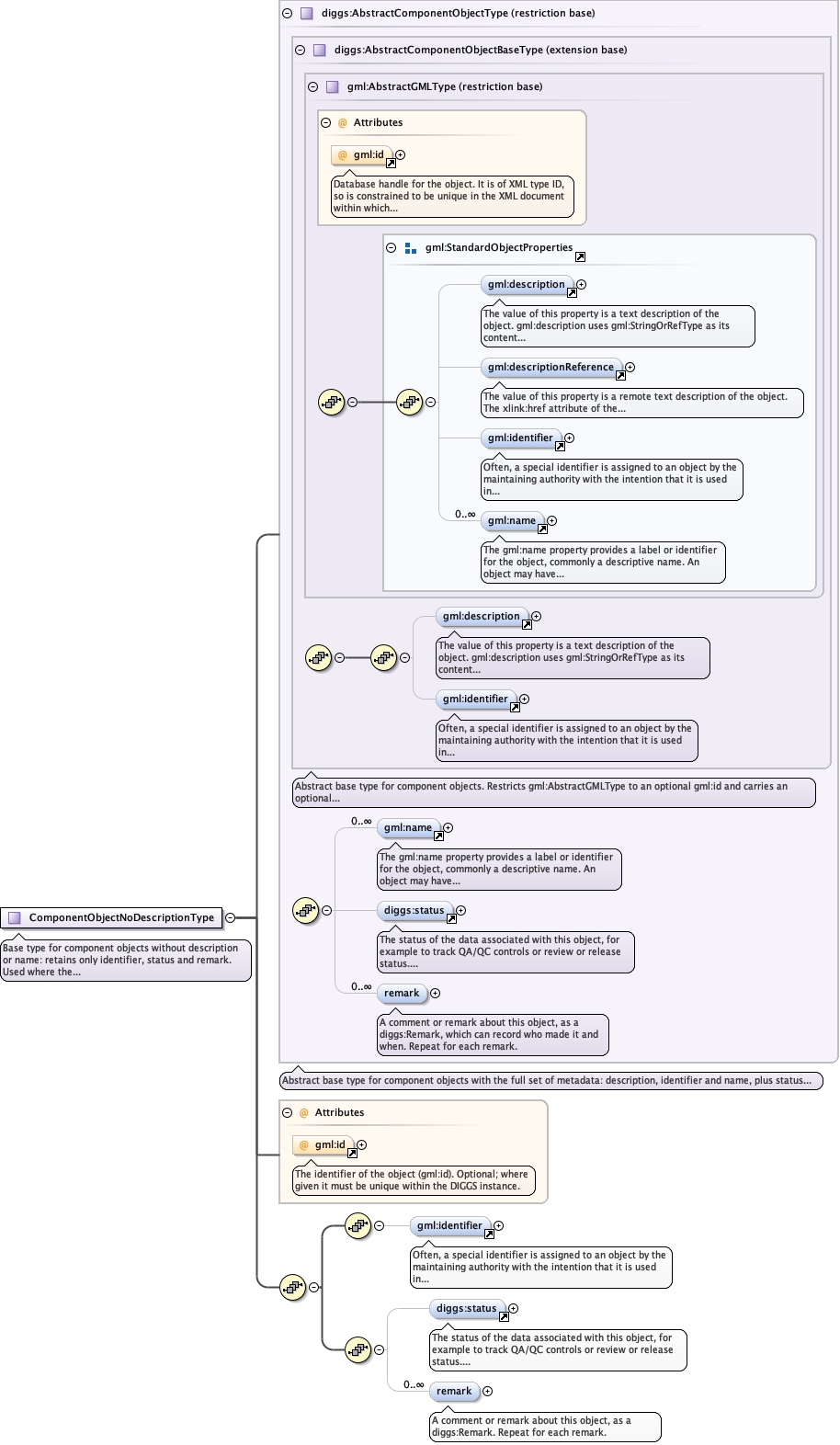

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionType_remark
Type restriction of diggs:AbstractComponentObjectType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:remark, diggs:status, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ComponentObjectNoDescriptionType" mixed="false">
  <annotation>
    <documentation>Base type for component objects without description or name: retains only identifier, status and remark. Used where the description is managed externally or is not needed.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractComponentObjectType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element minOccurs="0" ref="diggs:status"/>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
      <attribute ref="gml:id" use="optional">
        <annotation>
          <documentation>The identifier of the object (gml:id). Optional; where given it must be unique within the DIGGS instance.</documentation>
        </annotation>
      </attribute>
    </restriction>
  </complexContent>
</complexType>
