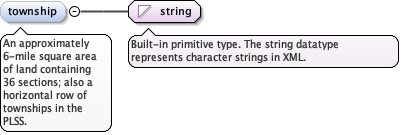

Element diggs:PlssType / diggs:township
Namespace http://diggsml.org/schemas/3
Annotations

An approximately 6-mile square area of land containing 36 sections;
also a horizontal row of townships in the PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="township" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>An approximately 6-mile square area of land containing 36 sections; also a horizontal row of townships in the PLSS.</documentation>
  </annotation>
</element>
Element diggs:PlssType / diggs:range
Namespace http://diggsml.org/schemas/3
Annotations

A vertical column of townships in the PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="range" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A vertical column of townships in the PLSS.</documentation>
  </annotation>
</element>

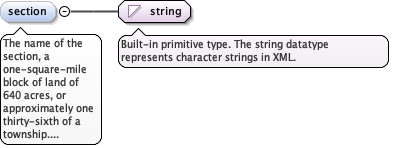

Element diggs:PlssType / diggs:section
Namespace http://diggsml.org/schemas/3
Annotations

The name of the section, a one-square-mile block of land of 640
acres, or approximately one thirty-sixth of a township. Because of
the curvature of the Earth, sections can be slightly smaller than
one square mile.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="section" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The name of the section, a one-square-mile block of land of 640 acres, or approximately one thirty-sixth of a township. Because of the curvature of the Earth, sections can be slightly smaller than one square mile.</documentation>
  </annotation>
</element>

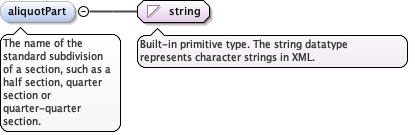

Element diggs:PlssType / diggs:aliquotPart
Namespace http://diggsml.org/schemas/3
Annotations

The name of the standard subdivision of a section, such as a half
section, quarter section or quarter-quarter section.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="aliquotPart" type="string">
  <annotation>
    <documentation>The name of the standard subdivision of a section, such as a half section, quarter section or quarter-quarter section.</documentation>
  </annotation>
</element>

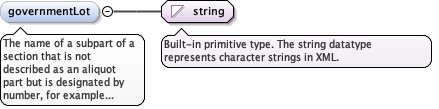

Element diggs:PlssType / diggs:governmentLot
Namespace http://diggsml.org/schemas/3
Annotations

The name of a subpart of a section that is not described as an
aliquot part but is designated by number, for example Lot 3. A lot
can be regular or irregular in shape, and its acreage can differ
from that of regular aliquot parts. These lots frequently border
water areas excluded from the PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="governmentLot" type="string">
  <annotation>
    <documentation>The name of a subpart of a section that is not described as an aliquot part but is designated by number, for example Lot 3. A lot can be regular or irregular in shape, and its acreage can differ from that of regular aliquot parts. These lots frequently border water areas excluded from the PLSS.</documentation>
  </annotation>
</element>
Element diggs:PlssType / diggs:baseAndMeridian
Namespace http://diggsml.org/schemas/3
Annotations

The name of the point chosen as the starting point for all
sectionalized land within a given area, located at the intersection
of a base line (a parallel of latitude, or approximately so) and a
principal meridian.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="baseAndMeridian" type="string">
  <annotation>
    <documentation>The name of the point chosen as the starting point for all sectionalized land within a given area, located at the intersection of a base line (a parallel of latitude, or approximately so) and a principal meridian.</documentation>
  </annotation>
</element>

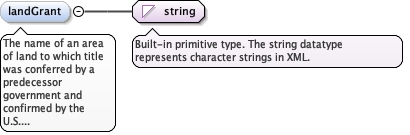

Element diggs:PlssType / diggs:landGrant
Namespace http://diggsml.org/schemas/3
Annotations

The name of an area of land to which title was conferred by a
predecessor government and confirmed by the U.S. Government after
the territory was acquired by the United States. These lands were
never part of the original public domain and were not subject to
subdivision by the PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="landGrant" type="string">
  <annotation>
    <documentation>The name of an area of land to which title was conferred by a predecessor government and confirmed by the U.S. Government after the territory was acquired by the United States. These lands were never part of the original public domain and were not subject to subdivision by the PLSS.</documentation>
  </annotation>
</element>

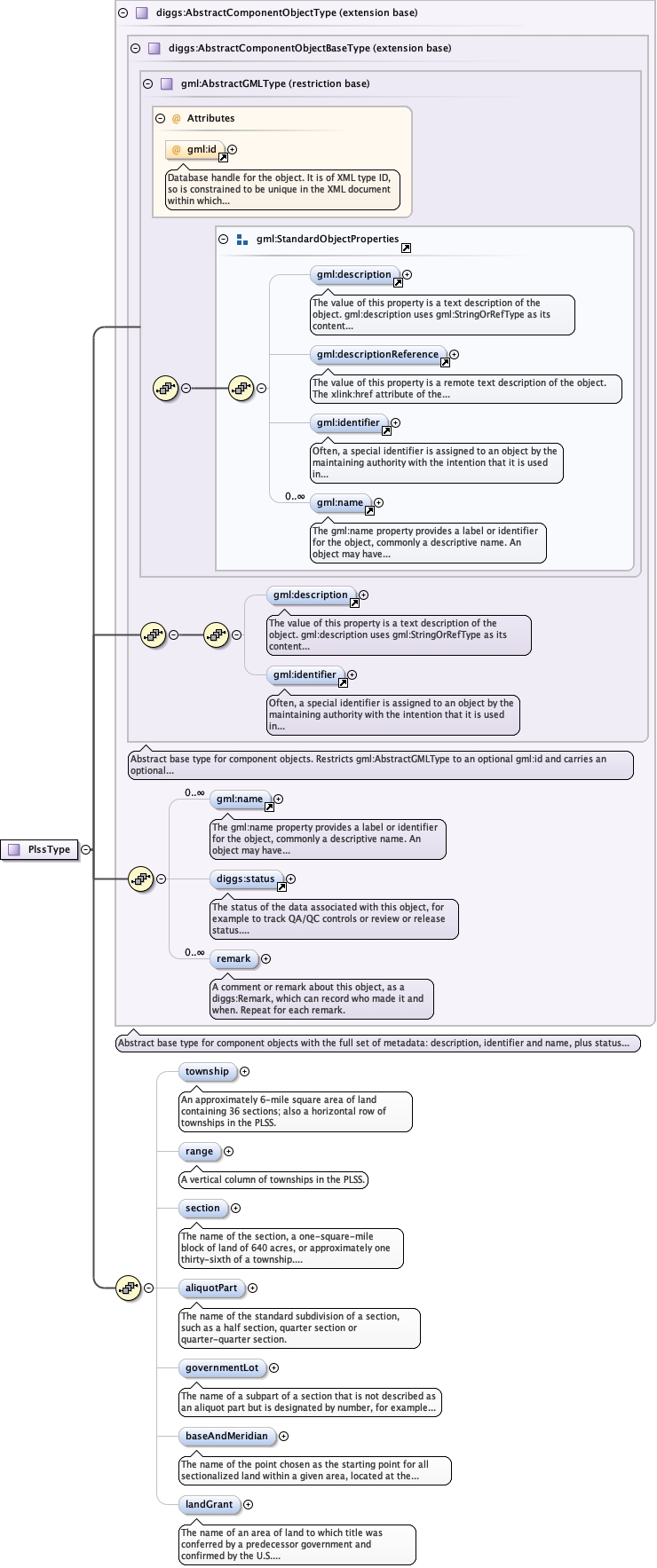

Complex Type diggs:PlssType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_townshipCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_rangeCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_sectionCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_aliquotPartCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_governmentLotCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_baseAndMeridianCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_landGrant
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Element diggs:PLSS
Model
Children diggs:aliquotPart, diggs:baseAndMeridian, diggs:governmentLot, diggs:landGrant, diggs:range, diggs:remark, diggs:section, diggs:status, diggs:township, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PlssType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element name="township" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>An approximately 6-mile square area of land containing 36 sections; also a horizontal row of townships in the PLSS.</documentation>
          </annotation>
        </element>
        <element name="range" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A vertical column of townships in the PLSS.</documentation>
          </annotation>
        </element>
        <element name="section" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The name of the section, a one-square-mile block of land of 640 acres, or approximately one thirty-sixth of a township. Because of the curvature of the Earth, sections can be slightly smaller than one square mile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="aliquotPart" type="string">
          <annotation>
            <documentation>The name of the standard subdivision of a section, such as a half section, quarter section or quarter-quarter section.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="governmentLot" type="string">
          <annotation>
            <documentation>The name of a subpart of a section that is not described as an aliquot part but is designated by number, for example Lot 3. A lot can be regular or irregular in shape, and its acreage can differ from that of regular aliquot parts. These lots frequently border water areas excluded from the PLSS.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="baseAndMeridian" type="string">
          <annotation>
            <documentation>The name of the point chosen as the starting point for all sectionalized land within a given area, located at the intersection of a base line (a parallel of latitude, or approximately so) and a principal meridian.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="landGrant" type="string">
          <annotation>
            <documentation>The name of an area of land to which title was conferred by a predecessor government and confirmed by the U.S. Government after the territory was acquired by the United States. These lands were never part of the original public domain and were not subject to subdivision by the PLSS.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
