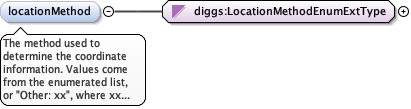

Element diggs:LocationUncertaintyType / diggs:locationMethod
Namespace http://diggsml.org/schemas/3
Annotations

The method used to determine the coordinate information. Values come
from the enumerated list, or "Other: xx", where xx is a user-defined
term whose meaning differs from every listed value (not a synonym of
one).
Diagram
DiagramCommon_xsd_Simple_Type_diggs_LocationMethodEnumExtType.tmp#LocationMethodEnumExtType
Type diggs:LocationMethodEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="locationMethod" type="diggs:LocationMethodEnumExtType">
  <annotation>
    <documentation>The method used to determine the coordinate information. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>

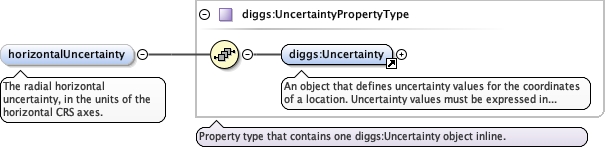

Element diggs:LocationUncertaintyType / diggs:horizontalUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The radial horizontal uncertainty, in the units of the horizontal
CRS axes.
Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
nillable true
Model
Children diggs:Uncertainty
Instance

<diggs:horizontalUncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:horizontalUncertainty>
Source

<element minOccurs="0" name="horizontalUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
  <annotation>
    <documentation>The radial horizontal uncertainty, in the units of the horizontal CRS axes.</documentation>
  </annotation>
</element>
Element diggs:LocationUncertaintyType / diggs:verticalUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The vertical uncertainty, in the units of the vertical CRS axis.
Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
nillable true
Model
Children diggs:Uncertainty
Instance

<diggs:verticalUncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:verticalUncertainty>
Source

<element minOccurs="0" name="verticalUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
  <annotation>
    <documentation>The vertical uncertainty, in the units of the vertical CRS axis.</documentation>
  </annotation>
</element>

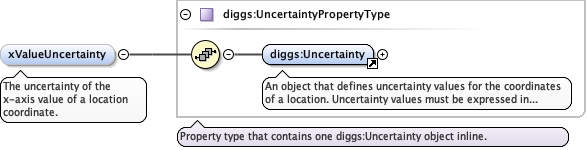

Element diggs:LocationUncertaintyType / diggs:xValueUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The uncertainty of the x-axis value of a location coordinate.
Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
nillable true
Model
Children diggs:Uncertainty
Instance

<diggs:xValueUncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:xValueUncertainty>
Source

<element minOccurs="0" name="xValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
  <annotation>
    <documentation>The uncertainty of the x-axis value of a location coordinate.</documentation>
  </annotation>
</element>
Element diggs:LocationUncertaintyType / diggs:yValueUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The uncertainty of the y-axis value of a location coordinate.
Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
nillable true
Model
Children diggs:Uncertainty
Instance

<diggs:yValueUncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:yValueUncertainty>
Source

<element minOccurs="0" name="yValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
  <annotation>
    <documentation>The uncertainty of the y-axis value of a location coordinate.</documentation>
  </annotation>
</element>

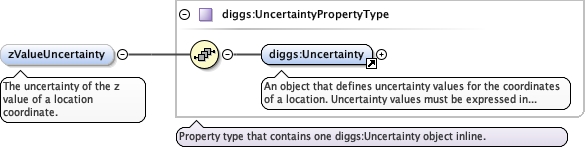

Element diggs:LocationUncertaintyType / diggs:zValueUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The uncertainty of the z value of a location coordinate.
Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
nillable true
Model
Children diggs:Uncertainty
Instance

<diggs:zValueUncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:zValueUncertainty>
Source

<element minOccurs="0" name="zValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
  <annotation>
    <documentation>The uncertainty of the z value of a location coordinate.</documentation>
  </annotation>
</element>

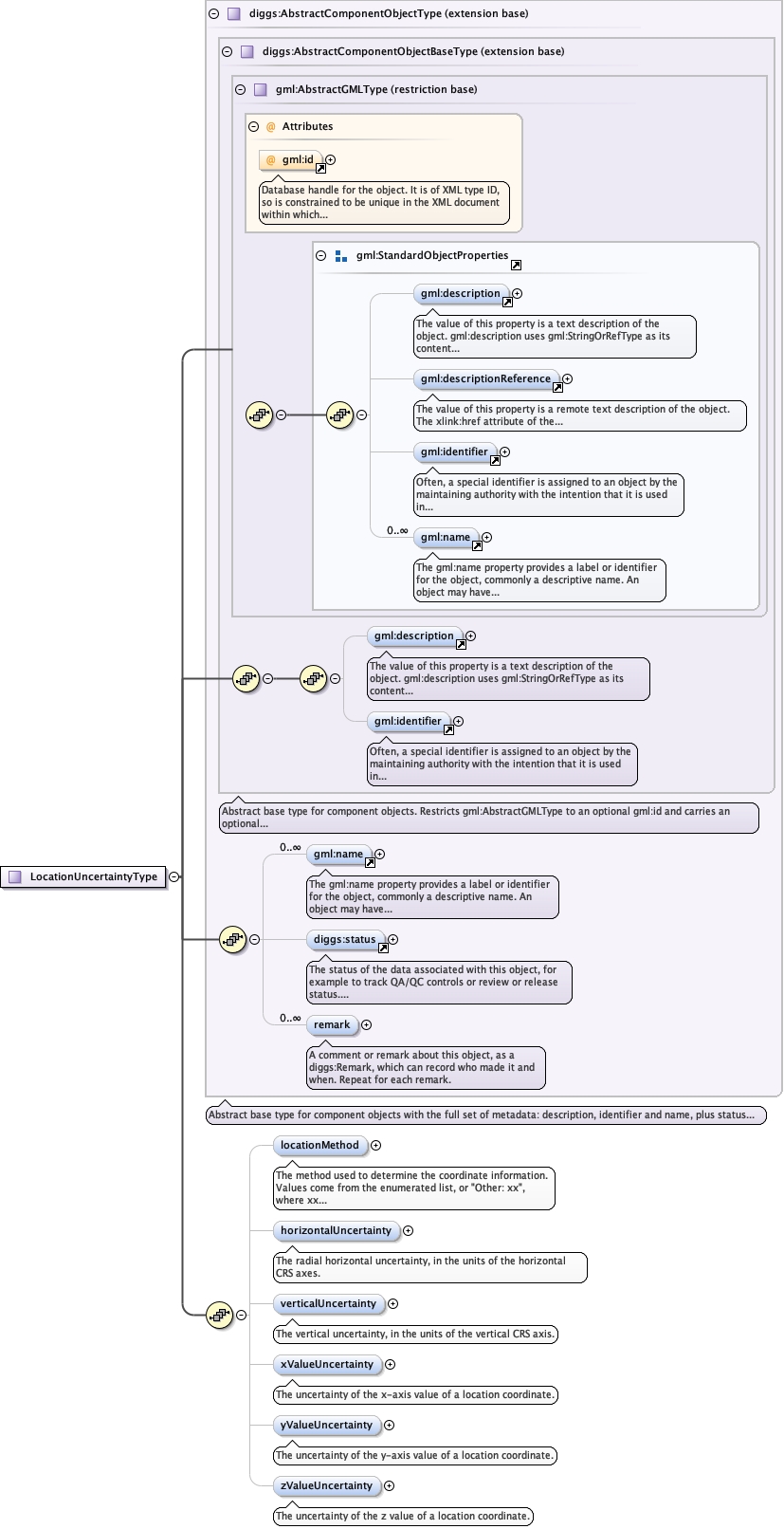

Complex Type diggs:LocationUncertaintyType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_locationMethodCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_horizontalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_verticalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_xValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_yValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_zValueUncertainty
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Model
Children diggs:horizontalUncertainty, diggs:locationMethod, diggs:remark, diggs:status, diggs:verticalUncertainty, diggs:xValueUncertainty, diggs:yValueUncertainty, diggs:zValueUncertainty, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LocationUncertaintyType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element minOccurs="0" name="locationMethod" type="diggs:LocationMethodEnumExtType">
          <annotation>
            <documentation>The method used to determine the coordinate information. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="horizontalUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
          <annotation>
            <documentation>The radial horizontal uncertainty, in the units of the horizontal CRS axes.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
          <annotation>
            <documentation>The vertical uncertainty, in the units of the vertical CRS axis.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="xValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
          <annotation>
            <documentation>The uncertainty of the x-axis value of a location coordinate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="yValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
          <annotation>
            <documentation>The uncertainty of the y-axis value of a location coordinate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="zValueUncertainty" type="diggs:UncertaintyPropertyType" nillable="true">
          <annotation>
            <documentation>The uncertainty of the z value of a location coordinate.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
